Mustmove Musthane

Helicopter landing mats, Temporary Access Road Trackways, Beach Access Mats

Mobile Landing Zone Helipad Lighting Musthane Mustmove 925 001

Description

Mustmove® is the brand of Musthane dedicated to tactical mobility equipment. This brand is at the heart of our Design to Mobility® by addressing exclusively peacekeeping or humanitarian operations.

The base products for the tactical mobility offered by Musthane are portable track-ways and shelter: you can access quite everywhere thanks to our equipment and you will have a shelter to operate professionally. For example, our temporary trackway and access road provide access to all types of vehicles rolling over the land without the risk of getting bogged down, our helipads landing mats offer airstrips for your helicopters and your vehicle Recovery Mats from Sand or Mud are innovative means of recovering vehicles from mud or sand.

Mustmove® is a fast-growing and extended skills brand where our Engineering Department designs and implements the turn-key solution according to your requirements: field hospitals, equipped camp, mobile CBRN decontamination units, COLPRO, mobility mat dispensers, aircraft recovery mats…


Musthane
53 rue de la République
59780 Willems, France
Phone: + 33 (0)3 28 37 00 40
Fax: + 33 (0)3 28 37 00 49
Email: This email address is being protected from spambots. You need JavaScript enabled to view it.

Technical Data

Helicopter Landing Mats
Mobile Landing Zone Helipad Mats Musthane Mustmove defence military army 925 002
Brownout and FOD (foreign object debris or damage) increase highly the maintenance costs of helicopters by affecting the rotor wings and the engines. Moreover, a significant number of helicopter crashes occurred in forward area operations where helicopters had to land on non-prepared grounds.

When the time is lacking or the mission is for an unknown period, you will not have the appropriate infrastructure or a proper landing pad. In this case, you need a mobile helicopter landing mat that is compact, lightweight and quick to deploy.

Musthane offers you a high-performance combat-proven helicopter landing mat kit with the quickest and safest anchoring system available on the market.

Musthane Helicopter Landing Mats are innovative helicopter landing areas facilitating a quick installation of a safe landing zone for any type of Helicopter or rotary wing UAV’s. It is a heliport or a mobile helistation easy to set up.

Our Helicopter Landing Mats offer :
• Protection against FODs
• Protection against Brownout
• A Ground Point of Reference
• Appropriate area operating with GSE
• Helicopter maintenance cost reduction

MusthaneHELIPAD is made of a double-ply rubber-coated fabrics reinforced with composite rods.

Quick installation
The installation time of our Helicopter Landing Mat depends on many factors.
The average time for a 20 m x 20 m HELIPAD is estimated at 3 hours (Installation realized by 4 people with 3 m x 10 m sections).

More safety
High visibility with the cross markings positioned every 5 meters.
Musthane proposes Night Detection Beacons (Mustmove® NDB) .
Our Soft Ground & Sand Anchoring system offers really safe and quick installation anchors.

Ultra compact
A Full Kit of 20m x 20m Helicopter Landing MAT (anchors included) is only:
3m x 1,2m x 1,2m & 1000 kg so you can put 8 helicopter landing mats in one 20’’container

Musthane manufactures the sections on demand.

The dimension of the sections can be modified to meet your requirements (Time to deploy, Means of transportation…)

Patent pending

Advantages
• Compact : A Full Kit of 20m x 20m Helipad (anchors included) is only : 3m x 1,2m x 1,2m & 1000 kg
• Foldable (roll up) and Light Weight
• 100% Impermeable to dust and mud
• Anti-slidingrubbercoatedfabric
• Can berepaired
• Easy to remove& clean
• Higher life expectancy
• Sturdy—Perforation resistant
• Specific design possible (colors, sizes, markings…)

Mobile Landing Zone Helipad Mats Musthane Mustmove defence military army 925 001
Characteristics
Mobile Landing Zone Helipad Molded Composite Mats Musthane Mustmove whiteDimensions:

Musthane HELIPAD is made of a double ply rubber coated fabrics reinforced with composite rods.
Each Rack dimension is approx. 2930 x 1150 x 1140 mm. Racks are stackable
The standard kit is delivered with all necessary tools for the quick installation
 Sections of 2.9m x 10m are less than 60 Kg and have a 200mm Ø when rolled up
 Sections of 2.9m x 15m are less than 90 Kg and have a 250mm Ø when rolled up

Other dimensions are possible as per customer requirements.
a
Temporary Access Road Mats and Roadway
Back to top

Mobile Temporary access roadways Musthane Mustmove defence military army 200 001Mustmove® type SIM Temporary Access Road and trackway manufactured by Musthane can be used to create access paths in a variety of situations in just a few minutes.

They are used for a number of purposes, such as pedestrian access routes, access for people with reduced mobility or with a disability, roads where vehicles are likely to become bogged down, tent floors, helipads, aircraft rescue…

The Mustmove® type SIM Temporary Access Road and trackway are especially robust and have very long life spans. They are available in a variety of dimensions and their composition depends on the application for which they will be used.

They are an innovative ground improvement system developed to assist aircraft recovery operations They are made of a double ply rubber coated fabrics reinforced with composite rods.


Advantages:

MUSTmove® SIM exceeds the performances of metal or plastic mats with the folloMobile Temporary access roadways Musthane Mustmove defence military army 300 001wing advantages :

• Light Weight

• Resist perforation

• Non-slipping surface

• Rubbercoating:
- Best friction rate with tires
- Easier to remove
- Easier to clean

• Integrated removable stiffeners (40 GPa to 250GPa)

• Impermeable to dust and mud

• Customized at no extra cost (size and markings)

• Repairable (repair kit)

• Can be fitted to all existing reels & mat deployment systems.

Patent pending

Temporary Access Road Mats Roadways Musthane Mustmove defence military army 925 001
Characteristics

   SIM 25  SIM L
Use

Temporary Road for heavy vehicles

Aircraft recovery up to C130 or A380

Temporary road for lightweight vehicles

Tent floors

Pedestrian Access Way

Technical Data

Weight 8 to 10 KG / M²

Dimensions on demand

Delivered in boxes or on reels



Weight from 1.5 to 2.3 KG / M²

Dimensions on demand

Delivered in rolls deployable by 2 or 4 men or on automatic reels

Beach Access Solutions
Back to top

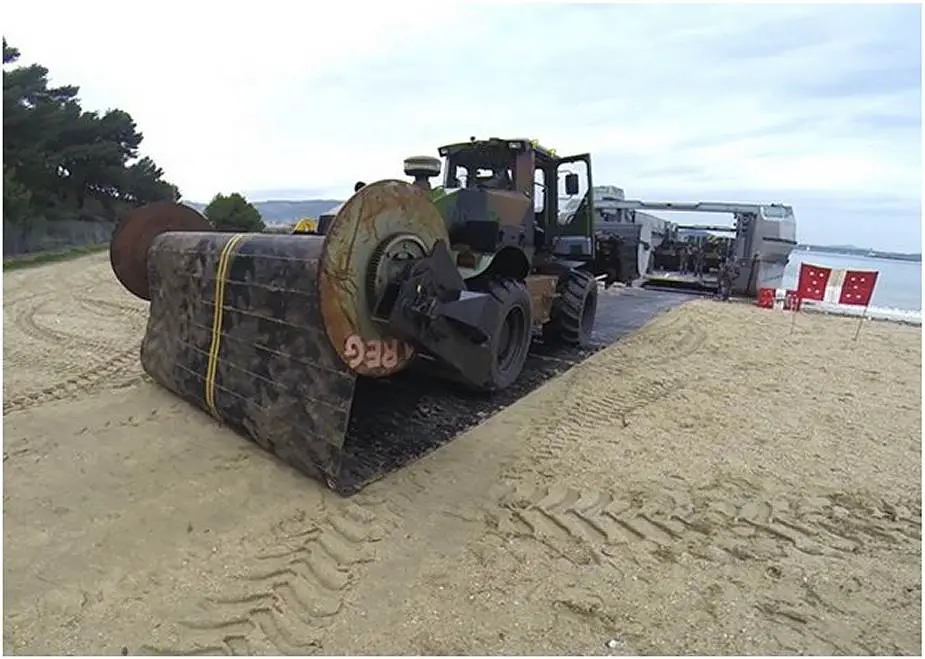

Mobile Beach Access Solutions Musthane Mustmove 925 001

Musthane designs and produces mats and trackways for quick access to the beach used by the armed forces in situations of landing by sea.

These areas are made from modules that are assembled on-site through an easy and quick interconnection system. For example, a Beach Access area of 20m x 5m can be deployed in less than 5 minutes using two people.

The Beach Access mats are made from the patented modules that are made of double-ply rubber-coated fabrics with composite reinforcements. Dimensions and lengths can be tailored to customer needs.

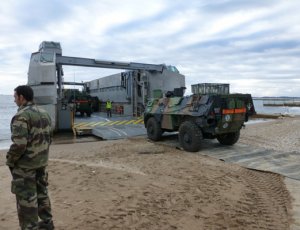

Advantages: Mobile Beach Access Solutions Musthane Mustmove 300 001

MUSTmove® Beach Access Mats exceeds the performances of metal or plastic mats with the following advantages :

• Does not float on water
• Impermeable to sand
• Foldable (Roll up) & lightweight
• Anti-sliding rubber coated surface
• Easy to clean &remove
• Perforation resistant
• Repairable
• Longer life expectancy
• Can be fitted to all existing reels and mat deployment systems
• Dimensions and marking on demand

Beach Access range can be supplied with a device enabling the deployment and an automatic withdrawal from a reel.

Patent pending

Vehicle Recovery Mats
Back to top
Mobile Vehicle Recovery Mats Musthane Mustmove defence military army 925 001
Mustmove® Vehicle Recovery Mats from Sand or Mud are innovative means of recovering vehicles from mud or sand.

Mobile DFP Vehicle Recovery Mats Musthane Mustmove defence military army 250 001Mustmove® Vehicle Recovery Mats from Sand or Mud are based on double-ply rubber-coated fabric reinforced with composite.

MUSTmove® Vehicle Recovery Mats from Sand or Mud are delivered in a kit composed of Two DFP standard mats, 4 anchors, one driving rod for anchors, one bag, and one user manual

Mobile Vehicle Recovery Mats Musthane Mustmove defence military army 925 002
Vehicle Recovery Mats from Sand or Mud provide the following benefits:
• Very compact when rolled up
• Easier to install
• Impermeable to mud & sand
• Anti-sliding surface pattern
• Easier to clean & remove
• Perforation resistant
• Repairable
• Longer life expectancy
Patent pending
Mobile DFP Vehicle Recovery Mats Musthane Mustmove defence military army 250 002
