Thunder autonomous attack rotorcraft (Anduril).

Technical Data

• Design

  Thunder has been engineered around a purpose-built tiltrotor configuration that combines the operational flexibility of a vertical takeoff and landing aircraft with the range and cruise efficiency of a fixed-wing platform. Rather than adapting an existing helicopter design for autonomous operations, Anduril selected a clean-sheet architecture specifically optimized for software-defined combat missions, allowing the aircraft to exploit the advantages of autonomous flight without the compromises associated with accommodating an onboard crew. The platform is derived from a dual-use airframe co-developed with Archer Aviation, drawing upon commercial electric VTOL technologies while incorporating structural, propulsion, and mission-system modifications required for military service.

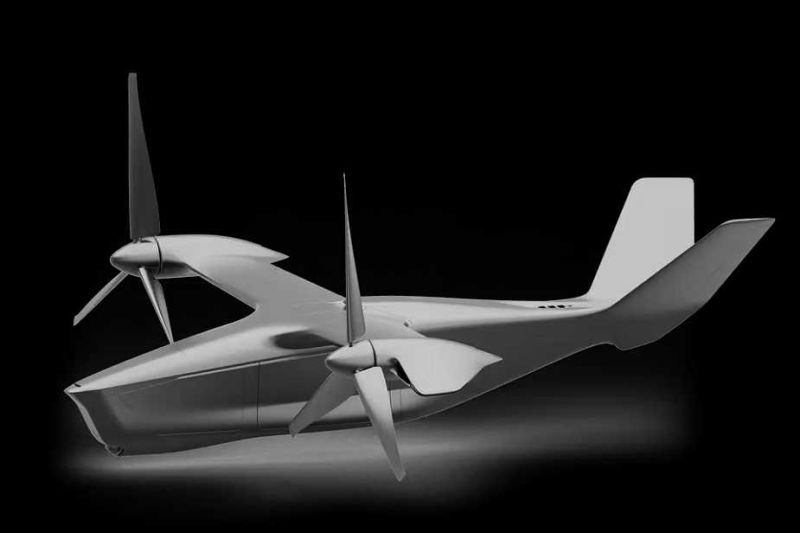

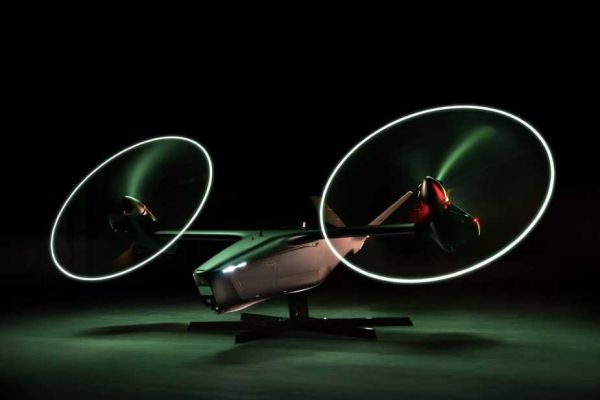

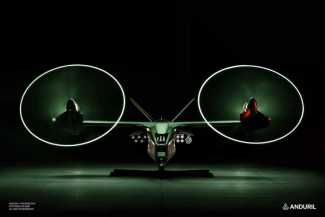

  The overall configuration is characterized by a high-mounted straight wing supporting two large tilting propulsion nacelles positioned at the wingtips. Each nacelle houses a three-bladed composite rotor that rotates through approximately ninety degrees, enabling the aircraft to transition seamlessly from helicopter-like vertical flight into efficient wing-borne cruise. This arrangement allows Thunder to operate independently of conventional runways while achieving the speed and endurance required for deep strike, armed reconnaissance, and escort missions across extended operational distances. By combining vertical lift with airplane-like cruise performance, the tiltrotor configuration overcomes many of the range limitations traditionally associated with rotary-wing aircraft and supports dispersed operations from austere forward locations.

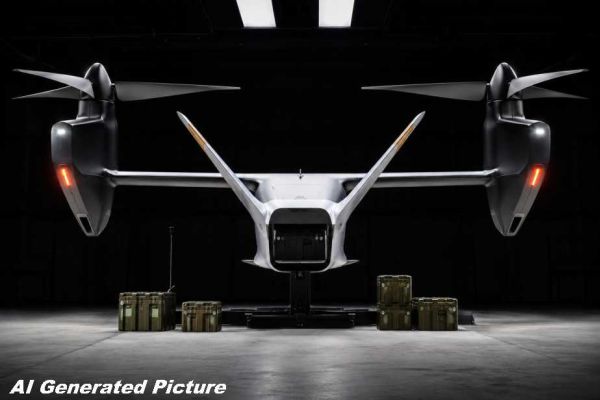

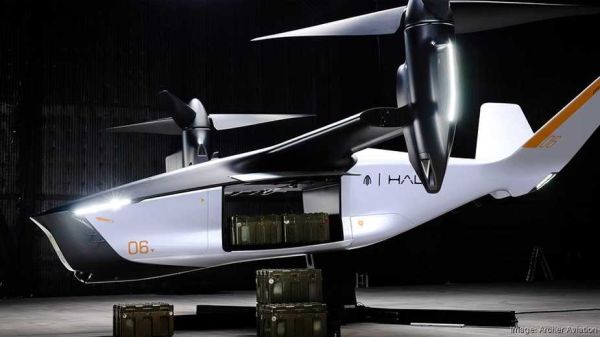

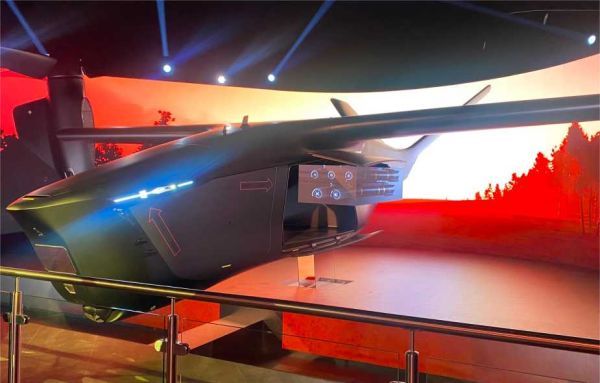

  The fuselage reflects the aircraft's autonomous design philosophy. Without the requirement for a cockpit or crew accommodations, the forward section is devoted primarily to mission systems, avionics, and sensor integration. Beneath the streamlined nose, a ventral sensor installation provides space for electro-optical mission equipment while maintaining an aerodynamically efficient external profile. The central fuselage incorporates a large modular payload bay accessed through wide side-opening doors, allowing mission modules, weapons racks, cargo pallets, or electronic warfare payloads to be installed or exchanged rapidly without structural modification. A second payload compartment integrated within the forward fuselage provides additional capacity for defensive effectors or specialized mission equipment, reinforcing the aircraft's role as a multi-mission platform capable of rapid reconfiguration.

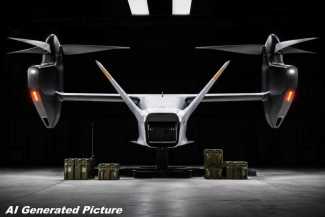

  The rear fuselage incorporates twin outward-canted vertical stabilizers connected by a horizontal stabilizer, providing directional stability during high-speed forward flight while minimizing aerodynamic interference with the rotor system. Fixed landing skids have been selected in place of retractable landing gear to reduce mechanical complexity, simplify maintenance, and improve reliability during expeditionary operations from unimproved landing zones. The airframe's external geometry emphasizes aerodynamic efficiency and maintainability rather than dedicated low-observable shaping, with survivability instead achieved through stand-off employment, autonomous maneuvering, reduced acoustic signature, and distributed operations in concert with crewed aircraft.

  Logistical deployability has also been incorporated into the aircraft's design from the earliest stages of development. According to Anduril, Thunder can be packaged within a standard ISO shipping container, allowing transportation by road, rail, sea, or military airlift without specialized handling equipment. This multimodal transport concept supports rapid global deployment while reducing dependence on dedicated aviation infrastructure and enabling autonomous combat aircraft to be dispersed rapidly across operational theaters.

• Armament

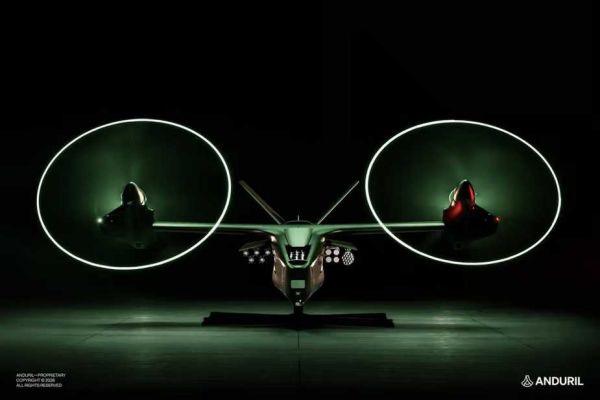

  Thunder has been conceived as a modular weapons carrier rather than a fixed-configuration attack aircraft, allowing operators to tailor its combat load to individual mission requirements through interchangeable internal payload modules. This approach reflects Anduril's broader concept of providing affordable combat mass by enabling a single autonomous platform to perform multiple operational roles without requiring extensive structural modifications or dedicated aircraft variants. The aircraft's internal payload architecture preserves aerodynamic efficiency while protecting sensitive stores from environmental exposure and reducing drag compared with externally mounted weapon stations.

  According to information released by Anduril during the aircraft's unveiling, the primary mission bay is capable of accommodating up to ten AGM-114 Hellfire missiles, ten AGM-179 Joint Air-to-Ground Missiles (JAGM), or ten Barracuda-100M precision-guided missiles developed by the company. These configurations provide Thunder with a substantial precision-strike capability against armored vehicles, hardened positions, mobile targets, and other high-value objectives encountered during deep maneuver operations. The use of modular weapon installations also simplifies mission planning by allowing operators to configure aircraft according to expected target sets rather than maintaining permanently armed platforms optimized for only a single mission profile.

  The aircraft can alternatively be configured to carry up to sixteen Altius-600 air-launched effects, transforming Thunder into an autonomous mothership capable of deploying loitering munitions, reconnaissance drones, or distributed sensor platforms over the battlefield. This capability significantly expands the aircraft's operational utility by allowing it to project reconnaissance assets and precision effects beyond the range of its own onboard sensors while supporting collaborative engagements across a wider battlespace.

  For missions emphasizing sustained battlefield fire support, the primary payload bay can accommodate as many as seventy-six 70 mm rockets, providing a high volume of precision or area fire against light armored vehicles, troop concentrations, and fortified defensive positions. A separate forward payload module provides capacity for up to twelve counter-unmanned aircraft effectors intended to protect both Thunder and accompanying crewed aircraft against hostile drones operating within the formation's airspace. Beyond kinetic payloads, the aircraft's open mission architecture has been designed to support rapid integration of future electronic warfare systems, communications relay packages, intelligence collection payloads, and emerging precision-guided weapons as operational requirements evolve, ensuring that the platform remains adaptable throughout its service life.

• Flying Capabilities

  Thunder's propulsion architecture represents one of the platform's most distinctive technological innovations, combining the operational endurance of conventional liquid fuel with the efficiency and flexibility of electrically driven propulsion. Rather than relying upon a traditional turboshaft engine directly coupled to a mechanical transmission, the aircraft employs a series hybrid-electric powertrain in which fuel-powered electrical generation supplies energy to the propulsion system while simultaneously supporting the substantial electrical requirements of onboard sensors, mission computers, and autonomous flight systems. This arrangement enables power distribution to be continuously optimized throughout every phase of flight while improving overall propulsion efficiency across a broad range of operating conditions.

  A defining element of the propulsion system is the incorporation of Optimum-Speed Tiltrotors (OSTR), an Anduril technology that continuously adjusts rotor rotational speed according to the aircraft's flight regime. During vertical takeoff, landing, and hover, the rotors operate at higher revolutions per minute to maximize lifting efficiency and control authority. As the aircraft transitions into forward flight, the nacelles rotate toward the horizontal position while rotor speed is progressively reduced, allowing the wing to assume the primary lifting function. By varying rotor speed rather than maintaining a fixed rotational rate, Thunder reduces fuel consumption, mechanical loading, and acoustic signature during cruise, enhancing both endurance and survivability during low-level penetration missions.

  The combination of vertical takeoff capability and efficient wing-borne cruise enables Thunder to operate from dispersed forward operating locations without requiring conventional runways while maintaining substantially greater operational reach than traditional unmanned helicopters. According to Anduril, the aircraft has been specifically designed to support long-range autonomous deployment across contested operational theaters, where attack aviation is increasingly required to operate farther from the forward edge of the battlefield because of expanding threat envelopes created by long-range precision fires and integrated air defense systems.

  The hybrid-electric propulsion system also contributes to reduced acoustic detectability during low-altitude ingress, an important consideration for autonomous attack aircraft expected to operate within heavily defended airspace. Although Anduril has not publicly released detailed performance specifications such as maximum speed, service ceiling, operational radius, endurance, or payload weight, the company states that Thunder has been engineered to provide the range, speed, and persistence required for deep strike, autonomous escort, maritime patrol, contested logistics, and collaborative operations with both current and future crewed rotary-wing aircraft.

• Avionics and Onboard Equipment

  The defining capability of Thunder lies not solely in its airframe or propulsion system but in the software-defined mission architecture that enables the aircraft to function as a trusted autonomous combat teammate. Central to this capability is Lattice for Mission Autonomy, Anduril's collaborative autonomy ecosystem, which transforms high-level operator intent into autonomous execution of navigation, formation management, route planning, timing, task allocation, and flight deconfliction. Rather than requiring continuous stick-and-rudder remote piloting, Thunder is designed to execute complex missions with minimal operator intervention, allowing aircrews aboard accompanying helicopters to concentrate on tactical decision-making while supervising multiple autonomous aircraft simultaneously.

  Supporting this autonomy is a multi-modal machine perception suite that integrates passive and selectively active sensors with onboard computer vision, digital terrain databases, inertial navigation, terrain feature mapping, and high-performance edge computing. Working together, these systems continuously detect, classify, and track terrain features, natural obstacles, man-made structures, and potential threats while generating the environmental awareness required for autonomous low-level flight through complex operational environments. The sensor architecture has been specifically designed to support operations in degraded visual environments and under conditions where GPS signals, communications, or satellite navigation may be disrupted by electronic warfare.

  According to Anduril, Thunder combines visual navigation techniques with inertial positioning and terrain-referenced navigation to maintain mission continuity when conventional navigation aids are unavailable. This capability enables the aircraft to continue autonomous operations in contested electromagnetic environments while reducing dependence on vulnerable external navigation systems. Onboard processing continuously correlates sensor data with digital map information to support precision terrain following, obstacle avoidance, and safe autonomous maneuvering at low altitude.

  The aircraft's sensor information is shared through the Lattice ecosystem to create a common tactical operating picture distributed across all connected platforms within the formation. Data generated by Thunder are fused with information from crewed aircraft and other autonomous systems, providing commanders with improved situational awareness while supporting collaborative target identification, autonomous route deconfliction, synchronized weapons employment, and coordinated mission execution. By integrating advanced machine perception, resilient navigation, distributed sensor fusion, and software-defined autonomy into a unified combat system, Thunder has been designed to operate not simply as an unmanned aircraft, but as an intelligent autonomous wingman capable of enhancing the effectiveness, survivability, and combat reach of the entire aviation formation.
