The 50K6 is the Command and control vehicle which is used with the S-350 Vityaz 50R6 ground-to-air defense missile system. The 50K6 command and control system is designed for battle management of the Vityaz ADM (Air Defense Missile) system fitted with an appropriate interface equipment.
Country users: Russia
Description
The 50K6 is the Command and control vehicle which is used with the S-350 Vityaz 50R6 ground-to-air defense missile system. The 50K6 command and control system is designed for battle management of the Vityaz ADM (Air Defense Missile) system fitted with an appropriate interface equipment.
50K6 Command Post variants:
No variants at this time
Technical Data
-
Onboard Equipment
The shelter mounted at the rear of the 6x6 truck chassis is equipped with a variety of advanced optronic and communication systems to ensure effective command and control.
-
Design and protection

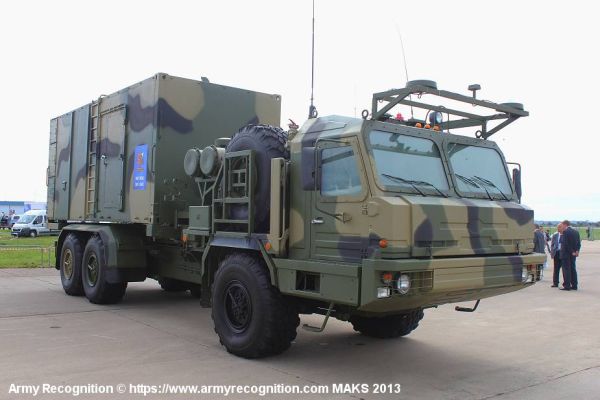

The 50K6 command post vehicle, part of the S-350 Vityaz air defense system, is mounted on a BAZ-69092-12 8x8 high-mobility wheeled chassis, which provides excellent off-road capability and reliable performance in diverse terrains. This mobility allows for rapid deployment and repositioning of the command post as needed. The vehicle is equipped with advanced command and control systems that coordinate the radar and missile launchers, ensuring seamless integration and effective operation of the air defense network. The crew operates from a protected cabin within the vehicle chassis, which is armored to provide protection against small arms fire and shrapnel. This ensures the safety of the operators in hostile environments. The command post's shelter is located at the rear of the crew cab, facilitating real-time communication, data processing, and decision-making essential for managing the air defense operations
-
Mobility
The 50K6 Command and Control vehicle uses a 6x6 truck chassis BAZ-69092-12. This a three axle chassis with a wheel arrangement of 6x6, a three-seat cab and a behind-the-cab engine. The engine is the YaMZ-8424.10-033 multi-fuel four-stroke eight cylinder V-type liquid cooled diesel with a power of 450 hp. This truck can run at a maximum speed of 80 km/h with a maximum road range of 1,000 km.
-
Combat Use
The mobile 50K6 command and control system provides the above ADM systems with target designation of current and prospective aircraft, cruise missiles, ballistic targets, and other air attack weapons, within the range of the air defence systems responsibility coverage zone, as well as their interoperability in adverse tactical environment.
Specifications
-
Type
Command and Control vehicle
-
Country users
Russia
-
Designer Country
Russia
-
Truck
BAZ-69092-12
-
Speed Truck
80 km/h
-
Range Truck
1,000 km
Details View
Photo Gallery
-
50 K 6 E S 350 E Vityaz Hero Command Control Vehicle Medium Range Air Defense Missile System Almaz Antey Russia Russian Defence Industry 001
-
Vityaz Hero 50 K 6 Command Control Vehicle Medium Range Air Defense Missile System Almaz Antey Russia Russian Defence Industry 130 001
More Products
- Details
- Written by: Administrator
- Category: Command Post
- Hits: 60882
|
BMP-1KSh Command post and staff armoured vehicle
|
||||
| a | ||||
|
||||
- Details
- Written by: Administrator
- Category: Command Post
- Hits: 18057
|

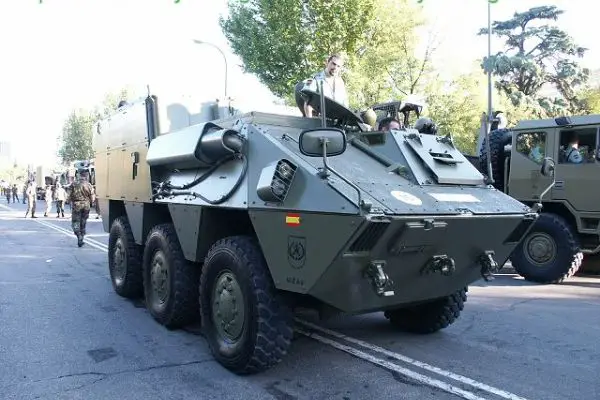

BMR-2 PC véhicule blindé poste de commndement |
||||||
| a | ||||||
|
||||||
- Details
- Written by: Administrator
- Category: Command Post
- Hits: 47888
|

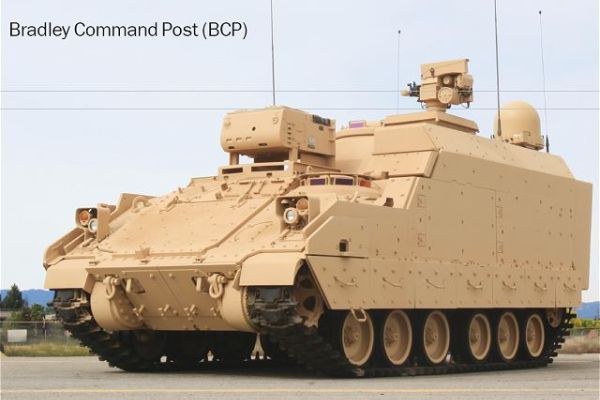

Bradley BCP Command Post armoured vehicle
|
||||||
| a | ||||||
|
||||||
- Details
- Written by: Administrator
- Category: Command Post
- Hits: 12825
The Brown Hazelnut is the Launch Control Center (LCC) for the Israeli-made Arrow 2 and Arrow 3 anti-balistic air defense missile system. It has been developed and produced by the MLM Division of IAI (Israel Aerospace Industries).
Country users: Israel
Description
The Brown Hazelnut is the Launch Control Center (LCC) for the Israeli-made Arrow 2 and Arrow 3 anti-balistic air defense missile system. It has been developed and produced by the MLM Division of IAI (Israel Aerospace Industries).
Brown Hazelnut LCC variants:
No variants at this time
Technical Data
-
Equipment
The Brown Hazelnut LCC (Launch Control Center) employs microwave and radio data and voice communications links to the "Green Pine" and "Golden Citron". It has also missile maintenance and diagnostic capabilities
-
Mobility
The Brown Hazelnut LCC (Launch Control Center) consists of a large shelter mounted on a two axles trailer which is towed by a military truck.
-
Combat Use
The Brown Hazelnut LCC (Launch Control Center) is located at the launch site up to 300 km from the "Golden Citron" fire control center and operates as an interface between the Fire Control Center (FCC) and launchers of Arrow missile system, receiving inputs from the FCC and activating the launchers.
-
Features
- Fully automatic battle management code.
- Fully redundant system.
- Communication junction.
- Missile maintenance and diagnostic capability.
- High confidence levels, multiple independent safety switch preventing inadvertent launches.
Specifications
-
Type
Launch Control Center LCC
-
Country users
Israel
-
Designer Country
Israel
-
Combat Equipment
-
-
Missions
Coordinate the launch of Arrow missile, as an interface between the Fire Control Center (FCC) and launchers of Arrow missile system
-
Mobility
Truck mounted shelter
-
Crew
?
-
Interoperability
-
Details View

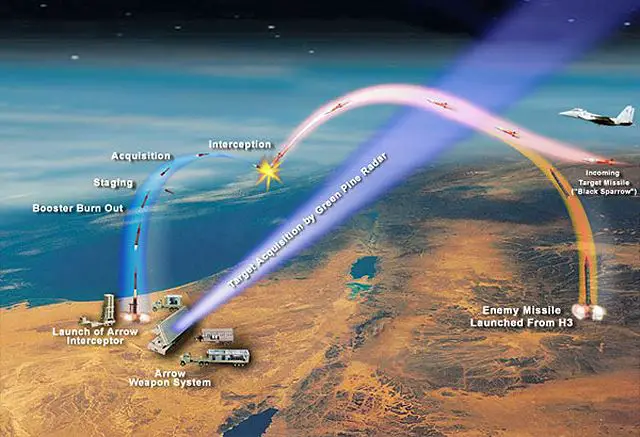

(1) Launcher (six canisters), (2) CITRON TREE launch control center, (3) Communications
center, (4) HAZELNUT TREE fire control center, (5) GREEN PINE radar antenna, (6)
Radar control center, (7) Radar power unit, (8) Radar cooling unit.
Photo Gallery
More Products
- Details
- Written by: Administrator
- Category: Command Post
- Hits: 14047
The "Golden Citron" is Battle Management Command, Control, Communication, Intelligence Center, Fire control Center (FCC) for the Arrow 2 air defense missile system. It is developed and produced by the MLM Division of IAI. Tadiran Electronics Limited is the prime contractor for the Citron Tree battle management / fire control centre.
Country users: Israel
Description
The "Golden Citron" is Battle Management Command, Control, Communication, Intelligence Center, Fire control Center (FCC) for the Arrow 2 air defense missile system. It is developed and produced by the MLM Division of IAI. Tadiran Electronics Limited is the prime contractor for the Citron Tree battle management / fire control centre.
Golden Citron FCC variants:
No variants at this time
Technical Data
-
Equipment
The Golden Citron Fire Control Center (FCC) is trailer mounted, downloads the radar data along with data from other sources and uses powerful signal processing tools to manage the threat interceptions fully automatically, including against single and multiple threats. The system provides fully automatic as well as Human-in-the-Loop options at every stage of battle operation management. It is also capable of interoperability with other theater missile defense systems and C3I systems. Notably Link 16, TADIL-J, communications were being altered to allow interoperability with Patriot fire control units. Assigned targets can be handed over to the Patriot's AN/MPQ-53 fire control radar.

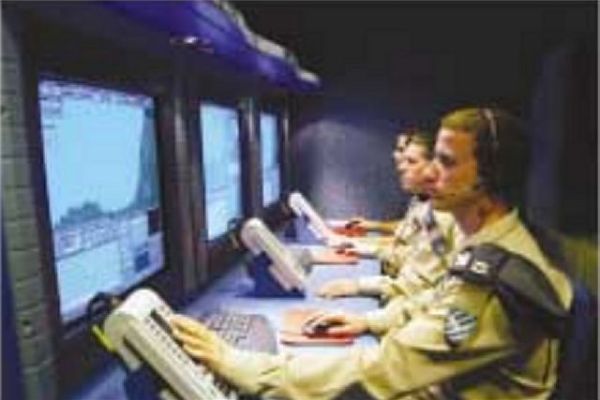

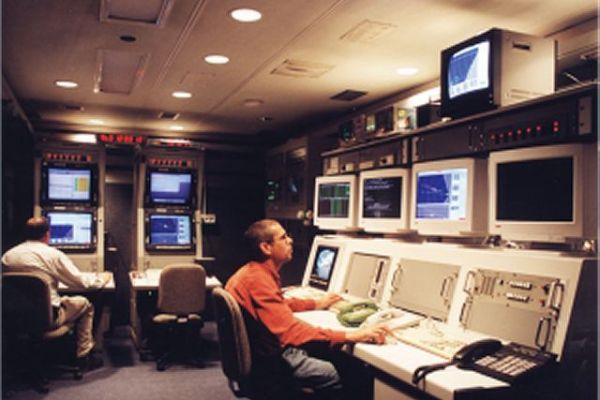

The "Citron Tree" inside the Golden Citron has three banks of operator consoles laid out in a U shape. In the center sits the officer in command who oversees the engagement, but also has links to the other parts of the battery as well as to IAF headquarters. On the commander's right sits the engagement officer, who ensures that targets are assigned to other engagement officers sitting on the right-hand leg of the U. Each is assigned a geographical area to defend and two of the officers are more senior as they have an overview of Patriot batteries. To the left of the commander is the resource officer, who monitors the status and readiness of the missiles. On the left of the U sits the sky picture officer, who is in contact with the Home Front Command and uses the center's ability to predict impact point to alert the civil authorities. Also at these consoles are an intelligence officer and an after-action/debrief officer, who uses recordings as it is impossible to absorb all the information during engagements. All in all, the "Golden Citron" is manned by 7–10 operators. -
Mobility
The Arrow 2 anti-ballistic air defense missile system "Golden Citron" FCC fire Control Center is a shelter mounted on a trailer towed by a military truck.
-
Combat Use
When a missile launch is detected, the launch site, the missile's position and trajectory and the predicted impact point are displayed on the electronic map. The predicted impact point is displayed as an ellipse on the map. The size of the impact ellipse shrinks as the missile's trajectory stabilizes and the trajectory data becomes available. The trajectory image is color matched to the image of its launch site. The optimum intercept point is also displayed. The centre can control up to 14 intercepts simultaneously. Link 16, Tadil J, communications allows interoperability with Patriot fire control units. Assigned targets can be handed over to the Patriot's N/MPQ fire control radar. Tests carried out by the US and Israel have successfully linked the Arrow and US Patriot and also the Arrow and Israeli Defence Force Patriot version.
Specifications
-
Type
Battle Mangement Command, Control, Communication,, Intelligence Center, Fire Control Center
-
Country users
Israel
-
Designer Country
Israel
-
Combat Equipment
Three banks of operator with computer
-
Missions
Coordinate engagement of the missile, manage the threat interceptions, downloads the radar data
-
Mobility
Truck mounted shelter
-
Crew
7 - 10
-
Interoperability
Can be connected with others air defense missile systems as the Patriot
Details View
Photo Gallery
More Products
