Russia equips Kilo-class submarines with cope cages to defend Black Sea fleet from Ukrainian drones.

The Russian Black Sea Fleet has begun installing structural counter-drone cages over the sails of its Improved Kilo-class diesel-electric submarines at the Novorossiysk naval base. British Ministry of Defence satellite intelligence confirmed the passive armor modifications on three of the fleet's four operational boats to mitigate surfaced vulnerabilities against Ukrainian first-person view (FPV) and long-range uncrewed aerial systems. The defense measure aims to protect critical above-water assets (including periscopes, communication masts, optronic sensors, and access hatches) from mission-kill damage without altering the vessels' primary underwater acoustic stealth properties.

Declassified satellite imagery collected between June 6 and June 9, 2026, details lattice-frame canopy installations over the conning towers of Project 636.3 and Project 877 attack submarines stationed in Novorossiysk. This physical modification follows successive Ukrainian maritime drone and cruise missile strikes that disabled multiple surface combatants and severely compromised the infrastructure of the Black Sea Fleet.

Related topic: Russia arms LNG tanker with heavy machine guns for first time to defy NATO boarding teams in Baltic Sea

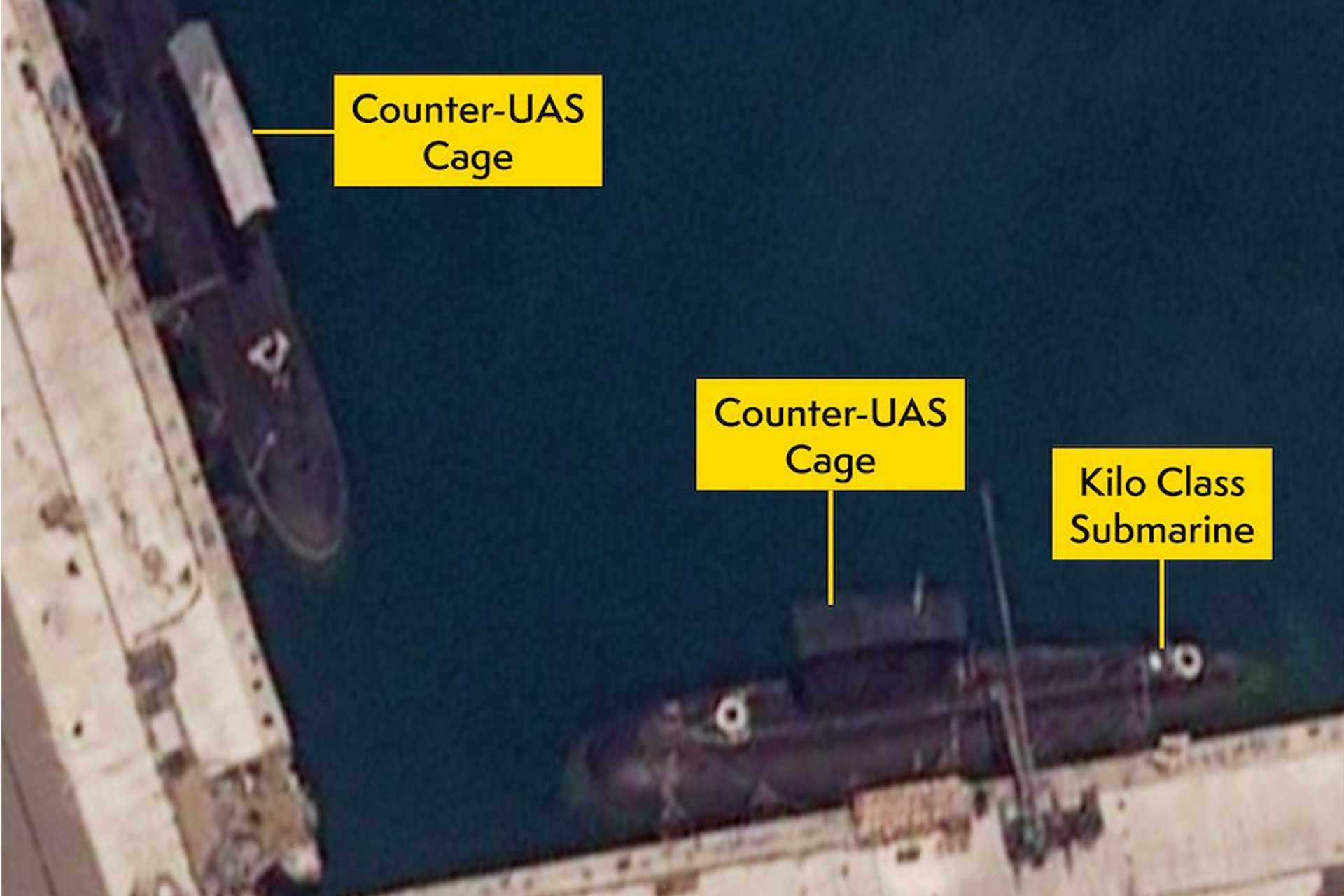

The cage installation is concentrated around the upper sail, which contains the periscopes, optronic sensors, antennas, communications masts, snorkel induction and exhaust arrangements, navigation radar, and access hatches. (Picture source: X/UK MoD)

On July 3, 2026, the UK Ministry of Defence confirmed that Russia had begun fitting counter-drone cages on Improved Kilo-class submarines of the Black Sea Fleet at Novorossiysk, as satellite imagery collected between June 6 and June 9 showed cage structures installed over the sails of three of the fleet's four operational submarines. The remaining boat was assessed as almost certain to receive the same modification. This marks a further change in Russian naval force protection after successive Ukrainian attacks on Black Sea Fleet assets in Crimea and Novorossiysk, including missile strikes against ships in repair facilities and maritime drone attacks inside port areas.

The modification is not aimed at improving the submarine's underwater survivability, where acoustic stealth remains its primary protection, but at reducing vulnerability during the periods when the boat is surfaced, berthed, snorkeling, entering harbor, leaving harbor, or moving at low speed in confined waters. The decision shows that Russian planners now treat Ukraine's long-range attack drones as a credible threat to submarines when their exposed sensors, masts, and hatches are above water. These protection measures reflect a growing sense of vulnerability for Russian submariners in the Black Sea. In September 2022, the Black Sea Fleet submarines were moved from Sevastopol to Novorossiysk after Ukraine's strike capability against Crimea improved, shifting Russia's submarine force to a base farther from the immediate missile threat at that time.

That measure did not remove the risk, as Novorossiysk later became exposed to Ukrainian long-range drones and unmanned maritime systems. On September 13, 2023, the Rostov-on-Don (B-237) was severely damaged in dry dock during a Ukrainian Storm Shadow strike on Sevastopol Naval Shipyard. In August 2024, Ukraine reported another strike against the Rostov-on-Don while it was still in Sevastopol. In December 2025, a Ukrainian Sea Baby maritime drone attacked a Project 636.3 submarine in Novorossiysk, with the Kolpino (B-271) assessed as likely seriously damaged and unable to operate normally. By April 2026, the Project 636.3 Mozhaisk and Project 877 Dmitrov submarines had already appeared with anti-drone cages, heavy machine guns and searchlights, before the same approach was extended in June 2026 to the Novorossiysk (B-261), the Stary Oskol (B-262), the Krasnodar (B-265) and the Veliky Novgorod (B-268).

The cope cage is positioned around the sail because that is the part of the submarine most exposed to drone attack and most densely packed with equipment needed for operations near the surface. The sail contains attack and search periscopes, optronic sensors, communications masts, electronic support measure antennas, navigation radar, snorkel induction and exhaust systems, and access hatches. None of these needs to be destroyed in a catastrophic way to make the submarine unavailable. A damaged periscope can restrict visual search and attack procedures, a damaged mast can degrade communications, a damaged navigation radar can complicate surface movement in port or coastal waters, and damage to snorkel-related equipment can reduce the submarine's ability to recharge batteries without fully surfacing.

For a diesel-electric boat, this matters because the submarine must periodically expose masts or snorkel equipment during patrol cycles. The cage therefore protects the submarine against a mission-kill scenario in which the pressure hull remains intact, but external systems are damaged enough to force extended repair. The vulnerability is also shaped by the way Ukraine's FPV drones and small one-way attack drones engage targets. A submarine alongside a pier or moving slowly on the surface offers a predictable target with limited maneuvering space, while the sail provides a compact elevated aiming point. Conventional submarine design gives priority to hydrodynamics, acoustic reduction, pressure-hull integrity, and sensor placement, not overhead protection against small drones approaching from elevated angles.

A drone with a small explosive charge does not need to penetrate the pressure hull to generate a useful effect. Fragmentation can cut cabling, damage exposed optics, strike antenna housings, deform radar components or make hatches unsafe to use. Blast pressure decreases rapidly with distance, so a stand-off gap of 30 to 50 cm can reduce the effect of a detonation against the sail. The cage is therefore a simple structural barrier designed to prevent direct contact, force premature detonation, and preserve enough functionality for the submarine to remain deployable after an attack. The Russian Black Sea Fleet has strong reasons to accept these constraints because its submarine force has become more important as its surface fleet has lost freedom of action.

Since 2022, Russia has lost or suffered damage to several major surface combatants, while Ukrainian uncrewed surface vessels, long-range drones and cruise missiles have pushed Russian ships farther from exposed areas. Project 636.3 submarines remain among the fleet's principal assets for launching Kalibr land-attack cruise missiles against Ukraine, giving them a strategic strike role beyond traditional anti-submarine and anti-ship missions. Preserving each available boat matters because the Black Sea Fleet cannot easily replace damaged submarines under wartime conditions, and Türkiye's closure of the Bosphorus to belligerent warships limits the movement of additional naval assets into the theater.

A submarine disabled at the pier by drone damage to its sail equipment removes launch capacity just as effectively as a more dramatic attack, at least for the period required to repair the affected systems. Project 636.3 submarines, also known as Improved-Kilo, are valuable because they combine low acoustic signature, conventional endurance and land-attack missile capability in a relatively compact diesel-electric design. The class has a surfaced displacement of about 2,350 tonnes and a submerged displacement close to 3,950 tonnes, with a length of 73.8 m, a beam of 9.9 m and a draft of about 6.2 m. It uses diesel-electric propulsion, has an endurance of about 45 days and can reach about 20 knots submerged. Its six 533 mm bow torpedo tubes can launch torpedoes, deploy mines and fire Kalibr cruise missiles, with a weapons load commonly associated with torpedoes, missiles or up to 24 mines depending on configuration.

The crew is about 52 personnel. These characteristics make the submarine difficult to find and engage when submerged, but they do not protect it during the short but critical periods when it must operate with masts, sensors, hatches and snorkel equipment exposed above the waterline. The operational cost of the cage is significant but limited enough for Russia to accept. Steel structures above the sail add weight and windage high on the boat, which can marginally affect surface handling, especially during low-speed maneuvering inside harbor or during tug-assisted movements near piers. The cage can obstruct crew movement around the bridge and upper sail, complicate access to periscopes, masts and hatches, and slow maintenance on equipment that already requires careful alignment, sealing and calibration.

It can also reduce visibility from the bridge, which matters during close navigation and port approaches. Earlier Russian configurations with heavy machine guns and high-power searchlights added another layer of defense, but they also require crew exposure, target detection, training and reaction time. The cage is passive, always present, and does not depend on a gunner detecting a small drone at the last moment, which is why Russia appears to have accepted reduced accessibility in exchange for higher survivability against cheap but effective attack systems. The wider implication for Russia is that the Ukrainian drone threat has moved beyond armored vehicles and airfields into the protection of strategic naval assets.

Since 2022, anti-drone cages and overhead barriers have appeared on Russian tanks, infantry fighting vehicles, artillery systems, aircraft shelters, buildings, oil storage tanks, bomber bases and now submarines. The common factor is the exposure of high-value equipment to small precision-guided explosive payloads that cost far less than the target they can disable. For submarines, the critical shift is that survivability can no longer be judged only by underwater stealth, hull strength or torpedo-defense assumptions.

A boat costing hundreds of millions of dollars can be removed from service by damage to a periscope, communications mast, snorkel component, radar sensor or hatch area while it is in port. By mid-2026, Russian naval planners in the Black Sea had to account at the same time for cruise missiles, uncrewed surface vessels, underwater drones, FPV drones and long-range one-way attack UAS. Future submarine designs may therefore require protected sail geometry, shielded sensors, recessed masts, strengthened hatch areas and integrated drone-resistant features instead of improvised external cages added after combat experience.
