Fahd 240 with 30 mm cannon turret armoured personnel carrier



a
Fahd Fahd-240 APC armoured personnel carrier 30 mm cannon turret technical data sheet specifications description information intelligence pictures photos images video identification Egypt Egyptian army defence industry military technology

Description
The Fahd is a wheeled armoured vehicle personnel carrier manufactured in Egypt by the local Company Kader Factory to replace old Egyptian armoured personnel carrier as the BTR-40 or the Egyptian-made Walid. The first Fahd vehicle was based on the chassis of a German truck Mercedes-Benz LAP 1117/32 truck (4 × 4) fitted with armour crew cabin and troop's compartment. The production of the first Fahd began in 1985, with the first production vehicles being completed in 1986 for the Egyptian Army. The latest production model is the Fahd 240 which uses the chassis of the Mercedes-Benz truck LAP 1424/32 4x4 and a powerful Diesel engine. Currently it is estimated that more than 1000 vehicles Fahd in different versions are in service in the Egyptian army forces, including 740 Fahd-240 fitted with a Russian-made BMP-2 turret armed with a 30 mm automatic cannon.

Variants
- Fahd-240 APC: armoured personnel carrier vehicle with troop's compartment at the rear of the chassis for 10 soldiers.
- Fahd-240 Kader 208 turret: the top of the hull is equipped with a small turret armed with one 12.7 mm and one 7.62 mm machine gun.
- Fahd-240/30: equipped with a BMP-2 turret armed with one automatic 30mm cannon
- Fahd-240 Command Post: the rear of the troop's compartment is equipped with navigation set, gyroscopic compass, wireless communication system, and 10 line telephone exchanges.
- Fahd-240 mine laying system: the rear part of the vehicle is fitted with seven carriers containing 250 anti-tank mines.
- Fahd-240 ambulance: the rear part of the vehicle is able to carry 4 laying patients, 4 sitting patients and one medical team.
- Fahd-240 recovery vehicle: The armoured recovery and repair workshop vehicle Fahd is designed to carry out recovery and repair field mission. The vehicle is equipped with a 2.5 tons hydraulic crane.
- Fahd-240 anti-riot vehicle: The vehicle is equipped with a twin-man turret with search light aiming and vision devices. A dozer blade is mounted at the front of the chassis.

Technical Data
Back to top
Armament
The Fahd-240/30 with a Russian-made BMP-2 two-man turret which is armed with a 30 mm 2A42 dual-feed cannon, a 7.62 mm PKT machine gun mounted coaxially with the main armament and a roof-mounted AT-5 'Spandrel' ATGW (anti-armour guided weapon) missile launcher. The AT-5 can also be deployed away from the vehicle if required by the tactical situation and has a maximum range of 4,000 m (with time of flight to this range being 20 seconds). The launcher has a traverse of 360º, elevation +15º and depression -5º. The AT-5 has a single HEAT warhead and will penetrate 550 mm of RHA. In addition to the one missile in the ready to launch position, a further four missiles are carried internally, two either side of the hull. Mounted either side of the turret is a bank of three 81 mm electrically operated grenade dischargers that fire to the front of the vehicle.
Design and protection
The layout of the Fahd-240/30 is similar to a light truck with the engine at the front, the crew cabin in the middle and the troop's compartment at the rear. The vehicle is fitted with an armoured hull which provides a protection for crew and the soldiers against firing of small arms 7.62 x 54 mm AP rounds and shell splinters. The troop compartment is at the rear of the hull with the infantry entering via a door in the rear, the upper part of which folds upwards and the lower part downwards to form a step. Each side of the rear door is equipped with vision block and firing ports. Each side of the hull is fitted with three vision block and circular firing port in the lower part. The driver and the commander have a single door that opens to the front with one bullet-proof window. Two large bullet-proof windows are mounted to the front of the crew cabin which can be covered by a shutter hinged at the top. On additional door is mounted to the right side of the hull.
Propulsion
The Fahd-240 uses a Mercedes-Benz 4+4 truck chassis LAP 1424/32. The vehicle is motorized with a Mercedes-Benz Diesel engine OM 366 LA four-stroke turbocharged diesel developing 240 hp at 2,600 rpm coupled to a manual transmission. The Fahd-240/30 can run at a maximum road speed of 81 km/h with a maximum cruising range on road of 700 km. The Fahd can negotiate a maximum vertical slope of 70% and side slope of 30%. It can cross a trench of up to 0.8m width and vertical obstacle of 0.5m. The Fahd can ford a depth of 0.7m without preparation. Two armoured steel fuel tanks are placed in the bottom of left and right sides of the vehicle, with enough capacity and fully protection.
Accessories
The Fahd is fitted with a central tyre pressure regulation system allowing the driver to adjust the tyre pressure to suit the terrain being crossed. The driver can select front or rear tyres, or both together. The central tyre pressure system stops automatically after reaching the maximum or minimum tyre pressure selected by the driver. Low-pressure, run-flat tyres are fitted as standard and allow the vehicle to travel a distance of 50 km at 30 km/h in the event of a puncture. Standard equipment includes air-conditioning and NBC protection systems. The Fahd-240 is air transportable by military transport aircraft C-130. The gunner has a day/night binocular periscopic sight with a day magnification of ×6 and a 10º field of view, and a night magnification of ×5.5 and a 7º field of view, and four day periscopes, three to the front and one to the rear of the vehicle. An single infra-red searchlight is mounted coaxially to the right of the 30 mm 2A42 cannon and the commander also has a roof-mounted infra-red searchlight Model OU-3GA2.

Specifications
Back to top
Armament
One 30 mm cannon, one coaxial 7.62 mm machine gun and AT-5 anti-tank missile launcher.
Country users
Egypt, Kuwait, Oman, Sudan Democratic Republic of Congo.
Designer Country
Egypt
Accessories
Infrared night vision, NBC protection system, air conditioning, central tyre pressure regulation system
Crew
2 + 2 in turret + 6 soldiers
Armor
Protection against firing small arms 7.62 x 54 mm AP caliber and shell splinters.
Weight vehicle
13,500 kg
a
Speed vehicle
81 km/h maximum road speed
Range
700 km
a
Dimensions
Length, 6.00 m; Width, 2.45 m; Height, 2.85 m

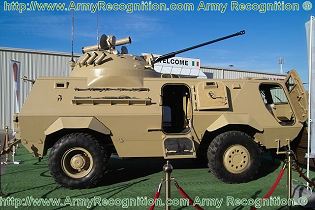

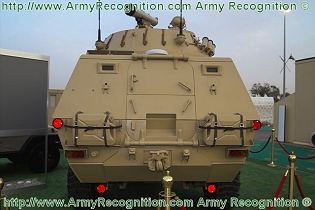

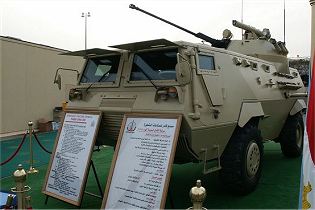

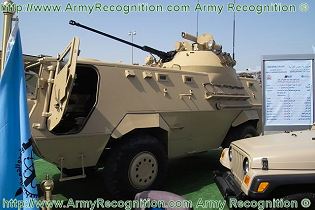

Details View
