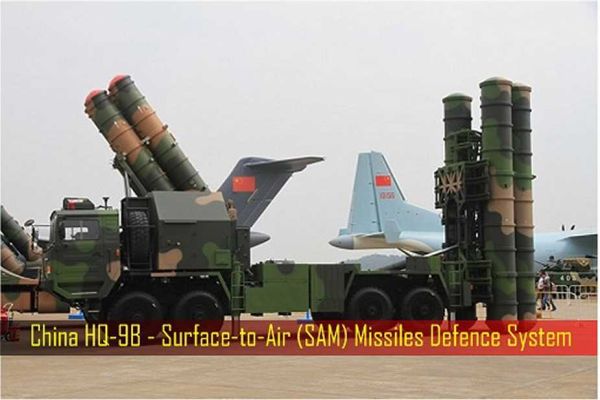

HQ-9B.

Technical Data

• Launcher Unit

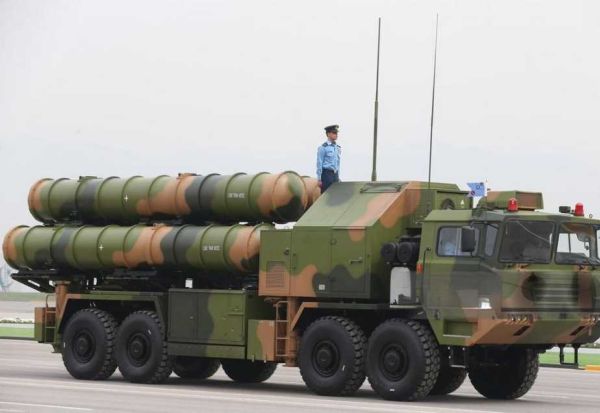

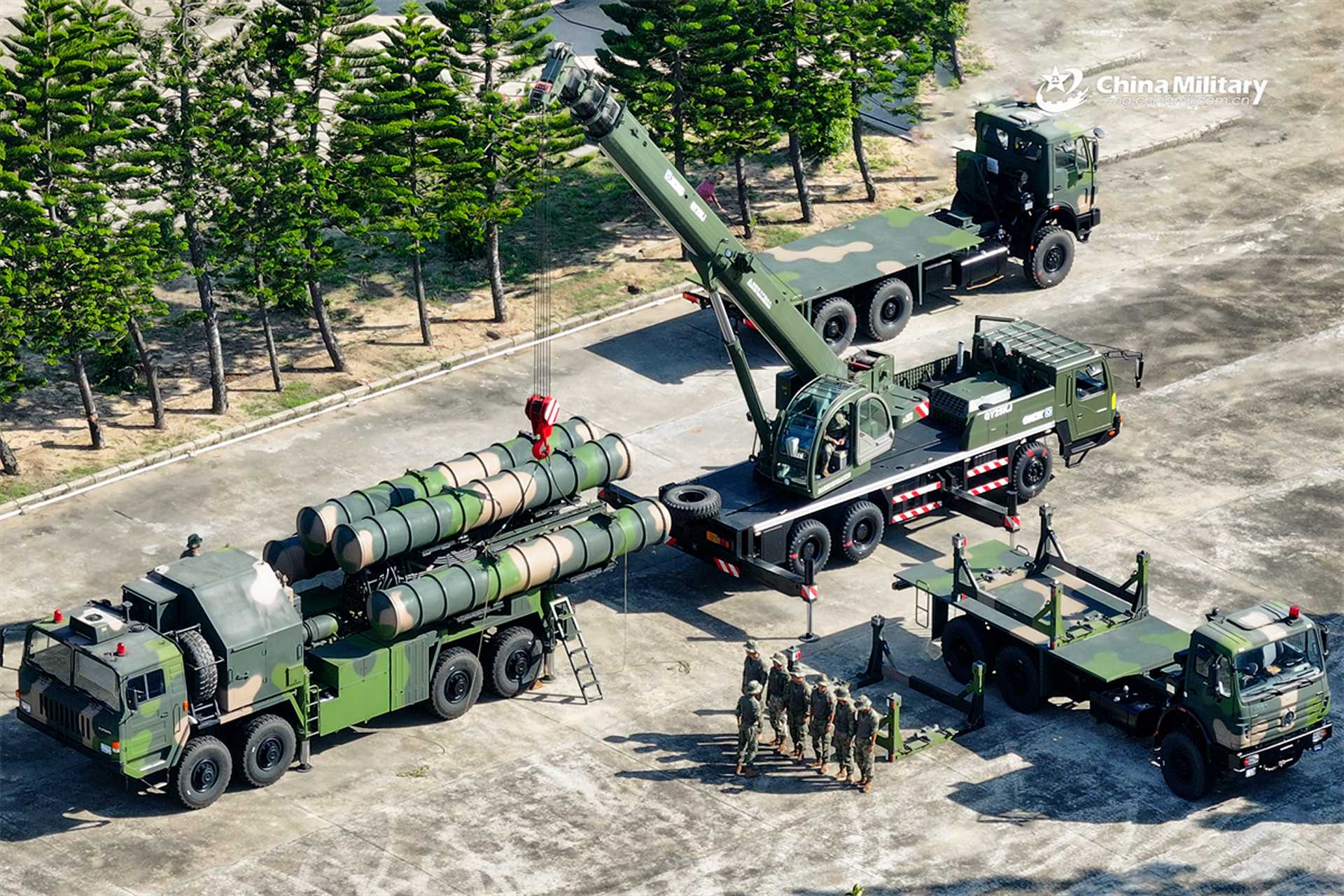

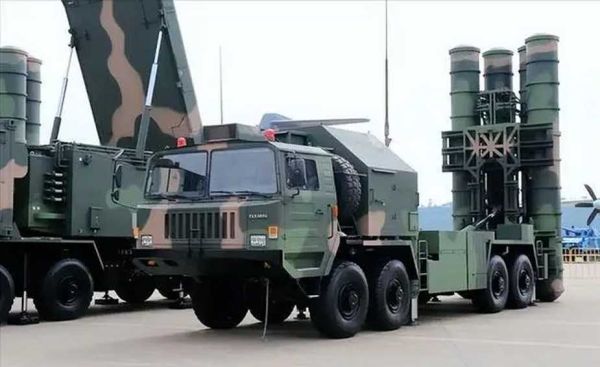

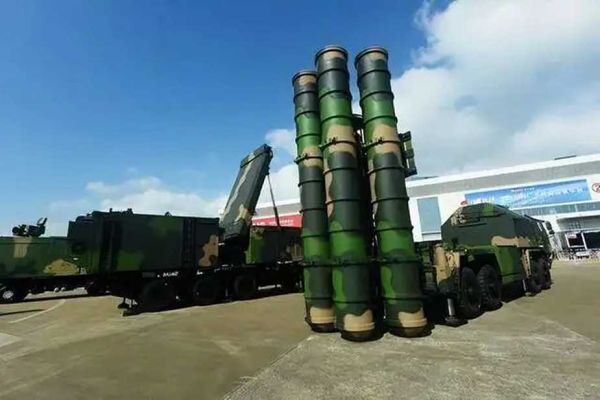

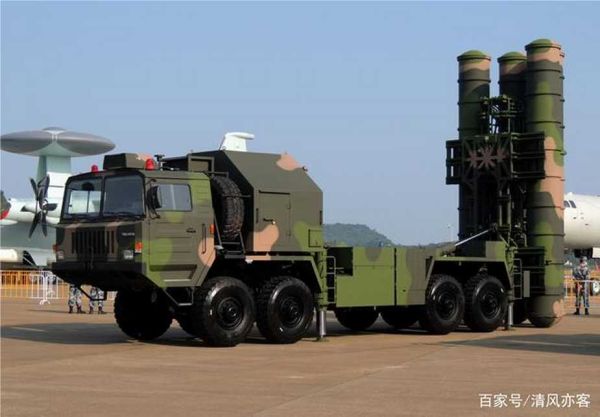

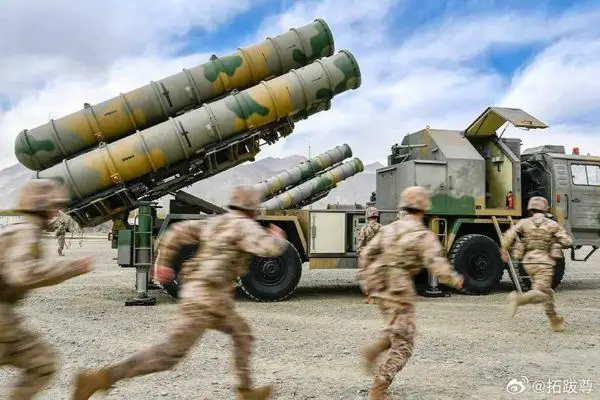

  The HQ-9B uses a standard Transporter Erector Launcher, or TEL, mounted on a heavy duty 8x8 truck chassis. Each TEL is equipped with four cylindrical missile canisters arranged vertically in separate compartments. The system employs cold launch technology, using gas ejection to expel the missile from the canister before ignition of the rocket motor. This method reduces wear on the launcher and enhances safety during deployment. The TEL can be rapidly erected and launched in a matter of minutes, allowing for high mobility and rapid response in a combat environment..

  Armament
• Missile

  Each missile in the HQ-9B system is a two stage, solid propellant interceptor with a fragmentation high explosive warhead. It features an inertial navigation system for initial guidance, mid course correction via secure datalink, and dual mode terminal homing using active radar and a passive infrared seeker. The missile is capable of speeds exceeding Mach 4, with an effective range of up to 260 kilometers against aircraft and approximately 50 to 100 kilometers against ballistic targets. Its improved seeker technology allows better discrimination of stealthy or low signature targets and enhances resilience to jamming or electronic interference. The altitude engagement capability extends up to 50 kilometers, making it effective against high flying reconnaissance platforms and tactical ballistic missiles.

  Missile
• Mobility

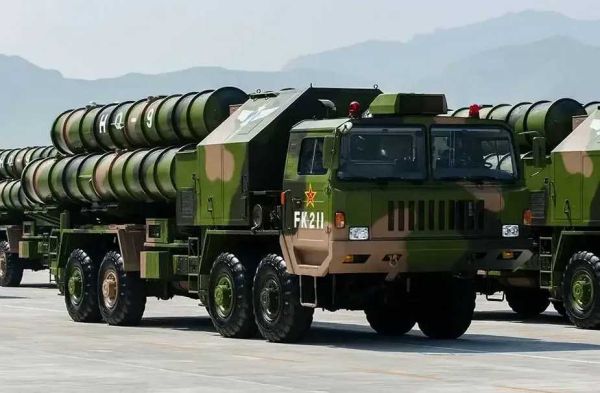

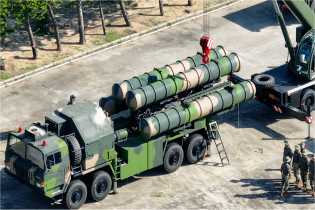

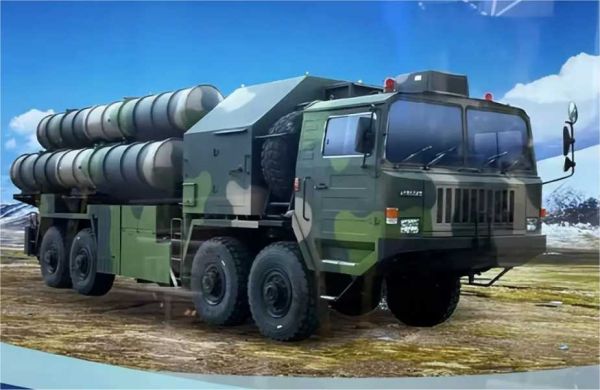

  The TEL (Transporter Erector Launcher) vehicle for the HQ-9B is based on the Taian TA5380 8x8 high mobility tactical truck, offering stability and mobility across varied terrain. The vehicle is powered by a diesel engine that enables a road speed of up to 65 to 70 kilometers per hour and an operational cruising range of 600 to 800 kilometers. Designed for all terrain operations, the truck can navigate difficult environments and reposition quickly between firing positions. Its large cabin can accommodate crew members and system electronics, while the rear section houses the vertical launch system. The mobility of the TEL vehicle is key to the system’s survivability and tactical flexibility, particularly in rapidly shifting battlefield conditions.

• Command and Control Vehicles

  The HQ-9B command and control vehicles are based on the same modular and scalable architecture originally developed for the HQ-9 system, consisting of several integrated components. These include a phased array engagement radar vehicle, typically the HT-233 radar or an upgraded equivalent, a long range surveillance radar, a command post vehicle equipped with digital battle management systems, datalink communication units, and support vehicles for power supply and communication relays. This setup forms a complete and autonomous firing battery capable of detecting, tracking, and engaging multiple targets simultaneously.

  Although the HQ-9B inherits this architecture, it introduces significant upgrades to support its enhanced range, dual mode guidance, and operational sophistication. The radar component may use a more advanced active electronically scanned array radar or a modernized HT-233 variant, offering superior detection and tracking of stealth aircraft, high speed targets, and low radar cross section threats. The data processing capabilities within the command post are also improved, allowing for faster engagement decisions and more precise multi target tracking. The HQ-9B system further integrates enhanced electronic counter countermeasures to maintain effectiveness in contested electromagnetic environments.

  In addition, the datalink systems of the HQ-9B are optimized for extended range mid course missile guidance and are capable of handling more complex engagement scenarios. These enhancements ensure greater lethality and response flexibility, particularly when operating as part of an integrated air defense network. The HQ-9B’s command and control vehicles are fully interoperable with other surveillance assets and air defense systems in China’s Integrated Air Defense System, including airborne early warning platforms and adjacent missile batteries, allowing seamless data sharing and cooperative engagement capabilities

• Combat Use

  The HQ-9B is designed to protect high value military and civilian infrastructure from a broad spectrum of airborne threats. While the base HQ-9 system has been exported to several countries, the HQ-9B remains a domestic system and has not yet been officially offered on the global arms market, although it has influenced newer export versions such as the FD-2000B.

  The HQ-9B’s primary mission is to neutralize high speed aerial platforms in high threat environments. It provides long range air defense coverage with precise targeting capabilities, even under intense electronic warfare conditions. Its role includes area defense for cities and military bases, strategic missile defense, and aerial interdiction against stealth and high altitude reconnaissance aircraft.

  The HQ-9B is designed to deliver high-performance long-range air defense capabilities across a broad range of combat scenarios. Its principal combat strength lies in its ability to detect, track, and engage multiple types of aerial threats at extended ranges and high altitudes, including stealth aircraft, strategic bombers, cruise missiles, and short- to medium-range ballistic missiles. With a maximum engagement range of up to 260 kilometers and a ceiling reaching 50 kilometers, the HQ-9B enables strategic airspace denial over a vast operational radius.

  The dual-mode seeker combining active radar and passive infrared guidance significantly improves its kill probability, particularly in complex environments where electronic jamming, decoys, or stealth technologies are employed. This capability allows the HQ-9B to effectively counter fifth-generation aircraft and low-RCS cruise missiles, even in contested electromagnetic conditions. The system's phased array radar and upgraded command architecture enable it to track and engage multiple targets simultaneously, providing saturation defense against coordinated air attacks.

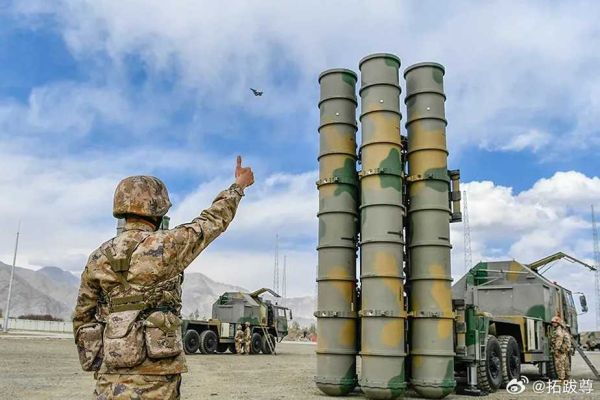

  Its cold-launch vertical firing method allows for rapid 360-degree response without repositioning the launcher, ensuring fast reaction time against time-sensitive threats. Combined with high system mobility, the HQ-9B can be rapidly deployed, relocated, or concealed, making it suitable for both fixed and maneuver force protection roles. The HQ-9B is also fully interoperable within China’s integrated air defense network, allowing it to receive target data from airborne early warning aircraft and long-range surveillance radars, expanding its situational awareness and target acquisition range.

  Operationally, the HQ-9B has been deployed to critical defense zones across China, including strategic coastal and frontier regions. Its deployment to fortified positions in the South China Sea underscores its role as a frontline anti-access and area denial asset, capable of deterring high-value airborne incursions and securing air dominance over key theaters of operation. While not yet tested in live combat, the system's technical design and field integration confirm its status as one of the most capable land-based air defense solutions in service today.
