U.S. Central Command Precision Strike Reveals How Iran Uses Rail Infrastructure for Its S-200 Air Defense System.

U.S. Central Command appears to have destroyed an Iranian S-200 long-range surface-to-air missile launcher in a precision strike, according to footage released on July 12, 2026, following a wider operation that CENTCOM said targeted about 140 military sites after another attack on a commercial vessel in the Strait of Hormuz. If confirmed, the strike shows the campaign expanded beyond missile, drone, and naval targets to directly weaken Iran’s long-range air-defense network, reducing the threat to follow-on air operations.

An independent visual assessment indicates the target was a loaded S-200 launcher positioned inside a protected firing site linked to the system’s distinctive rail-based missile-handling infrastructure. The strike also highlights a key vulnerability of the Cold War-era air-defense system, whose fixed launch positions and support facilities are easier to detect and target than modern mobile surface-to-air missile systems.

Related Topic: U.S. Corsair One-Way Attack Sea Drones Redefine Naval Strike Warfare in First Combat Use Against Iran

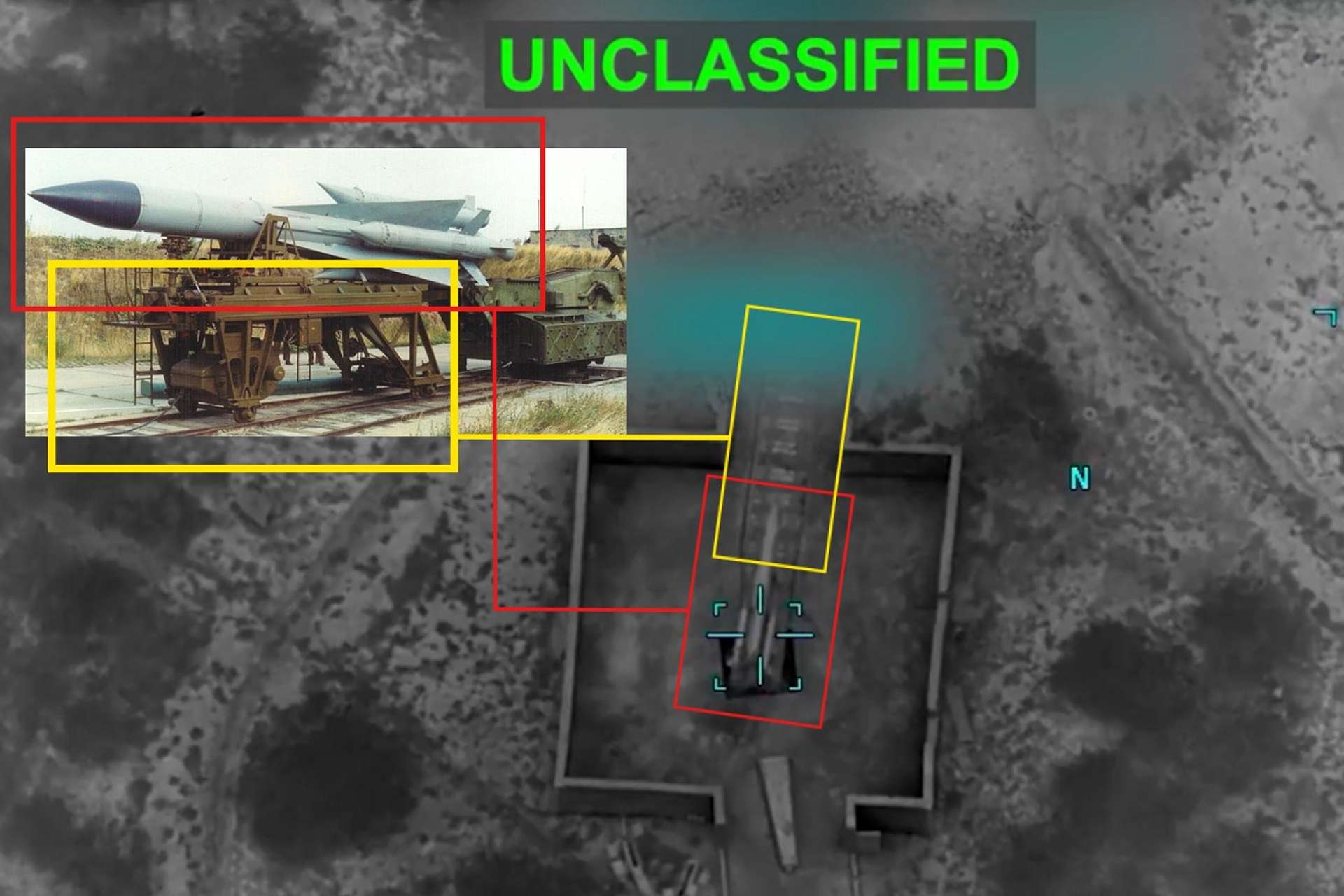

CENTCOM footage appears to show a precision strike destroying a loaded Iranian S-200 launcher, exposing the distinctive rail-handling infrastructure used by the long-range air-defense system (Picture Source: U.S. Central Command /Matej Kopecky /Edited By Army Recognition Group)

On July 12, 2026, footage posted by U.S. Central Command appeared to show a precision strike against a loaded Iranian S-200 long-range surface-to-air missile launcher inside a protected firing position. CENTCOM’s accompanying release said the July 11 operation hit approximately 140 Iranian military targets following an attack on another commercial vessel in the Strait of Hormuz, bringing the command’s stated total to more than 300 targets over three nights. The apparent S-200 engagement suggests that the operation extended beyond offensive missile, drone and naval infrastructure into elements of Iran’s integrated air-defense network. The identification is based on an independent visual assessment of footage published through CENTCOM’s official X account.

A closer examination of the U.S. Central Command strike footage reveals what appears to be a loaded Iranian S-200 launch position, an identification not disclosed in the official announcement. The frame shows a large missile mounted on a launcher consistent with the 5P72 series, while a narrow rail track runs directly into the protected firing enclosure. That rail-supported layout is one of the most distinctive features of the Soviet-designed S-200, known to NATO as the SA-5 Gammon. The missile’s size, the launcher configuration and the fixed-site infrastructure all closely match known S-200 deployments. Although the video does not allow confirmation of the exact missile or launcher variant, the combined visual evidence provides a strong basis for identifying the target as part of an Iranian S-200 air-defense site.

The track visible at the site is a dedicated missile-handling system rather than a conventional railway used to transport the weapon across the country. Early S-200 firing positions used the 5Yu24 rail-mounted transloader to carry a prepared missile between a protected holding area and the 5P72 launcher. The transloader moved along purpose-built rails, docked with the launcher and transferred the missile through an automated loading cycle. This infrastructure was required by the interceptor’s exceptional dimensions: later S-200 missiles are approximately 10.7 metres long, weigh about seven tonnes at launch and combine four jettisonable solid-propellant boosters with a liquid-propellant sustainer.

The S-200 was developed by the Soviet Union during the Cold War to defend major military, industrial and administrative areas against high-altitude bombers, reconnaissance aircraft, electronic-warfare platforms and other high-value airborne targets. The initial Angara version entered service during the 1960s, followed by improved Vega-family variants employing semi-active radar homing and the 5N62 “Square Pair” engagement radar. Depending on the variant, the system was designed to engage targets at ranges extending from approximately 200 to 300 kilometres. Iran acquired S-200 systems during the early 1990s and retained the type as a long-range layer within its wider air-defense structure.

A Cold War-era photograph credited to Matej Kopecky shows a 5V28VE Vega, or SA-5B Gammon, being transferred from a 5Yu24 rail transloader onto a 5P72VE launcher. The historical image displays a linear rail alignment, missile cradle and recessed launch position closely resembling the infrastructure visible in the CENTCOM footage. The comparison does not by itself establish the Iranian system’s precise configuration, but it strengthens the assessment that the target formed part of an S-200 firing position. Iranian S-200 deployments have also been documented in reduced configurations, with a single 5N62 engagement radar supporting two 5P72 launchers at some locations instead of the larger Soviet-style arrangement.

At the tactical level, striking a launcher while a missile is mounted potentially removes both a firing position and a prepared long-range interceptor. The missile’s solid boosters, liquid-propellant section and large fragmentation warhead could also increase secondary damage, although the footage does not establish whether the warhead detonated or whether the observed explosion resulted mainly from the incoming munition. The destruction of one launcher would not automatically eliminate the complete battery. An operational S-200 unit also depends on its 5N62 engagement radar, launch-control cabins, communications links, electrical-generation equipment, missile-preparation facilities and any surviving launchers.

From an operational perspective, the engagement can be assessed within the broader suppression and destruction of enemy air defenses mission. Degrading a long-range S-200 position can reduce risk to strike aircraft and may allow aerial-refuelling tankers, airborne early-warning aircraft, electronic-intelligence platforms and other high-value support assets to operate closer to contested airspace. It can also create a temporary gap in radar-guided missile coverage for follow-on attacks against coastal-surveillance, naval, missile or drone infrastructure, the categories of targets identified in CENTCOM’s official announcement.

The S-200’s fixed architecture also limits the options available to its operator after a launch site has been located. Unlike modern road-mobile surface-to-air missile systems, its launch rails, handling tracks, protective enclosures and radar facilities create persistent signatures that can be mapped and monitored through intelligence, surveillance and reconnaissance. Iran’s likely defensive responses include tighter radar-emission control, increased use of camouflage and decoys, relocation of supporting equipment and greater reliance on mobile air-defense systems to compensate for damage to fixed positions. The wider military impact will depend on whether the strike affected only the visible launcher or also disrupted the radar, command and logistical network supporting the battery.

The apparent strike highlights both the enduring reach and the structural vulnerability of Iran’s legacy long-range air defenses. The S-200’s large interceptor, fixed launch architecture and distinctive rail-handling system provide recognizable signatures for modern precision-targeting networks. The footage records the destruction of a visible firing asset; the condition of the associated radar and command infrastructure will determine whether the attack removed a single launcher or opened a lasting gap in Iran’s air-defense coverage.

Written by Teoman S. Nicanci – Defense Analyst, Army Recognition Group

Teoman S. Nicanci holds degrees in Political Science, Comparative and International Politics, and International Relations and Diplomacy from leading Belgian universities, with research focused on Russian strategic behavior, defense technology, and modern warfare. He is a defense analyst at Army Recognition, specializing in the global defense industry, military armament, and emerging defense technologies.
