Ethiopia orders four batteries of S-400 air defense systems from Russia to deter potential air attacks.

Ethiopian Prime Minister Abiy Ahmed announced on October 28, 2026, that Ethiopia will receive four Russian S-400 Triumf long-range air defense batteries under an existing agreement with Moscow. The planned acquisition aims to modernize Ethiopia's air defense network, extending ground-based interception coverage up to 400 km beyond its current operational mix of S-75, S-125, Pantsir-S1, HQ-64, and SPYDER systems. However, total engagement capacity and operational reach remain contingent on undisclosed contract parameters, including specific radar command architectures and interceptor missile variants supplied.

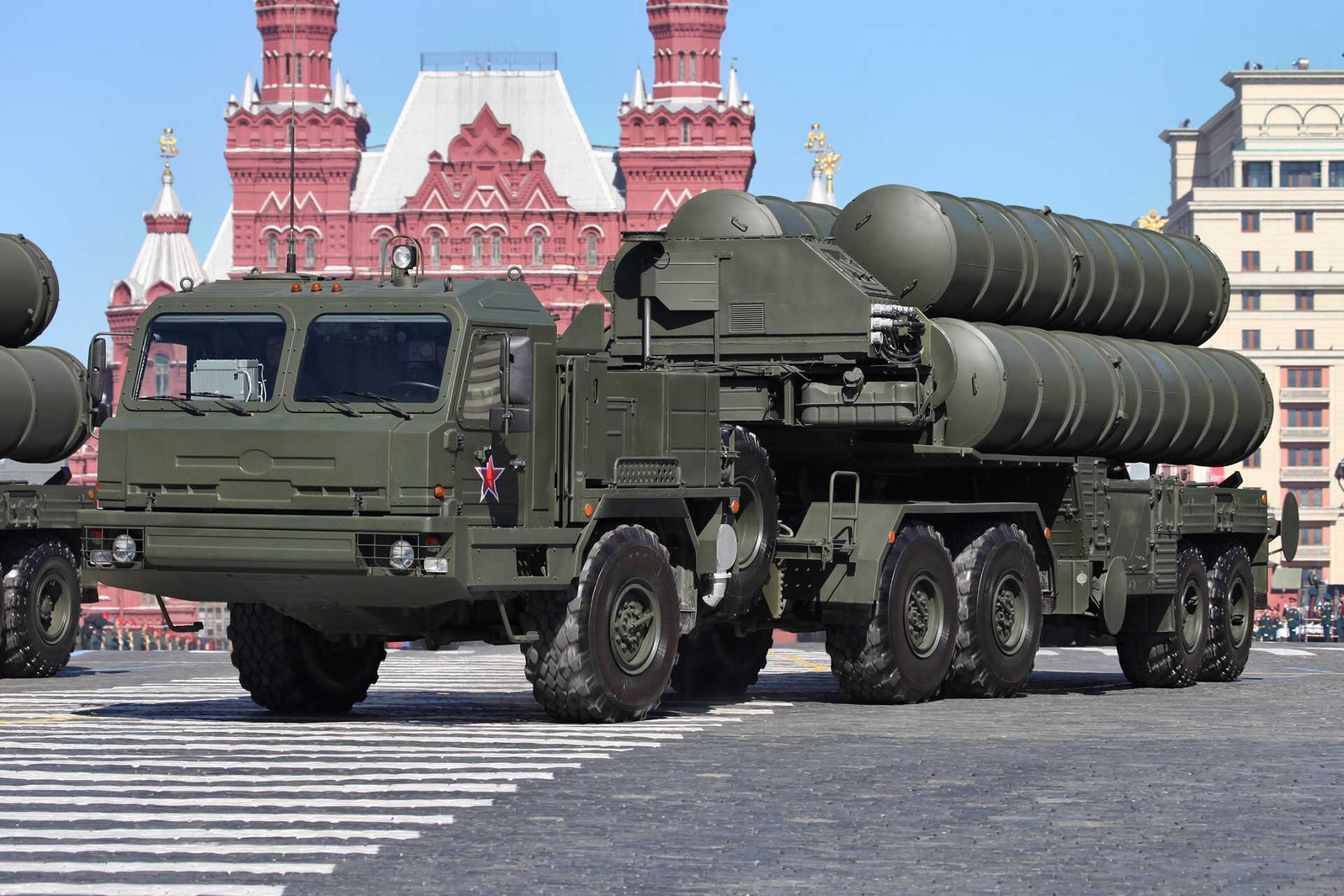

Assessing the strength of Ethiopia’s four planned S-400 batteries is difficult because the term can refer to different configurations, ranging from small launcher groups to larger firing units, with four to twelve launchers. (Picture source: Vitaly Kuzmin)

On October 28, 2026, Ethiopian Prime Minister Abiy Ahmed announced that Ethiopia would receive four Russian S-400 Triumf (SA-21 Growler) air defense batteries under an existing agreement with Moscow, alongside the delivery of 12 Su-35 multirole fighters one year ahead of schedule. The announcement coincided with the third Russia-Africa Summit on October 28-29, although the S-400 deliveries remain pending. Developed by Almaz-Antey, the S-400 was approved for Russian service on April 28, 2007, before entering operational service on August 6, 2007, and employs surface-to-air missiles (SAMs) with ranges of up to 400 km. Its introduction would extend Ethiopia's ground-based interception capabilities beyond those of its current S-75M3, S-125M1, Pantsir-S1, HQ-64, and Spyder air defense systems.

The operational scale remains uncertain because four batteries could represent between 12 and 48 launchers carrying 48 to 192 missiles, depending on whether Ethiopia receives small firing batteries or complete battalions, while missile variants, radar quantities, contract value, and delivery dates remain undisclosed. A force equipped with 48N6E2 missiles, for instance, would have only half the maximum interception range (200 km) of one receiving 40N6E missiles. The first uncertainty concerns the organization of the four S-400 batteries, since Russian air defense terminology distinguishes between launcher groups, 98Zh6 firing battalions, and larger formations controlled through the 30K6 command-and-control system. A three-launcher battery carries 12 missiles, while a Russian 98Zh6 battalion typically operates six to twelve 5P85-series launchers, a 92N6E engagement radar, command equipment, and reloading vehicles.

Related topic: India clears $1.1 Billion deal with Russia for 288 S-400 missiles after 2025 Pakistan war

Across four formations, those arrangements would provide 12 launchers and 48 ready missiles in three-launcher configurations, 24 and 96 in six-launcher configurations, 32 and 128 in eight-launcher configurations, or 48 and 192 in twelve-launcher configurations, respectively. The distinction extends beyond ready-to-fire capacity. A 98Zh6 firing battalion normally incorporates a 92N6E multifunctional engagement radar, associated command equipment, and missile transport and handling vehicles, while the larger 30K6 system provides coordination through the 55K6E command post and 91N6E acquisition radar. Four battalions, each possessing an engagement radar, could conduct independent engagements, whereas four launcher groups sharing one engagement radar would share the same tracking and guidance channels. Without the configuration of the four Ethiopian firing units, the battery count alone provides no reliable measure of their combined engagement capacity.

The second variable is the composition of Ethiopia's missile inventory, because the S-400 accommodates substantially different missiles. The 40N6E has a range between 380 and 400 km, an altitude ceiling of 30 km, a listed launch weight of 1,893 kg, as well as active and semi-active radar homing for long-range engagements against aircraft. The 48N6DM, corresponding to the 48N6E3 export variant, reaches a range of 240 to 250 km and an altitude of 27 km, uses semi-active guidance and a fragmentation warhead of approximately 180 kg, while the earlier 48N6E2 and 48N6E reach 200 km and 150 km, respectively. The smaller 9M96E2 weighs approximately 420 kg, reaches 120 km and 30 km in altitude by employing active radar homing, while the 9M96E provides a 40 km range and a 20 km altitude ceiling. These smaller interceptors permit higher ammunition density through compatible multiple-canister arrangements, whereas conventional 5P85 launchers carry four large missile canisters.

An Ethiopian force receiving only 48N6E2 missiles would consequently have half the nominal maximum engagement range of one equipped with 40N6E interceptors, despite operating the same S-400 launchers. The S-400's radar architecture also separates surveillance, target tracking, and missile guidance, making radar quantities as important as launcher numbers. The 30K6 command-and-control complex combines a 55K6E command post with a 91N6E Big Bird radar capable of 360-degree surveillance, with a detection range of 600 km against suitable targets, and the capacity to track up to 300 targets. Subordinate 98Zh6 firing units employ the 92N6E Grave Stone engagement radar, while compatible acquisition radars include the 96L6E Cheese Board, the 59N6 Protivnik-GE, the 67N6 Gamma-DE, and the 1L119 Nebo-SVU.

Since 2012, a complete coordinated 55K6E configuration can also engage up to 80 targets with 160 missiles in flight, compared with 36 targets and 72 missiles in earlier configurations; these are system-wide limits, not individual battery capacities. Ballistic target engagements extend to approximately 60 km, with a specified maximum target velocity of 4,800 m/s. Radar horizon also restricts low-altitude coverage: assuming a 10 m antenna height and standard atmospheric refraction, the radio horizon is approximately 54 km against a target at 100 m altitude, compared with 143 km at 1,000 m and 278 km at 5,000 m. Thus, the S-400's 400 km missile range is principally relevant when sufficient radar coverage and target altitude permit long-distance engagements. Ethiopia's existing SAM systems comprise 89 S-75M3 Volkhov units, 40 S-125M1 Pechora-M1s, 61 Pantsir-S1s, 12 HQ-64 units, and 26 Spyder units, totaling 228 SAMs whose operational status and accounting basis remain uncertain.

The S-75 entered service in 1957, with later variants reaching 43 to 60 km, while the S-125M1 provides lower-altitude engagements through ground-based guidance equipment. The Pantsir-S1 carries 12 missiles and two 30 mm 2A38M cannons, the Chinese HQ-64 covers shorter-range engagements, and the Israeli Spyder employs Python-5 and Derby-derived interceptors. Additional defenses include 60 ZSU-23-4 Shilka vehicles with four 23 mm cannons each, ZU-23-2 twin 23 mm guns, and Strela-2 and Igla shoulder-fired missiles. Ethiopia also operates 12 P-18 VHF surveillance radars, 13 ST-68U three-dimensional radars, and eight Kolchuga-M passive electronic surveillance systems, alongside the Krasukha-4 (1RL257E) electronic warfare system delivered by Russia in 2023. The P-18 supports aircraft detection, the ST-68U measures range, azimuth, and altitude, and Kolchuga-M locates radio-frequency emitters without transmitting conventional radar signals.

The Krasukha-4 performs electronic warfare rather than missile guidance, and none of these systems automatically substitutes for the S-400's 92N6E engagement radar. Integrating the 25 listed P-18/ST-68U radars with the 55K6E command post would require compatible communications, target-data exchange, and identification procedures. This is particularly relevant because Ethiopia's defenses combine Soviet, Russian, Chinese, and Israeli equipment with different command architectures. A surveillance radar may detect an aircraft without providing the precision tracking needed for interception, while a passive electronic system can locate an emitter without generating a complete missile firing solution. The number of 91N6E acquisition radars and 92N6E engagement radars supplied will therefore determine how independently Ethiopia's four S-400 formations can operate.

The S-400's 5P85TE2 transporter erector launcher (TEL) uses a BAZ-64022 6×6 tractor, carries four large missile canisters, and has a cruising range of 800 km, as well as top speeds of 60 km/h on roads and 30 km/h on dirt roads. Deployment takes approximately 5-10 minutes, while an already deployed unit can reach combat readiness in approximately three minutes under specified conditions. An eight-launcher battalion carries 32 large missiles, sufficient in ammunition terms for 16 two-missile engagements before reloading; four such battalions would carry 128 missiles, equivalent to 64 two-missile engagements. Four three-launcher batteries would instead carry 48 missiles, equivalent to 24 two-missile engagements. These are theoretical ammunition ceilings, not guaranteed interceptions, and do not account for unavailable missiles or engagement-channel restrictions.

Reloading a S-400 unit also requires 5T58-2 missile transporters, 22T6-2 cranes, reserve stocks, and trained crews. The S-400's design parameters include 10,000 operating hours before major overhaul and at least 20 years of service life, but availability also depends on radar servicing, missile storage life, replacement electronics, and spare parts. The acquisition's financial implications remain uncertain because Ethiopia has not disclosed its contract price or package configuration. An indicative 2021 export price of $1 to $1.25 billion per S-400 battery package with reserve missiles would imply $4 to $5 billion for four equivalent packages, or 8.1 to 10.1 times Ethiopia's 2025-2026 defense allocation of 81 billion birr ($496 million). Spread evenly over ten years, that hypothetical purchase would cost $400 to $500 million annually before sustainment is accounted for, equivalent to 81 to 101% of the cited annual defense budget.

Russia previously delivered S-400 systems to China beginning in 2018, Turkey in 2019, and India in 2021, while Russian forces have employed the system in Ukraine and India operated it during the May 2025 conflict with Pakistan. Ethiopia's procurement comes amid renewed fighting in Tigray, tensions with Eritrea, and the extensive use of foreign-made drones during the 2020-2022 war, although none establishes a specific requirement for 400 km interceptors. The decisive variables remain the number of independently equipped firing units, the proportion of 40N6E and shorter-range missiles, and the ammunition and maintenance resources included, making the undisclosed configuration more important than the announced S-400 battery count alone.
