Harpoon Coastal Defense System HCDS.

Technical Data

• Launcher System

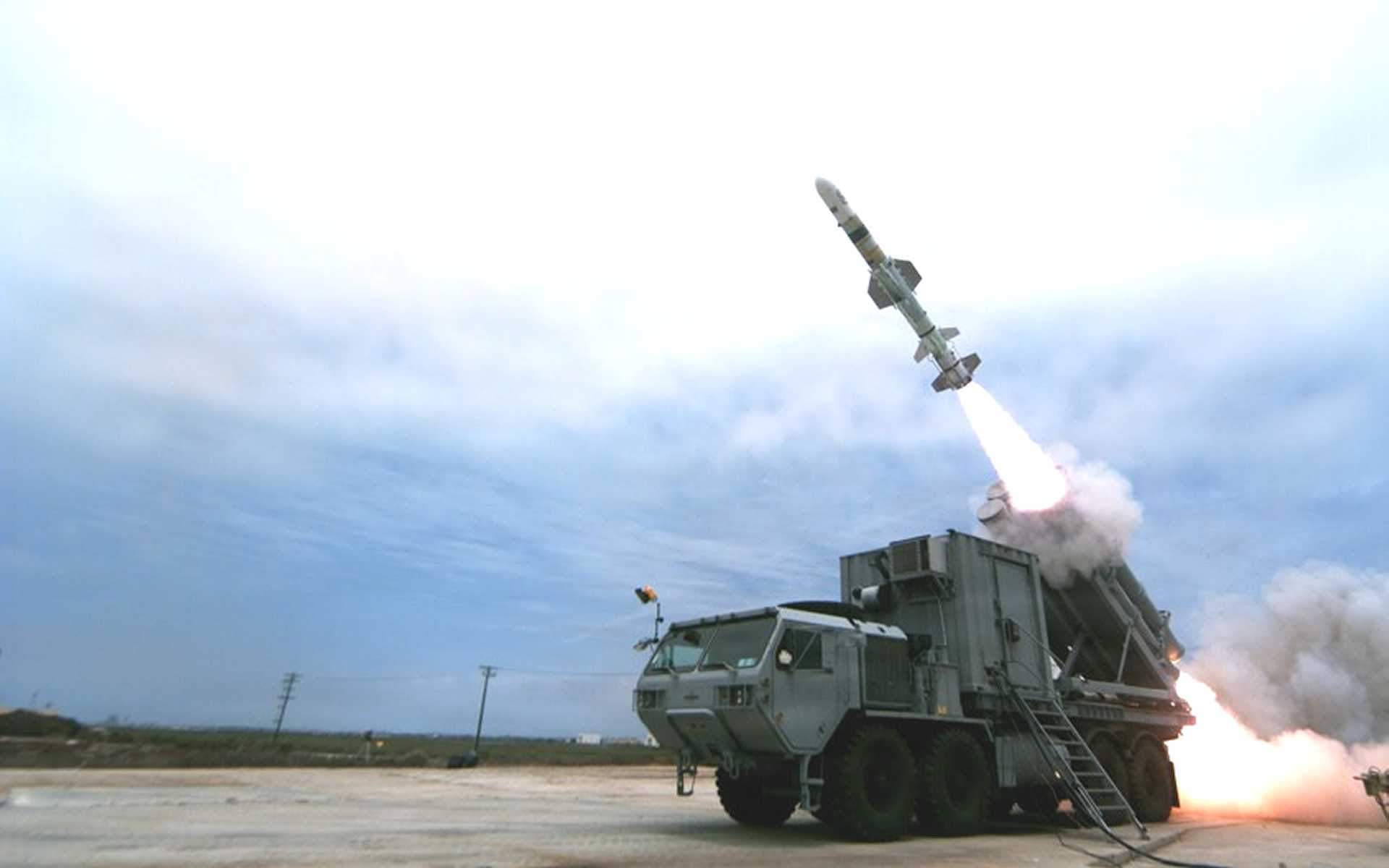

  The Harpoon Coastal Defense System is based on an 8×8 heavy tactical truck chassis that carries the complete mobile launch assembly and is externally similar in layout and payload class to the Oshkosh Defense Heavy Expanded Mobility Tactical Truck (HEMTT) family, although the exact vehicle manufacturer and model have not been publicly identified for the DT-1 configuration. Official imagery shows four axles, a heavy forward cab, and a large rear-mounted launcher carrying four cylindrical Harpoon missile canisters on an elevating support structure. The launcher incorporates the canister-support frame, elevation and positioning mechanism, electrical connections, launch-sequencing interfaces, and associated missile-support equipment required to prepare and fire the weapon. For land-based firing, the missile uses a solid-propellant booster to accelerate clear of the launcher before transitioning to its cruise propulsion system.

• Missile

  The Harpoon Coastal Defense System is armed with a land-launched Harpoon-family anti-ship missile, although the exact missile block used during the 2026 HCDS developmental firing has not been publicly specified. The Harpoon is an all-weather, over-the-horizon weapon employing autonomous guidance and an active radar seeker for terminal engagement of surface ships, with a low-level sea-skimming flight profile intended to reduce detection and reaction time. Published Harpoon Block II surface-launch characteristics include GPS-aided inertial midcourse navigation, active-radar terminal guidance, a diameter of 343 mm, a ship/surface-launch length of approximately 4.63 m, an approximate boosted weight of 680 kg, a penetration high-explosive blast warhead, turbojet cruise propulsion, a solid-propellant launch booster, and a stated range exceeding 67 nautical miles / approximately 124 km. These values are valid Harpoon Block II reference data but should not be interpreted as confirmation that every parameter is identical to the undisclosed DT-1 HCDS missile configuration.

• Mobility

  The missile launcher unit of the Harpoon Coastal Defense System is mounted on a four-axle 8×8 heavy tactical carrier to transport the missile launcher between staging areas and temporary firing positions. The vehicle configuration allows the system to avoid the predictable location of a fixed coastal battery and enables launch units to disperse across available road networks, use terrain and infrastructure for concealment, establish firing positions as required, and relocate after an engagement. Its heavy chassis provides the load-bearing capacity needed for four missile canisters, the elevating launcher structure, and associated support equipment while retaining tactical road mobility. Although its appearance is strongly reminiscent of an Oshkosh HEMTT-family vehicle, no exact HEMTT model designation should currently be assigned because the publicly released developmental-test information does not identify the chassis by manufacturer or military model number.

• Command and Control Systems

  The Harpoon Coastal Defense System is supported by a command-and-launch architecture that provides the functions required for engagement planning, target-data processing, missile mission-data loading, launch authorization, and firing control. Target information can be provided from the broader maritime surveillance and command network, after which an engagement solution and missile mission data can be generated for the launcher. Once released, Harpoon uses its onboard navigation and terminal seeker rather than continuous command guidance from the launcher. Publicly released information on the 2026 developmental system does not identify a dedicated command-post vehicle, organic surveillance-radar model, radar frequency, communication suite, or sensor detection range, and these elements should therefore remain listed as undisclosed rather than being inferred from foreign coastal Harpoon configurations.

• Combat Use

  The Harpoon Coastal Defense System is intended to provide a land-based anti-ship capability for coastal sea denial, maritime interdiction, protection of vital coastal assets, defense of strategic waterways, and reinforcement of anti-access operations against hostile surface forces. No combat employment of the current U.S.-managed developmental HCDS configuration has been publicly confirmed as of the end of August 2026; its principal demonstrated engagement remains the July 2026 DT-1 firing, during which a land-launched Harpoon successfully engaged a target vessel in near-shore and littoral waters. Operationally, the system is suited to threatening hostile destroyers, frigates, corvettes, missile craft, amphibious warfare vessels, landing ships, naval transports, auxiliaries, replenishment vessels, logistics ships, and other high-value maritime targets approaching defended coastal areas. Its principal role is to create a mobile shore-based anti-surface threat that complements aircraft, ships, and submarines while forcing an opposing naval force to account for dispersed missile launchers operating from land.
