M270A2 MLRS.

Technical Data

• Armament

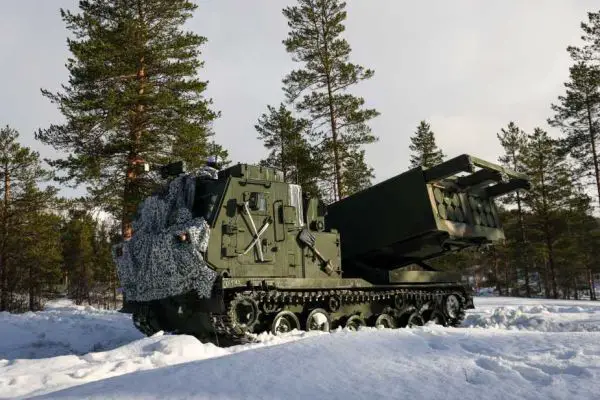

  The M270A2 Multiple Launch Rocket System (MLRS) is equipped with a dual-pod launcher module capable of firing the complete MLRS Family of Munitions (MFOM), including Guided Multiple Launch Rocket System (GMLRS) rockets, Extended-Range Guided Multiple Launch Rocket System (ER GMLRS) rockets, Army Tactical Missile System (ATACMS) missiles, and the next-generation Precision Strike Missile (PrSM). The launcher can carry either 12 227 mm rockets, arranged in two six-round launch pods, or 2 tactical missiles, providing commanders with exceptional flexibility for long-range precision-strike missions.

  The standard GMLRS rocket provides precision engagement of targets at ranges exceeding 84 km, while the Extended-Range GMLRS (ER GMLRS) increases the engagement range to approximately 150 km. For deep-strike operations, the M270A2 can launch ATACMS missiles capable of engaging targets at ranges of up to 300 km. The launcher is also fully compatible with the Precision Strike Missile (PrSM), which extends the system's strike capability beyond 500 km and represents the future of the U.S. Army's long-range precision fires capability. All munitions employ advanced GPS and inertial navigation guidance systems to ensure highly accurate target engagement with reduced collateral damage.

  The M270A2 is capable of delivering a full salvo of twelve rockets in less than one minute and can rapidly engage multiple targets during a single fire mission. Combined with its advanced digital fire control system and shoot-and-scoot capability, the launcher provides highly responsive fire support against command posts, air defense systems, logistics centers, troop concentrations, armored formations, and other high-value targets at standoff ranges. These capabilities make the M270A2 one of the most powerful and versatile rocket artillery systems currently in service with the United States and allied armed forces.

• Design and protection

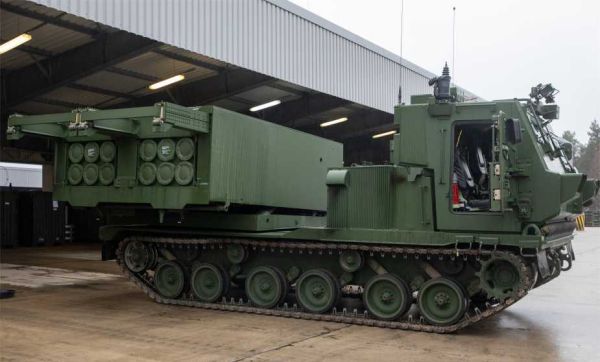

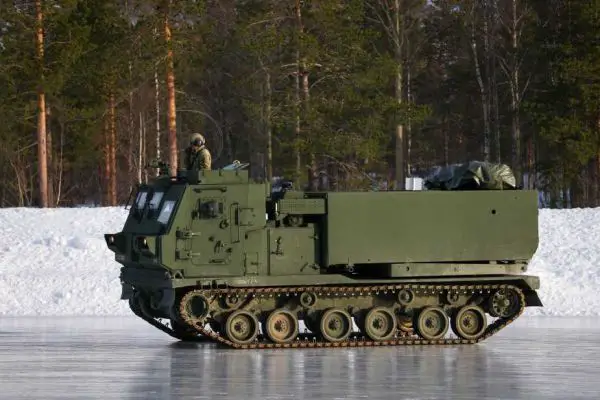

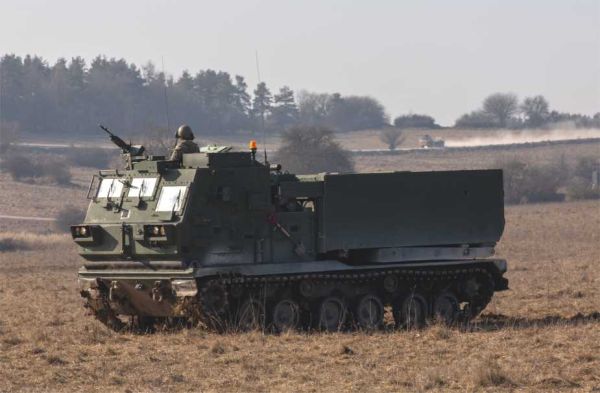

  The M270A2 MLRS is built on a heavily armored tracked chassis derived from the Bradley Fighting Vehicle family, providing a robust platform capable of combining high firepower, crew protection, and battlefield survivability. The vehicle consists of three main sections: the driver's compartment located at the front left of the hull, the armored crew compartment positioned at the front of the vehicle, and the dual-pod launcher module mounted at the rear. This proven design allows the M270A2 to operate alongside armored combat formations while delivering long-range precision fire support against targets deep within enemy territory.

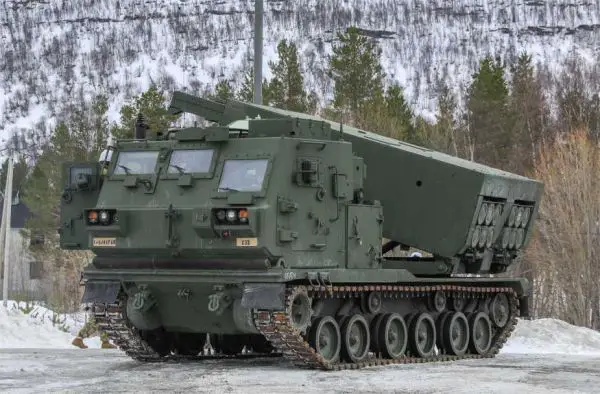

  One of the key enhancements introduced with the M270A2 modernization program is the redesigned armored crew cab. The upgraded cabin provides improved protection against small-arms fire, artillery shell fragments, blast effects, and other battlefield threats encountered during modern combat operations. These improvements enhance crew survivability and enable the launcher to operate more effectively in contested environments while maintaining a high level of mission readiness.

  The M270A2 is operated by a crew of three consisting of a commander, gunner, and driver. All crew members are accommodated within the armored compartment, which features modern ergonomic workstations, digital displays, integrated communications equipment, and advanced mission management systems. The improved crew environment increases operational efficiency while reducing operator workload during extended missions.

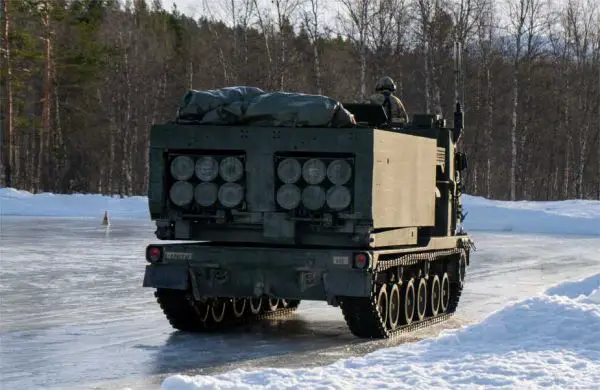

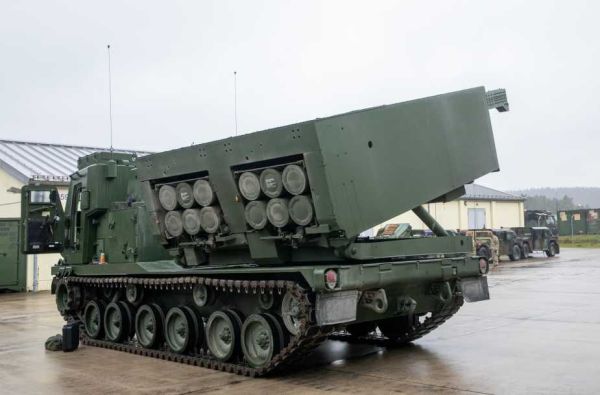

  At the rear of the vehicle, the launcher module accommodates two interchangeable launch pod containers. Each pod can be loaded with six 227 mm MLRS family rockets or one tactical missile, allowing the system to carry a maximum payload of twelve rockets or two missiles. The launcher is compatible with the full range of current and future MLRS Family of Munitions (MFOM), including GMLRS, ER GMLRS, ATACMS, and Precision Strike Missile (PrSM) munitions. Combined with its armored design, modernized architecture, and enhanced crew protection, the M270A2 remains one of the most capable and survivable rocket artillery systems in service with the United States and allied armed forces worldwide.

• Mobility

  The M270A2 MLRS is powered by a 600-horsepower Cummins diesel engine coupled to an upgraded automatic transmission, providing improved reliability, performance, and maintainability compared to previous MLRS variants. The modernization program includes enhancements to the powertrain, transmission, and driveline components, ensuring continued operational readiness and long-term supportability. These upgrades improve acceleration, maneuverability, and overall vehicle performance while reducing maintenance requirements.

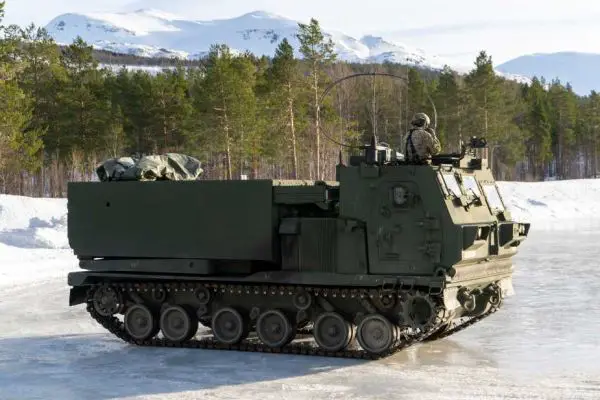

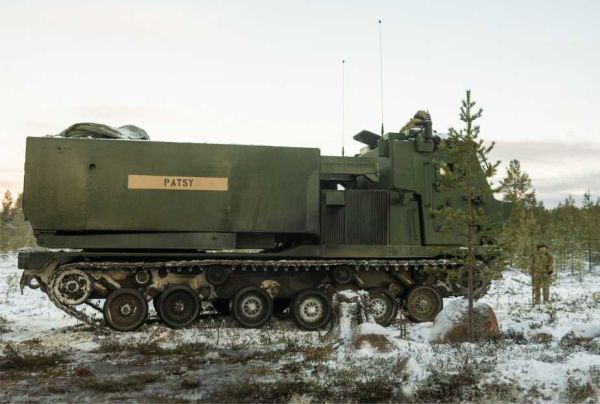

  The vehicle uses a tracked chassis derived from the Bradley Fighting Vehicle family and is equipped with a torsion-bar suspension system designed to provide excellent mobility across a wide range of terrain. Each side of the vehicle features seven dual rubber-tired road wheels, a front idler wheel, a rear drive sprocket, and return rollers supporting the track assembly. Hydraulic shock absorbers fitted to selected road wheel stations improve ride quality, vehicle stability, and crew comfort during cross-country operations.

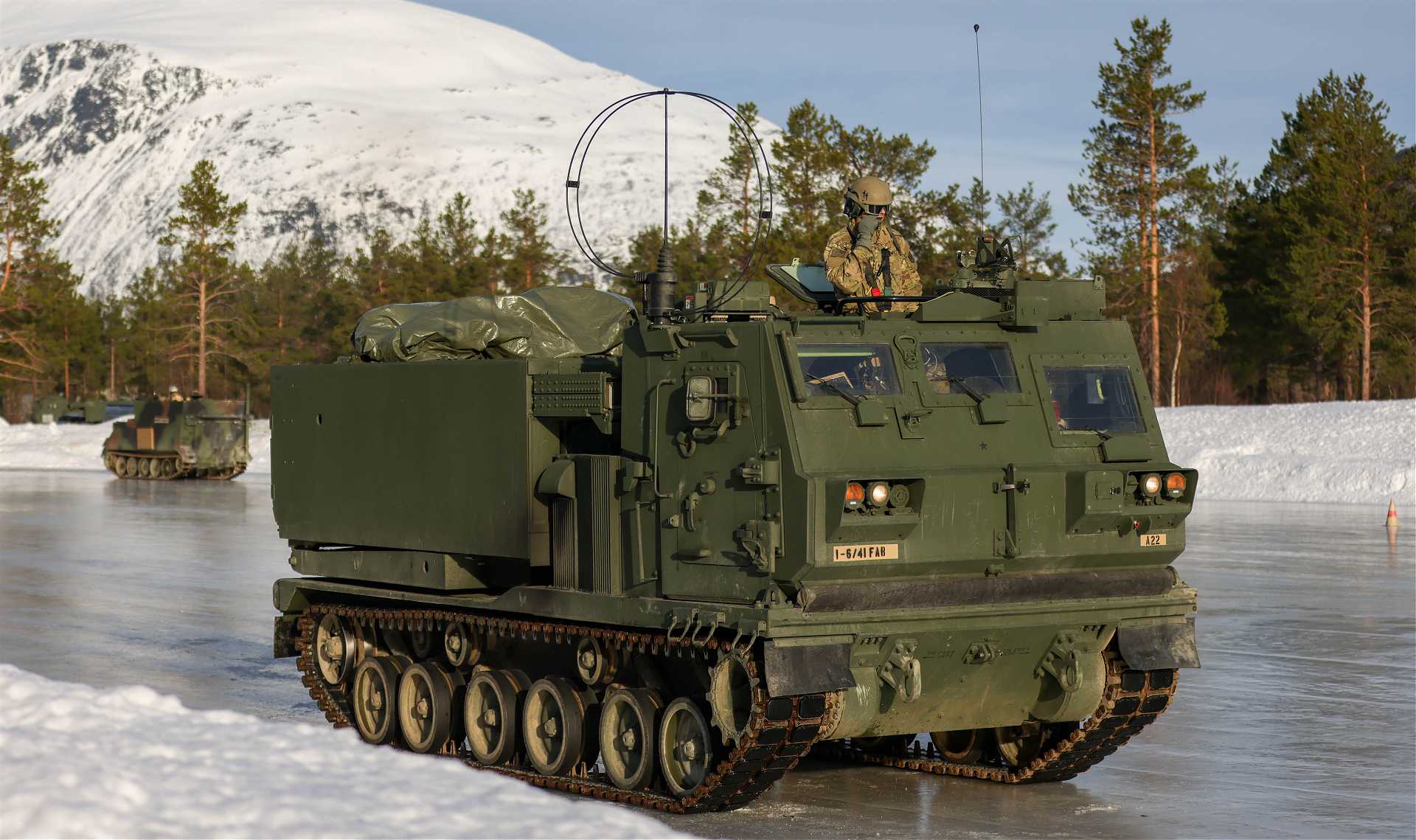

  The tracked configuration enables the M270A2 to operate effectively in difficult terrain conditions, including mud, sand, snow, rough ground, and other challenging environments where wheeled systems may be limited. The vehicle is capable of climbing gradients of up to 60%, traversing side slopes of up to 30%, crossing trenches up to 2.5 m wide, negotiating vertical obstacles approximately 0.9 m high, and fording water obstacles up to 1 m deep without preparation. The M270A2 can reach a maximum road speed of approximately 64 km/h and has an operational range of around 480 km without refueling. Its combination of cross-country mobility, protection, and firepower allows it to accompany armored maneuver forces while maintaining the ability to rapidly reposition between firing locations.

  A key operational advantage of the M270A2 is its ability to support "shoot-and-scoot" tactics. Following the launch of rockets or missiles, the vehicle can quickly relocate to a new firing position to reduce vulnerability to enemy counter-battery fire, drone surveillance, and precision strikes. This mobility, combined with long-range precision-strike capabilities provided by GMLRS, ER GMLRS, ATACMS, and Precision Strike Missile (PrSM) munitions, significantly enhances battlefield survivability and operational effectiveness in modern high-intensity combat operations.

• Combat Equipment

  The M270A2 MLRS is equipped with the Common Fire Control System (CFCS), the latest generation fire control architecture developed for the U.S. Army's Multiple Launch Rocket System family. The CFCS replaces legacy fire control components and provides full compatibility with current and future MLRS Family of Munitions (MFOM), including Guided Multiple Launch Rocket System (GMLRS), Extended-Range GMLRS (ER GMLRS), Army Tactical Missile System (ATACMS), and Precision Strike Missile (PrSM) munitions. The system significantly improves targeting speed, engagement accuracy, mission planning, and operational flexibility while reducing crew workload.

  For navigation and targeting, the M270A2 integrates a Global Positioning System (GPS) and an Inertial Navigation System (INS), enabling highly accurate self-location and precision engagement of targets under a wide range of battlefield conditions. The onboard mission computer automatically calculates firing solutions, launcher orientation, and ballistic data, allowing rapid execution of fire missions with minimal preparation time. The advanced digital architecture also supports future software upgrades and the integration of emerging precision-guided munitions.

  The launcher is fully integrated into modern network-centric command and control environments and can exchange targeting and operational data with artillery command posts, reconnaissance assets, unmanned aerial systems, and joint force networks. Secure digital communications systems support encrypted voice and data transmission, enabling real-time battlefield coordination and rapid dissemination of targeting information. This capability allows the M270A2 to engage time-sensitive and high-value targets with exceptional responsiveness and accuracy.

  The combination of the Common Fire Control System, advanced navigation equipment, digital communications architecture, and compatibility with the latest long-range precision strike munitions ensures that the M270A2 remains one of the most technologically advanced rocket artillery systems in service with the United States and allied armed forces. Its network-enabled capabilities provide commanders with a highly responsive and effective deep-fire asset that supports modern multi-domain operations.
