Azerbaijan deploys new Chinese HQ-9BE air defense systems to extend range beyond Russian S-300 limits.

On September 30, 2026, Azerbaijan officially displayed its newly acquired Chinese-built HQ-9BE long-range surface-to-air missile system at the ADEX 2026 defense exhibition in Baku. This integration expands the nation's maximum aircraft interception range to 260 km, complementing existing Russian and Israeli air defense assets.

The HQ-9BE system features a 260 km range against aircraft, utilizing a two-stage solid-propellant missile guided by inertial navigation, command correction, and terminal active radar homing. This procurement diversifies Azerbaijan's air defense architecture alongside its S-300PMU-2, Buk, and Barak systems.

Related topic: Azerbaijan receives China’s latest HQ-9BE air defense missile system ahead of military parade

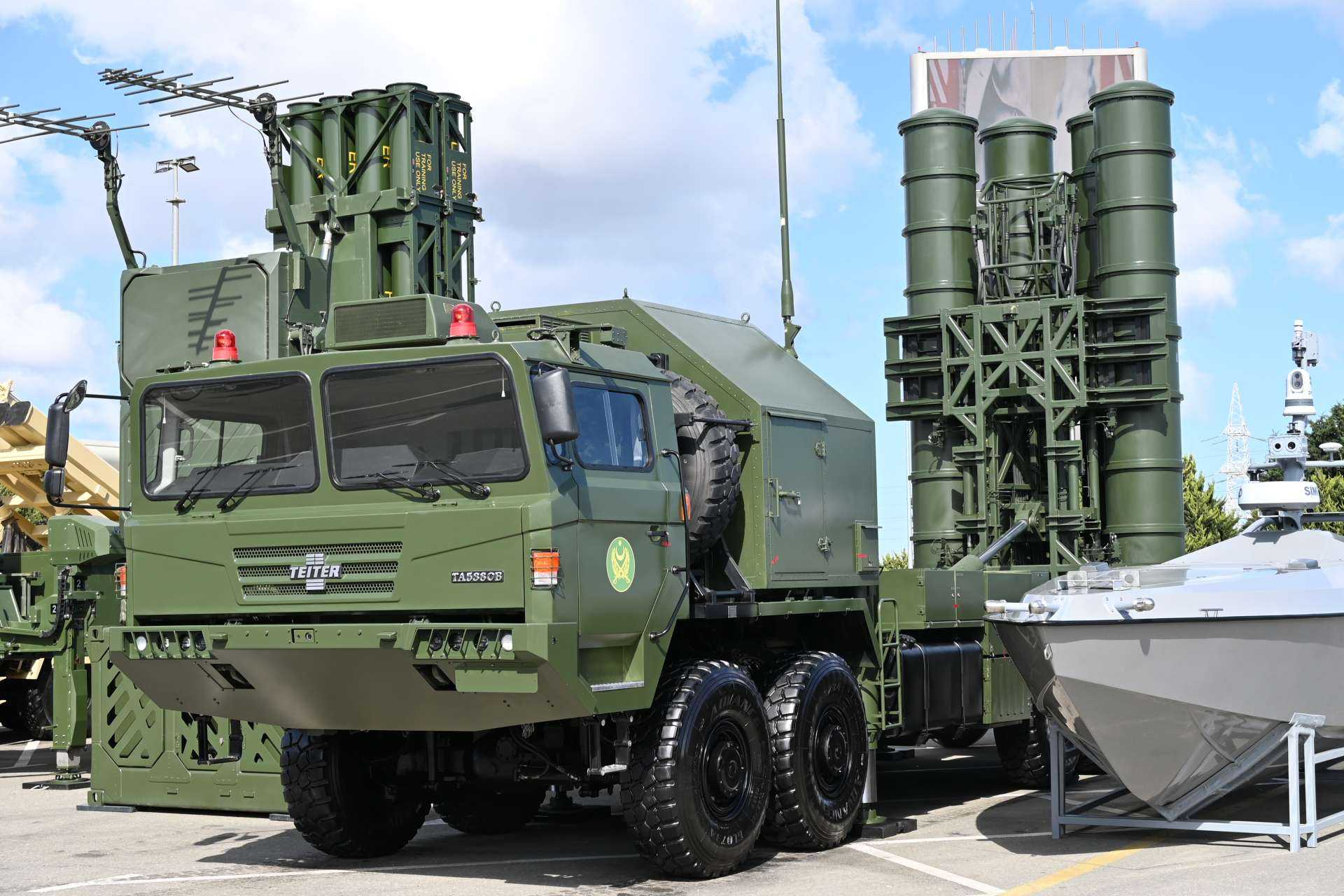

Azerbaijan introduced the Chinese HQ-9BE in 2025 to add a 260 km long-range air defense layer beyond its 200 km Russian S-300PMU-2 inventory. (Picture source: Army Recognition)

On September 30, 2026, Azerbaijan displayed its HQ-9BE long-range surface-to-air missile (SAM) system at ADEX 2026 in Baku, after officially presenting the newly inducted Chinese system during the November 8, 2025 Victory Parade alongside S-300 Favorit, Buk-MB/Buk-MB2K, Tor-2M, S-125TM, and Viking air defense systems. At least two HQ-9BE TELs had appeared during rehearsals on November 4, only eight months after the export variant's February 2025 international presentation in Abu Dhabi. The acquisition raises Azerbaijan's maximum aircraft interception range from 200 km with the S-300PMU-2's 48N6E2 missile to 260 km, a 60 km (30% increase), but the HQ-9BE reaches only 100 km against tactical air-to-ground missiles and 25 km against cruise and tactical ballistic missiles.

It therefore adds a Chinese long-range layer to an inventory already combining at least two S-300PMU-2 divisions, two S-200 batteries, Buk-M1/Buk-MB, Tor-M2E/Tor-M2KM, S-125/Pechora, Spyder and Barak-family systems. ADEX 2026 itself runs from September 30 to October 2 at the Baku Expo Center, with more than 270 companies from 29 countries and 14 national pavilions, including China. Each HQ-9BE TEL carries four large launch canisters for the HQ-9 interceptor, which is 6.8 to 7 m long, weighs close to 2,000 kg, carries a 180 kg warhead, and uses two solid-propellant stages measuring about 700 mm and 560 mm in diameter. Maximum speed is Mach 4 to 4.2, while the HQ-9BE's guidance combines strapdown inertial navigation, low-rate command correction, and terminal active radar homing, meaning the interceptor does not depend on a single guidance method throughout its trajectory.

Its engagement envelope varies sharply by target: aircraft can be engaged from 5 to 260 km and between 50 m and 20 km in altitude; tactical air-to-ground missiles from 5 to 100 km and 1 to 18 km in altitude; cruise missiles only from 7 to 25 km but down to 25 m altitude; and tactical ballistic missiles (TBMs) from 5 to 25 km with interception possible up to an altitude of 20 km. Thus, an aircraft at a favorable altitude can theoretically be engaged at more than ten times the maximum distance applicable to a cruise missile, and at more than twice the original HQ-9's 120 km range, and slightly more than the 250 km range associated with the export-oriented FD-2000B. The fire-control architecture places a separate quantitative ceiling on the battery regardless of how many missiles are physically available.

Against non-TBM targets, an HQ-9BE fire unit can simultaneously control 16 interceptors against eight targets, or eight missiles against four tactical ballistic missiles, which corresponds to two missiles per target if all channels are used in paired engagements. Four fully loaded four-round TELs therefore contain exactly the 16 missiles needed for one maximum non-TBM engagement, while two TELs contain the eight rounds required for the maximum TBM engagement. A six-TEL battery carries 24 ready missiles, so a single 16-missile salvo would consume two-thirds (66.7%) of its launcher inventory; an eight-TEL battery carries 32 and would expend half (50%). If two interceptors are routinely assigned per target, the theoretical magazine becomes 12 paired engagements for six TELs or 16 for eight TELs before reload, although only eight non-TBM targets or four TBMs can be engaged simultaneously.

Reaction time is specified by CPMIEC at more than 15 seconds against non-TBM targets and more than 10 seconds against TBMs, and the system incorporates a radar active-decoy capability. Launcher numbers consequently determine magazine depth, while radar and guidance channels determine how much of that magazine can be used simultaneously. Each TEL uses a Taian TA580/TAS5380 8×8 truck chassis approximately 11 m long, 3 m wide and 3 m high, with a payload capacity rated at 20 tonnes, a 517 hp turbocharged Deutz diesel engine, a maximum road speed of 80 km/h and a road range of 800 km. The four missiles are carried vertically and cold-launched, allowing engagement in any azimuth without mechanically turning the launcher toward the target, as the missile is expelled from the canister before its propulsion system takes over.

A Fire Unit (FU) extends beyond its six-to-eight TELs and includes a guidance radar, a target designation radar, a C2 vehicle, a positioning and orientation vehicle, a radar decoy, missiles-in-container, a 200 kW/220 V power vehicle, a 400 kW/50 Hz power vehicle, maintenance equipment and training equipment. The two TELs seen in Baku before the 2025 parade consequently represented eight missile canisters if fully loaded, but did not reveal whether Azerbaijan received six TELs, eight TELs, multiple Fire Units, or additional reload vehicles and missiles. The direct comparison with Azerbaijan's S-300PMU-2 inventory shows both what HQ-9BE changes and what it does not. The 48N6E2 provides a maximum aircraft engagement distance of about 200 km, while HQ-9BE reaches 260 km against the same broad target category.

If both were placed at the center of an unconstrained flat engagement circle, the 200 km radius would cover 125,664 km² versus 212,372 km² at 260 km, an 86,708 km² (69%) increase, although terrain, radar horizon, target altitude, and deployment position reduce usable coverage. It is especially misleading for low-flying missiles: the HQ-9BE range falls to 100 km against air-to-ground weapons to 25 km against cruise missiles and TBMs, so Azerbaijan still requires Buk, Tor, Spyder, Barak, and other shorter-range systems to cover threat sets for which using a long-range interceptor would either be impossible because of the engagement geometry or inefficient in ammunition terms. Integration also requires Chinese HQ-9BE, Russian S-300/Buk/Tor, and Israeli systems to exchange or reconcile radar tracks, identification, engagement assignments and secure communications across different C2 architectures.

If the HQ-9BE is meant to supplement the S-300PMU-2, Azerbaijan gains another long-range missile; if it replaces it, the country exchanges an established Russian support chain for a separate Chinese one. The same supplier shift is visible in combat aviation, as Azerbaijan is introducing the JF-17C Block III fighter alongside Russian-made MiG-29s and Su-25s, with five newly inducted JF-17s participating in the November 2025 Baku parade. Azerbaijan has the fiscal base to sustain a broader procurement structure than it did two decades ago: its 2025 defense budget was about $5 billion, equivalent to 5.26% of GDP, compared with about $300 million in 2005 and $2.46 billion budgeted in 2009. The actual HQ-9BE expenditure remains unclear because figures associated with the system range from roughly $200 million for a battalion to $1.5 billion for a regiment, while a figure near $300 million has been associated with Azerbaijan.

Those numbers cannot be converted into a reliable Azerbaijani unit price because an air defense contract can include different quantities of TELs, engagement and surveillance radars, command vehicles, reload missiles, training, spare parts, and long-term support. The measurable procurement trend is subsequently diversification: China supplies the HQ-9BE, China and Pakistan the JF-17C, Israel the Barak/Spyder, while Russian and Belarusian systems remain important within the S-300, Buk, and Tor inventory. Azerbaijan also joins an HQ-9 export base containing several different configurations rather than one standardized missile.

Morocco acquired four FD-2000B/HQ-9BE batteries; Pakistan inducted the HQ-9/P on October 14, 2021, with a range of about 125 km against aircraft and 25 km against cruise missiles, then added the HQ-9BE alongside the HQ-16FE and the LY-80. Egypt confirmed deployment of HQ-9Bs in 2025, Turkmenistan and Uzbekistan operate earlier FD-2000 variants, and Serbia revealed an HQ-9 procurement in June 2026. China itself had 196 HQ-9 and 96 HQ-9B systems listed in 2024, excluding unspecified HQ-9C and naval HHQ-9 quantities. What is still required to quantify the force is Azerbaijan's number of Fire Units, TELs per unit, reload missiles, guidance radars, Target Designation Radars, deployment sites, and planned S-300PMU-2 retirement schedule.
