Russian T-80BVM Emerges With Layered Anti-Drone Protection Built to Counter Multi-Angle FPV Attacks.

A newly photographed Russian T-80BVM main battle tank appears with a significantly expanded anti-drone protection package, according to imagery circulating online on August 3, 2026, highlighting how Moscow continues adapting its armored fleet to counter the growing threat posed by multi-angle FPV drone attacks. Although the image’s origin and the vehicle’s status remain unconfirmed, the redesigned protection system suggests a shift toward layered, all-round survivability rather than relying primarily on frontal armor.

The upgraded tank features a much larger turret-mounted anti-drone cage, reinforced hull skirts and more continuous protection around the turret, creating a deeper defensive envelope against attacks from multiple directions. If adopted for series production, the configuration would reflect the broader evolution of armored warfare, where resisting persistent drone strikes has become as critical to battlefield effectiveness as firepower and mobility.

Related Topic: Russia’s T-90M Arena-M Sighting Reveals How Drone Warfare Is Driving the Evolution of Tank Survivability

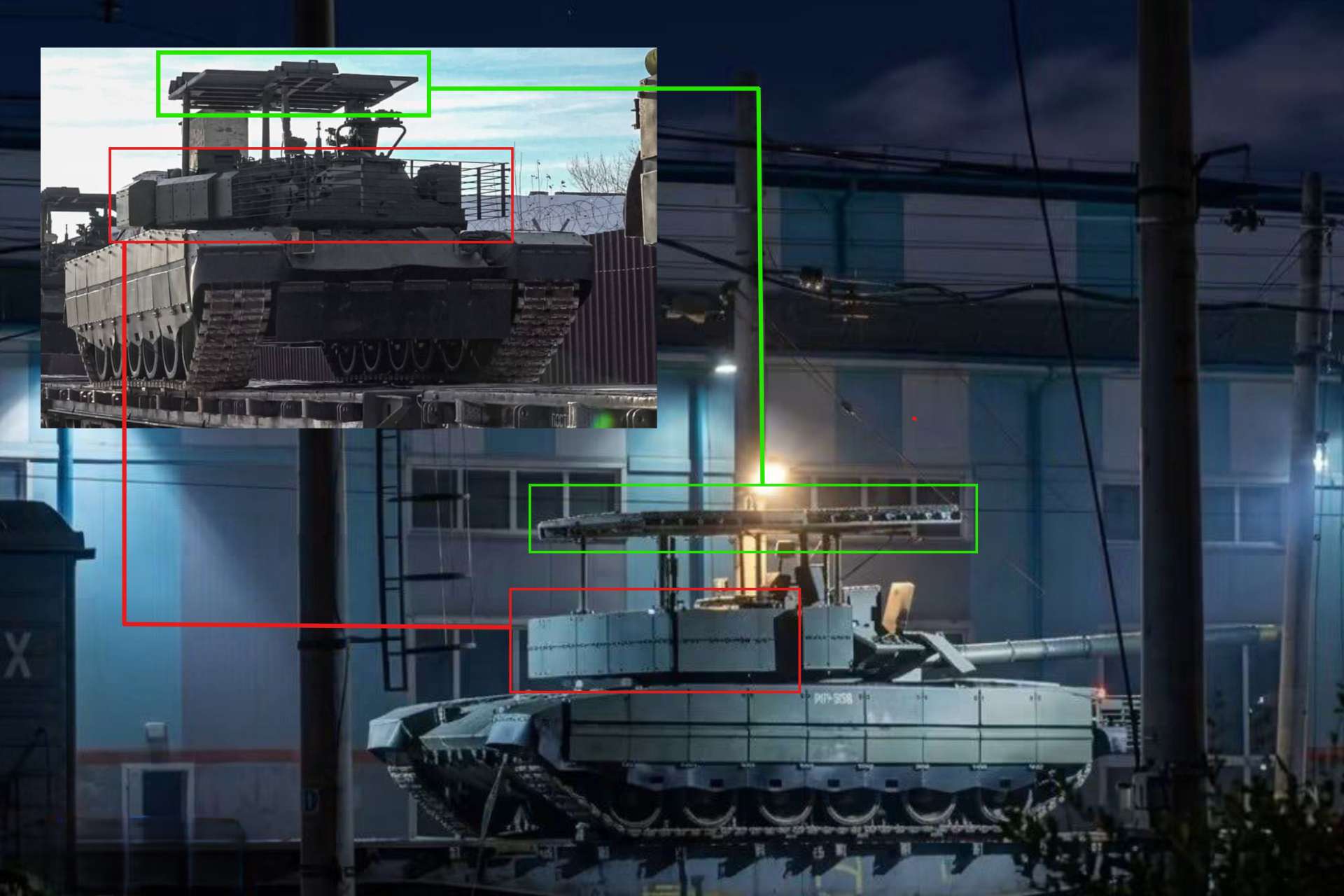

A newly photographed Russian T-80BVM appears to feature a significantly expanded anti-drone cage and layered armour designed to counter FPV attacks from multiple directions (Picture Source: Russian Social Media / Edited By Army Recognition Group)

On August 3, 2026, a new image circulating online appeared to show a modernized Russian T-80BVM main battle tank transported on a railway flatcar with a substantially redesigned protection package. A visual comparison with previously delivered T-80BVMs highlights an enlarged anti-drone cage, reinforced hull skirts and more continuous armour around the turret. The image’s original source, location and destination remain unknown, while Russian authorities have not confirmed whether the vehicle represents a prototype, a limited-series modification or a new production standard.

The vehicle retains the T-80BVM’s defining architecture, including its low-profile turret, six-road-wheel chassis and 125 mm smoothbore main gun. The established modernization standard incorporates a 1,250-horsepower GTD-1250 gas-turbine engine, the Sosna-U multichannel gunner’s sight and Relikt modular explosive reactive armour. Previously delivered vehicles shown in the comparison image carried a smaller raised roof screen, rectangular modules along the turret sides and a largely open grille structure around the rear quarter. The newly photographed tank appears to develop that arrangement into a more integrated defensive envelope, with fewer obvious openings around the turret and substantially greater stand-off coverage above it.

Massive “Mangal” Armour

The most visible improvement is the redesigned turret-mounted anti-drone cage, commonly referred to by Russian troops as a “mangal,” or barbecue grill. Unlike the earlier canopy, which protected a relatively confined area above the turret, the new structure projects considerably farther toward the front, sides and rear. Its wide, almost platform-like roof creates a larger stand-off zone between an incoming first-person-view drone and the thinner upper armour. The structure may disrupt a drone’s flight path, alter its impact angle or cause a shaped-charge warhead to initiate before reaching the turret roof. Its extended edges could also complicate shallow and oblique attack profiles aimed at the turret ring, crew hatches or upper hull rather than only vertically descending strikes. The regular spacing and comparatively uniform construction suggest a more deliberate engineering solution than many improvised cages assembled at unit level, although its production status cannot be established from one image.

An equally important change is visible around the turret’s lateral, upper and rear sectors. On the previously delivered T-80BVM, much of the rear turret area was surrounded by open steel grilles, leaving visible spaces between the stand-off structure and the underlying turret. The new vehicle appears to supplement, or replace substantial portions of, that open arrangement with large rectangular panels extending along the sides and toward the rear quarter. These modules form a more continuous protective belt and reduce the number of direct approach corridors available to an FPV drone. Combined with the enlarged overhead cage, the configuration appears intended to create near-continuous 360-degree geometric coverage against threats arriving from the front, flanks, rear and elevated oblique angles. This should not be interpreted as complete 360-degree immunity, however, because the opposite side, turret roof interfaces and rear-most sector are not fully visible.

The transition from exposed rear grilles to rectangular panels may indicate a broader shift from basic stand-off barriers toward layered turret protection. Open grilles are primarily intended to interfere with a munition’s body or fuzing sequence before direct impact, whereas a solid module can potentially combine stand-off distance with passive armour, non-explosive composite material or explosive reactive elements. The newly visible panels could therefore provide an additional defensive layer after the outer cage has been penetrated. Their exact composition cannot be identified from the photograph, and the rectangular appearance alone is insufficient to classify every unit as reactive armour. Nevertheless, their placement is significant: they reinforce the turret sides and rear, sectors historically protected to a lower standard than the frontal arc but increasingly exposed to manoeuvrable drones capable of selecting their direction of attack.

The turret modifications are accompanied by an upgraded hull-side armour package. Large, closely aligned panels cover most of the upper track run and conceal a greater portion of the suspension than on older T-80 configurations. The forward side sections also appear heavily reinforced, while the panels continue along the central hull with fewer exposed gaps. This arrangement could improve protection against shaped-charge weapons and FPV drones directed at the upper tracks, hull flanks or space above the road wheels. The protection concept therefore appears to involve several sequential layers: the overhead cage attempts to intercept or destabilize the attacking drone, the turret and side modules confront the warhead, and the tank’s original steel and composite armour forms the final barrier. The photographed vehicle does not appear to eliminate vulnerable areas around the running gear, engine deck, optics or cage supports, but it considerably narrows the number of unobstructed attack paths compared with earlier configurations.

Protection Gains and Engineering Trade-Offs

The expanded package is likely to impose operational and mechanical penalties. Armour modules mounted around the turret’s outer perimeter add not only weight but also rotational inertia, potentially increasing loads on the turret drive and affecting traverse acceleration or braking. The enlarged cage raises the vehicle’s silhouette and could complicate movement through forests, narrow urban passages, damaged structures and areas containing overhead cables. Designers must also prevent the structure from obstructing crew escape routes, gun elevation, optical fields of view, antennas and access to turret-mounted equipment. Additional hull-side protection could increase suspension and track wear, while the T-80’s gas-turbine engine may face higher fuel demand as combat weight rises. Rostec identifies the GTD-1250 as a defining element of the T-80BVM’s mobility, but no verified figures are available for the weight or performance impact of this specific armour configuration.

The fact that the tank is shown on a railway flatcar with the enlarged cage apparently installed is itself noteworthy. This may suggest that the structure was designed to remain within Russian railway loading dimensions, although parts of it could also be foldable, detachable or awaiting final assembly. Transporting the protection package already mounted would reduce preparation time after delivery, but the image does not reveal whether the tank was moving toward an operational formation, a proving ground or another industrial facility. The configuration is nevertheless consistent with Rostec’s broader description of Russian tanks being continuously modified in response to combat experience. Rostec’s July 2026 material on the T-80 also emphasized the platform’s continuing development, while its retrospective marking the Klimov design bureau’s 80th anniversary highlighted the bureau’s creation of the original GTD-1000T gas turbine that established the T-80’s distinctive propulsion lineage.

The railway image points to a notable evolution in the T-80BVM’s protection philosophy. Instead of relying principally on a limited roof screen and open rear grilles, the new configuration appears to combine an extended “mangal,” reinforced hull skirts and rectangular modules covering the turret’s sides, upper sectors and rear quarter. The resulting arrangement is an apparent attempt to create near-360-degree protection against FPV drones and other weapons approaching from multiple directions and altitudes. Whether it represents a standardized production upgrade or delivers a measurable improvement under combat conditions remains unconfirmed, but its design reflects a fundamental change in armoured warfare: survivability is now shaped not only by the strength of a tank’s frontal armour, but by its capacity to resist persistent attacks against every exposed surface.
