U.S. Missile Defense Uses Northrop Grumman’s OUTMATCH to Expose Ground-Based Interceptor Weak Links.

Northrop Grumman has expanded its OUTMATCH mission-engineering capability to simulate complete U.S. missile-defense engagements, according to a company data sheet approved for public release in 2025. By linking missile behavior, sensor performance and command-and-control logic, the system helps expose weaknesses before they affect Ground-based Midcourse Defense operations.

OUTMATCH combines six-degree-of-freedom aerodynamic models, trajectory calculations, infrared signatures, radar-cross-section data and automated validation in a single test environment. This allows planners to assess how sensors, communications, fire-control software and interceptors work together, improving modernization, ground testing and operational wargaming at Schriever Space Force Base.

Related topic: Iran Says It Was Preparing to Strike Three Ukrainian Targets With Ballistic Missiles.

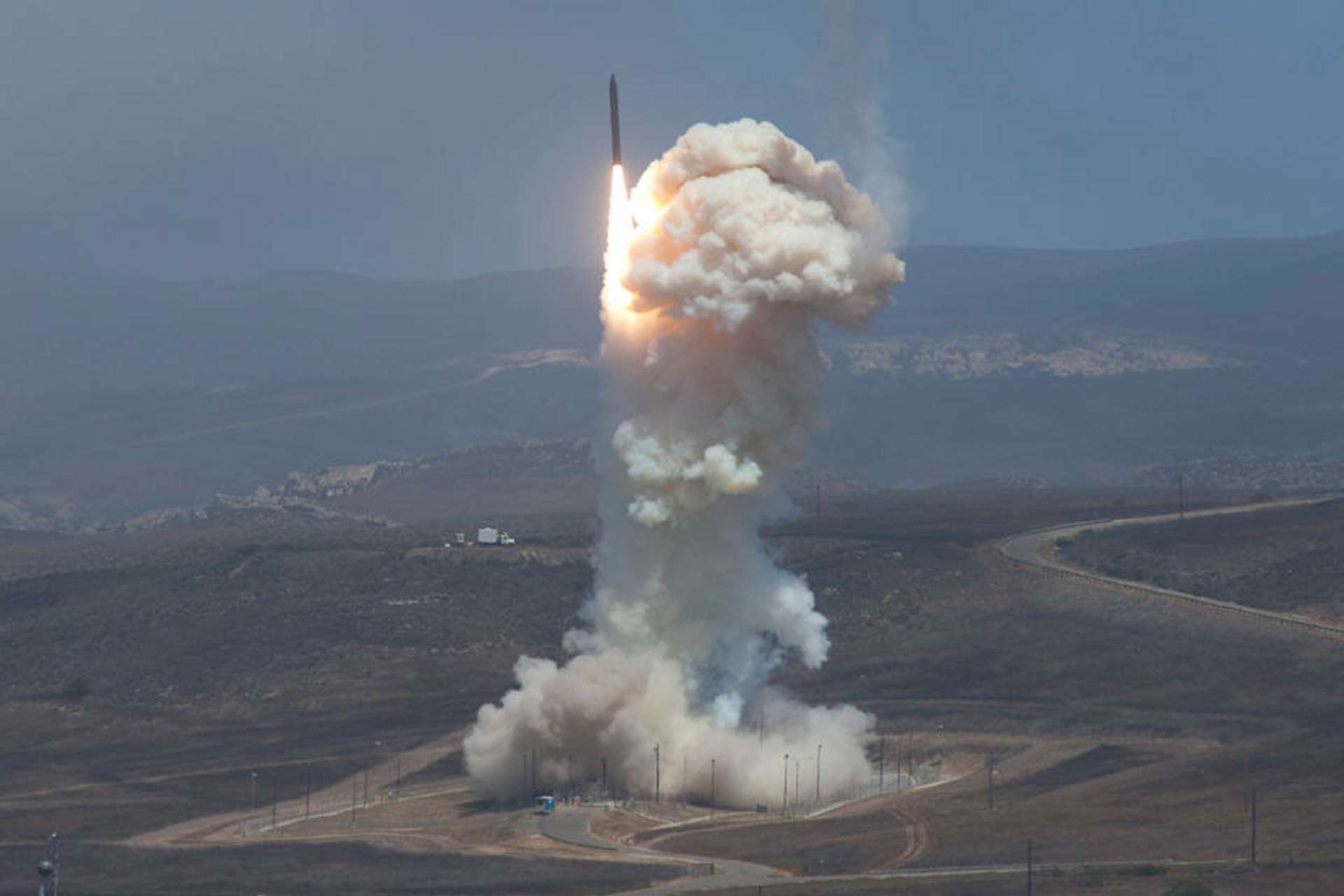

Northrop Grumman's OUTMATCH simulation environment models Ground-Based Interceptor engagements, sensor performance, and command-and-control functions to support modernization of the U.S. Ground-based Midcourse Defense system (Picture source: U.S. DoW).

A six-degree-of-freedom model calculates translation along three axes and rotation around roll, pitch and yaw. For a defensive missile, that permits engineers to represent booster thrust, changing mass as propellant burns, aerodynamic loading, stage separation, attitude-control authority, guidance commands and seeker pointing throughout the engagement. The model can then be connected to representations of radar detection range, track accuracy, communication delay, electronic attack and target signatures. OUTMATCH is intended to federate models at different levels of detail rather than force every component into one monolithic simulation. That is useful when a mature radar model, a developmental interceptor model, and an intelligence-derived threat model must be exercised together without rebuilding each one.

The relevant armament is the Ground-Based Interceptor, a silo-launched missile used by the Ground-based Midcourse Defense system against intermediate- and long-range ballistic missiles outside the atmosphere. The interceptor uses a multistage solid-propellant boost vehicle carrying an Exoatmospheric Kill Vehicle, which has infrared sensing, guidance electronics, and a divert-and-attitude-control assembly. It does not use an explosive warhead; destruction is achieved by placing the kill vehicle on a collision course with the selected re-entry vehicle. The current Capability Enhanced-II Block 1 configuration can use a three-stage booster in a two-stage mode, withholding ignition of the third stage and releasing the kill vehicle earlier. MDA demonstrated a closer-range engagement option during FTG-12 on December 11, 2023.

Operationally, the interceptor is only the terminal component of a longer sequence. Space-based warning sensors and terrestrial radars detect the launch, develop a track, and attempt to distinguish the warhead from the booster, debris, and countermeasures. GMD Fire Control generates the engagement plan; the Ground Support System calculates and loads the interceptor’s flight data; and the Phased-Array Interceptor Communication System transmits updated target information after launch. Because the midcourse phase can last up to approximately 20 minutes, commanders may have more than one firing opportunity, but the available decision time shrinks as tracking uncertainty, communications latency, or delayed discrimination consumes the engagement window. Simulation therefore tests not simply whether the missile can reach the target, but whether the complete kill chain can produce usable data soon enough.

The modernization is principally aimed at making this kill chain adaptable to new interceptors, sensors, and threat characteristics without replacing the entire ground architecture. On July 29, 2022, the Pentagon awarded Northrop Grumman an indefinite-delivery/indefinite-quantity contract with a ceiling of $3.287 billion to design, develop, test, and field the next GMD Weapon System. The contract specifically covers integration of the Next Generation Interceptor and calls for greater reliability, availability, maintainability, and testability. The company’s role is centered on fire control, ground support, communications, and system integration rather than on presenting OUTMATCH as a new interceptor.

Simulations are important partly because the live-test program cannot provide enough observations to cover the operational problem statistically. A single intercept test examines one target trajectory, one sensor geometry, one interceptor configuration, and a limited set of countermeasures. GAO reported in 2020 that MDA executed only 37 percent of its originally planned baseline flight tests between fiscal years 2010 and 2019, with delays attributed to development problems, range availability, target availability, and changing objectives. Ground simulations can instead repeat an engagement thousands of times while varying launch position, radar accuracy, target signature, component failure, interceptor availability, and firing doctrine. Those runs can identify combinations that produce poor results even when the nominal case succeeds.

The limitation is that a high volume of computer-generated results does not compensate for an inaccurate model. Threat signatures, seeker behavior, propulsion performance and discrimination algorithms must be anchored to hardware-in-the-loop testing, telemetry and representative targets. Northrop Grumman says it has delivered 25 intermediate- and intercontinental-range target vehicles supporting ten successful end-to-end demonstrations since 2011. Its Modified Ballistic Re-Entry Vehicle-11 is intended to reproduce more demanding re-entry characteristics for future testing. Such targets provide the empirical data needed to determine whether a digital engagement reflects physical behavior.

The acquisition value of OUTMATCH will therefore depend less on visual sophistication than on model pedigree, configuration control, and independent verification. GAO warned in June 2024 that planned Next Generation Interceptor simulations did not yet fully represent stressing operational conditions; subsequent Pentagon direction required risk-reduction measures, and MDA later increased planned modeling-and-simulation funding by roughly $100 million annually. The practical objective is not to replace flight testing, but to use simulation to select the most informative flight-test conditions, expose integration failures earlier, and quantify uncertainty before production decisions are made. For Congress and operational commanders, those are measurable outcomes: fewer untested assumptions, better-defined engagement boundaries, and clearer evidence that software or hardware changes improve defensive capacity.
