P-8A Poseidon.

Technical Data

• Design

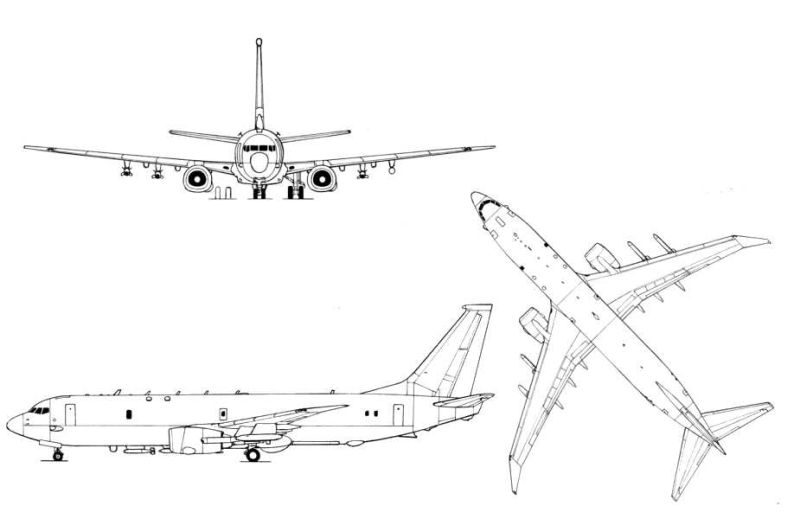

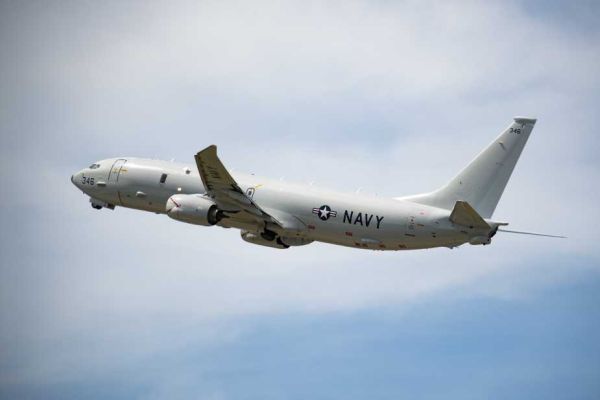

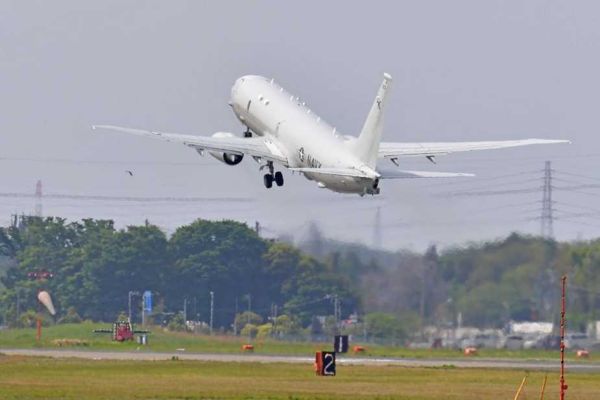

  The Poseidon P-8A features a structurally reinforced airframe based on the Boeing 737-800ERX platform, with military modifications including a sealed internal weapons bay, raked wingtips, and underwing hardpoints for external stores. The fuselage is strengthened for low-altitude operations and rapid maneuvers. The aircraft accommodates nine crew members, comprising two pilots, three naval flight officers (NFOs), and four enlisted aircrew operators in the mission systems compartment. The flight deck and mission cabin are fully pressurized and climate controlled, enabling operations up to 41,000 feet.

• Armament

  The Poseidon P-8A is armed for both subsurface and surface warfare roles. The aircraft’s internal bomb bay can house Mk 54 lightweight torpedoes, depth charges, and naval mines, while its four underwing pylons are compatible with AGM-84D Harpoon Block II anti-ship cruise missiles. The Poseidon can deploy up to 129 sonobuoys via a rotary launch system and can simultaneously process multiple acoustic targets. Fire-control is governed by an open-architecture combat system that integrates onboard and offboard sensor data for precision targeting.

• Engine

  The Poseidon P-8A is powered by two CFM56-7B27A high-bypass turbofan engines, each delivering 121.4 kilonewtons (kN) of thrust. These engines are derived from the commercial CFM56 family and are modified to meet military specifications, delivering robust performance for extended maritime missions. The aircraft achieves a maximum speed of approximately 907 km/h (490 knots) and maintains a cruise speed of approximately 833 km/h (450 knots), enabling it to efficiently cover vast patrol areas.

  The Poseidon P-8A has a maximum operational altitude of 12,500 metres, allowing it to conduct high-altitude ISR as well as descend for low-level ASW runs. The aircraft features a ferry range exceeding 8,300 kilometres, while its combat radius surpasses 2,200 kilometres with four hours on station, making it suitable for long-duration missions over contested or remote maritime regions. The recent integration of air-to-air refueling capability significantly extends its endurance, allowing sustained operations during multi-day deployments or combat patrols.

  The Poseidon’s flight systems and airframe are optimized for both high-altitude efficiency and low-altitude robustness, with a strengthened fuselage and military-grade wing structures to withstand the stresses of tactical manoeuvring at lower altitudes. Its commercial heritage also ensures ease of maintenance and interoperability with existing global logistics networks, while the aircraft’s onboard systems maintain full functionality across extreme maritime environments.

  Onboard Equipment and Avionics
• Onboard Equipment and Avionics

  The Poseidon P-8A is outfitted with a highly integrated suite of mission systems, sensors, and avionics tailored for advanced maritime operations. At the core of its sensor package is the Raytheon AN/APY-10 multi-mode radar, which provides high-resolution synthetic aperture radar (SAR), periscope detection, inverse SAR (ISAR), and maritime surface search capabilities across wide areas and in adverse weather conditions. For visual surveillance and long-range target identification, the aircraft employs the L3Harris WESCAM MX-20HD electro-optical/infrared (EO/IR) turret, delivering stabilized imagery in both day and night operations.

  The Poseidon P-8A carries an internal sonobuoy processing suite capable of deploying and monitoring up to 129 active and passive sonobuoys simultaneously. The acoustic system integrates data in real-time through advanced onboard processors that support both single and multi-static operations, allowing for long-range submarine detection and classification. A specialized signal processing unit fuses inputs from the radar, EO/IR, ESM, and acoustic systems into a comprehensive maritime situational picture.

  The avionics architecture of the Poseidon P-8A is based on an open-systems modular design, allowing rapid integration of future upgrades and third-party systems. Its Integrated Mission Management System (IMMS) includes mission computers developed by BAE Systems and Northrop Grumman, coordinating sensor fusion, fire control, data distribution, and communications. The flight deck is derived from the Next-Generation 737 commercial cockpit but features military-grade modifications, including secure communications, tactical displays, and mission interface consoles.

  Communications and datalink capabilities include Link 16, INMARSAT SATCOM, UHF/VHF secure radios, and line-of-sight datalinks, ensuring seamless connectivity with other naval platforms, joint forces, and allied command structures. Defensive countermeasures include the AN/ALQ-240 Electronic Support Measures (ESM) suite for threat detection and geolocation, missile approach warning systems, and chaff/flare dispensers for self-protection in contested airspace.

  Overall, the P-8A’s avionics and mission systems enable it to operate as a high-capability node within multi-domain maritime strike and surveillance operations, capable of targeting submarines, surface vessels, and supporting battle-space management in coalition task forces.

• Combat Use

  The Poseidon P-8A has proven itself as a critical maritime asset in U.S. and allied operations. In Europe, it has tracked Russian nuclear submarines transiting through the GIUK gap and has provided ISR coverage over the Baltic and Black Seas during the Ukraine conflict. In the Pacific, the aircraft monitors People’s Liberation Army Navy (PLAN) activity in the South China Sea and the East China Sea, supporting regional deterrence and freedom-of-navigation patrols. The aircraft is central to coalition anti-submarine exercises, carrier strike group operations, and multi-domain intelligence gathering, reinforcing its role in maintaining maritime superiority.
