E-2D Advanced Hawkeye.

Technical Data

• Design

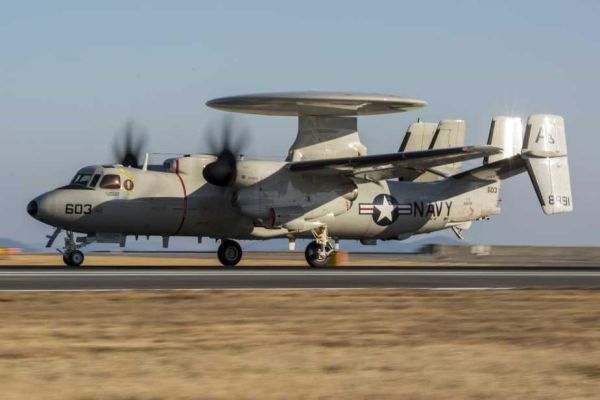

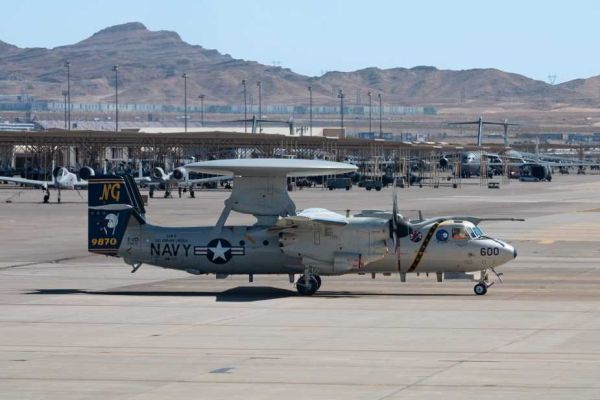

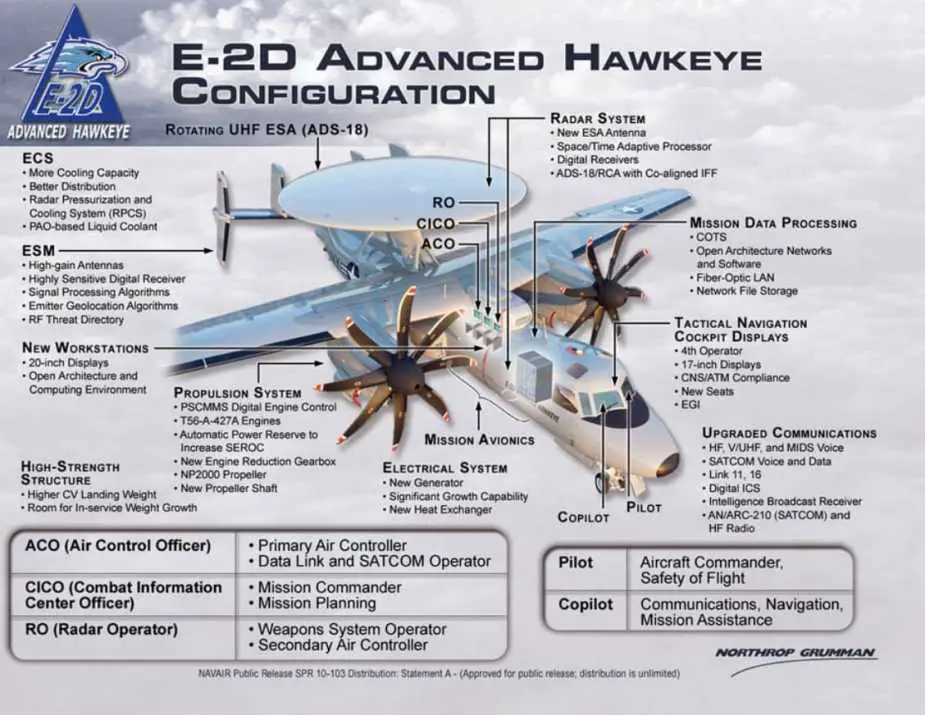

  The E-2D Advanced Hawkeye features a high-wing monoplane configuration centered around a large circular rotodome mounted above the fuselage on twin pylons. The aircraft has a length of 17.53 m (57 ft 6 in), a wingspan of 24.56 m (80 ft 7 in), and a height of 5.56 m (18 ft 3 in), while the rotodome measures approximately 7.32 m (24 ft) in diameter. The fuselage is built using reinforced semi-monocoque construction designed to withstand repeated catapult launches and arrested recoveries, and incorporates a tailhook at the rear for carrier operations. The forward section houses a pressurized cockpit, while the central and aft fuselage contain mission systems, avionics racks, and operator workstations.

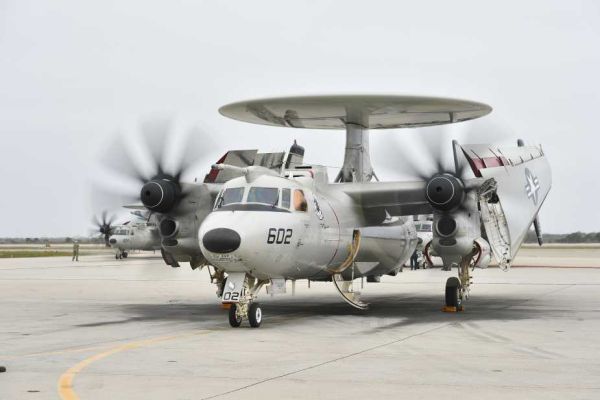

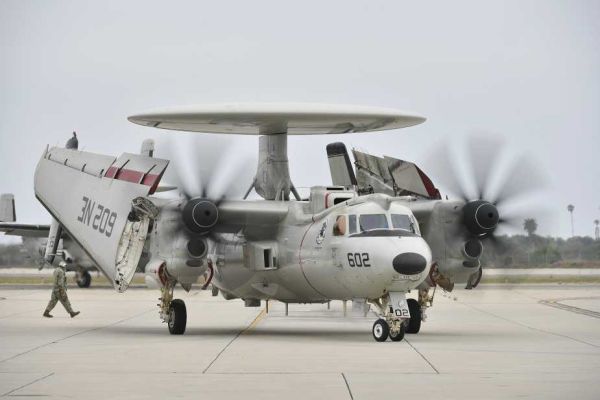

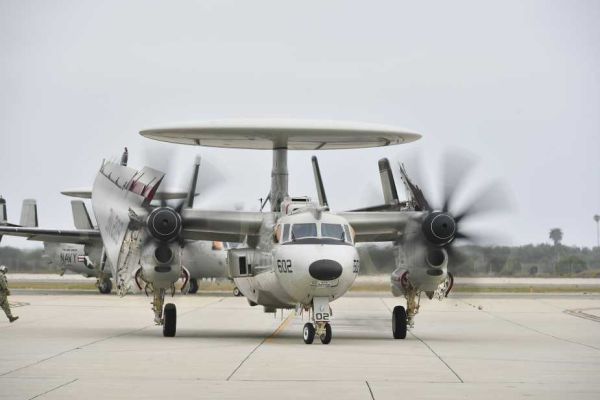

  The E-2D Advanced Hawkeye wings are mounted high on the fuselage and include folding outer panels to reduce deck footprint during carrier storage. The engine nacelles are mounted on the wings and positioned to optimize thrust distribution and maintenance accessibility. The tail assembly consists of four vertical stabilizers mounted on a horizontal stabilizer, a distinctive configuration that improves airflow management around the rotodome and enhances directional stability. The landing gear is a retractable tricycle arrangement, including a reinforced dual wheel nose gear for catapult launch and main landing gear units retracting into the nacelles, designed for high impact carrier landings. The aircraft carries a crew of five, including two pilots in the cockpit and three mission operators in the rear cabin.

• Optronics and Flight Systems

  The E-2D Advanced Hawkeye incorporates a fully digital glass cockpit equipped with large multifunction displays that integrate flight data, navigation information, and tactical inputs into a unified interface. The flight management system supports automated navigation, fuel optimization, and stable orbit control, which are essential for long-endurance surveillance missions. Advanced autopilot modes assist with precision flight control and reduce pilot workload during extended operations.

  E-2D Advanced Hawkeye uses a hybrid navigation architecture that combines inertial navigation and satellite positioning, with anti-jam capabilities, ensuring reliable performance in contested environments. The aircraft is compatible with automatic carrier landing systems, enabling precise recovery in low visibility conditions. While not equipped with dedicated targeting optics, the system provides advanced display symbology and sensor overlays that enhance situational awareness for both flight crew and mission operators.

• Command and Control Systems

  The E-2D Advanced Hawkeye is built around the AN/APY-9 active electronically scanned array radar, operating in the UHF band and providing continuous 360-degree coverage through a combination of mechanical rotation and electronic beam steering. This radar is optimized to detect low-observable aircraft, cruise missiles, and surface targets in complex environments, including sea clutter and electronic interference, representing a major advancement over earlier Hawkeye systems.

  E-2D Advanced Hawkeye integrates a comprehensive command and control suite including cooperative engagement capability, Link 16, and tactical targeting network technology, enabling real-time data exchange across naval and joint forces. The onboard mission system processes and fuses sensor inputs into a coherent operational picture, allowing the aircraft to function as an airborne battle management center. Its key feature lies in transforming sensor data into actionable information distributed across multiple platforms in a networked combat environment.

• Engine and Flight Capabilities

  The E-2D Advanced Hawkeye is powered by two Rolls-Royce T56 A 427A turboprop engines, each producing approximately 5100 shaft horsepower, and driving eight-bladed NP2000 composite propellers. This propulsion system improves efficiency, reduces vibration, and enhances reliability compared to earlier variants. The engines are mounted in wing nacelles and support both propulsion and onboard power generation for the aircraft's extensive mission systems.

  The E-2D Advanced Hawkeye in the enhanced configuration includes an aerial refueling probe, which significantly extends mission endurance and enables prolonged on-station operations. The aircraft has a maximum speed of approximately 648 km h (403 mph / 350 kn) and operates at altitudes between 25000 and 35000 ft (7620 to 10668 m), with a service ceiling of about 34000 ft (10363 m). It has a maximum takeoff weight of 26082 kg (57500 lb) and an empty weight of 18144 kg (40000 lb). The aircraft's operational range is about 2708 km (1683 mi / 1462 nmi), which can be significantly extended through aerial refueling. Its primary flight characteristics emphasize endurance, stability, and sustained surveillance capability.

• Combat Use

  The E-2D Advanced Hawkeye functions as a critical force multiplier in modern combat operations by providing early warning, surveillance, and battle management rather than direct weapons employment. It enables early detection and tracking of airborne and surface threats, allowing naval forces to respond before threats reach engagement range.

  The E-2D Advanced Hawkeye plays a central role in integrated air and missile defense by coordinating fighter aircraft, directing intercept operations, and providing targeting data to surface combatants. It supports fifth-generation aircraft by extending sensor coverage and enabling passive targeting strategies. The enhanced version's extended endurance allows persistent presence over operational areas, making it essential for sustained high-intensity conflict and distributed maritime operations.
