Project 20380/20382/20385 Steregushchy/Tigr class Corvette
|
| |
| |
| |
|
|
| |
|
|
|
|
|
|
|
Designed by Almaz Central Marine Design bureau, the Project 20380/20382 is a well-balanced ship in terms of armament and displacement, designed to operated in littoral areas and shelf seas. Its main missions include protection of territorial waters, exclusive economic zone, continental shelf, offshore areas, naval bases and ports. The ship represents a versatile platform easily transformable to meet customer's requirements.
The ship is designed for fighting against enemy surface combatans, submarine and aircraft, for ensuring combat security of naval task forces or for engaging shore targets with artillery fire.
The corvette carries Uran-E theatre cruise missiles, designed to engage surface targets. Anti-submarine warfare systems include sonar and torpedo launchers.
Integrated command bridge system mounted in the conning room has become a milestone in developing Action Data Automation Weapon Systems (ADAWS) for surface ships.
The head of class, Steregushchiy (Project 20380) was delivered to the Russian Navy in 2007
The Russian Navy announced that they intend to buy at least 20 of these ships, for all four major fleets.
|
| |
| Shiplist |
|
Name
|
Project
|
Fleet
|
Hull Number
|
|
Steregushchy
|
20380
|
Baltic
|
530
|
|

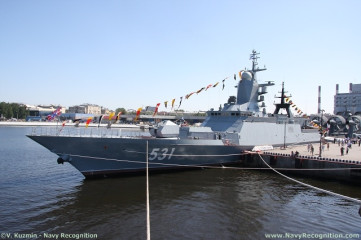

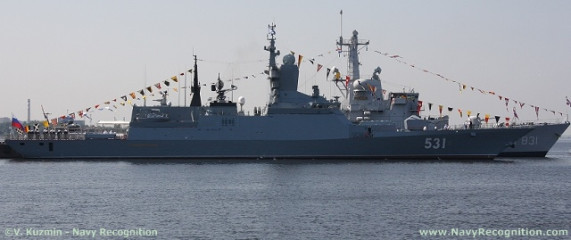

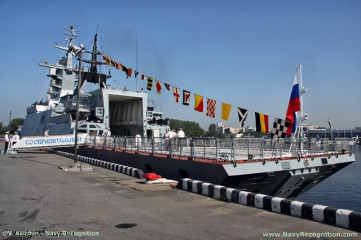

Soobrazitelnyy
|
20380
|
Baltic
|
531
|
|
Boiky
|
20380
|
Baltic
|
532
|
|
Sovershennyy
|
20380
|
Pacific
|
533
|
|
Stoiky
|
20380
|
Baltic
|
534
|
|
Provornyy
|
20385
|
Black Sea
|
N/A
|
|
N/A - Export for Algeria
|
20382
|
Export
|
N/A
|
|
N/A - Export for Algeria
|
20382
|
Export
|
N/A
|
|
| |
| Variants: |
Project 20380: Original variant used by Russian Navy
Project 20382 Tigr: Export variant
Project 20385: Improved version of Project 20380
|
| |
| Technical Data |
 Back to top |
| Design |
| Steel hull. Composite superstructure. Bulbous bow. Nine watertight subdivisions. Combined bridge and command centre. Space and weight provision for weapon modularity. |
| Weapons |
-
Anti-ship missiles:
8x Uran-E missiles or Club-N missiles or Yakhont missiles
-
Anti-air missiles:
Kashtan SAM system
-
Guns:

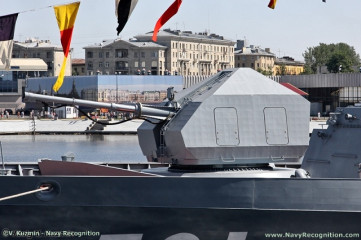

100mm A-190E or 76mm AK-176M (main gun)
2x AK-630M (CIWS)
2x 14.5mm machine guns
- Anti-Submarine:
Paket-E/NK ASW system (2 launchers, 8 torperdoes) or 2x533mm DTA-53 twin torpedo launchers
|

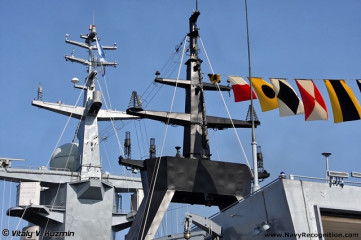

| Sensors, Electronics and Decoys |
- Electronic equipment:
Sigma-E combat management system or Thales combat & information center (Thales integrated mast)
3x Parol (item 67R) units or 1x Thales NR IFF system (Thales integrated mast)
Blokirovka system
- Optronics:
MTK-201ME TV-suite or Thales Gatekeeper surveillance system (Thales integrated mast)
- Radars:
Furke-E or Pozitiv-ME1 or Thales 3D SMILE (Thales integrated mast)
Monument-E detection and target acquisition suite or Mineral-ME radar suite or Thales SEASTAR active phased array radar (X-band)
- Decoys/Counter measures:
TK-25E or MP-405-1E AMAR suite
PK-10 Decoy dispensing system
- Sonars:
1x Zarya-ME
1x Vinietka-EM
1x Pallada or Anapa-ME
- Navigation:
Gorizont-25 suite and navigation radar
Ladoga-ME suite
GKU-2 gyro course indicator
DS-83 magnetic compass
AP-780 autoplotter
LEM2-1 navigation echosounder
NEL-20K navigation echosounder
2x GLONASS and NAVSTAR CH-3101 equipment packages
KPI-9F receiver
Suzhet-KM suite
- Communications:
Rubin-EG communication suite or Thales ICAS joint antenna communication system
Thales SURFSAT-L satellite communication system
|
| Propulsion |
| CODAD, comprising two 16D49 two-shaft diesel plants with a total power of 23,400 hp. |
| |
| Specifications |
|
|
|
Type
|
|
Multirole Corvette
|
|
Crew
|
|
80
|
|
Operators
|
|
Russian Navy. Algerian Navy (on order)
|
|
Performance
|
|
Top Speed: 30 kts
Range: 4,000 nm @ 14 kts
Endurance: 15 days
|
|
|
Displacement
|
|
2,000 tons
|
|
Engines
|
|
16D49 Diesel engines (23,320 Hp)
|
|
Aircraft
|
|
Hangar for 1 mid-size helicopter.
|
|
Dimensions
|
|
Length: 104.5 m
Breadth: 13 m
Maximum Draft: 3.7 m
|
|
|
| |
|
|
|
|
|
|
| |
|
|
| |
|
|
