| HIGH PERFORMANCE PR4G F@stnet WAVEFORM |
|
The PR4G F@stnet waveform is a multi-mode VHF waveform providing efficient ECCM solution with fast frequency hopping, CNR mode for voice or data traffic and the unique MUX mode boosted by the new SuperMux features having data capacity at 21.6 kbps while ensuring voice connection.
|
| ADVANCED SOLDIER ST@R Mille WAVEFORM |
|
The ST@R Mille waveform provides wide range of communication services for intra-squad or intraplatoon networks and greatly enhances the coordination and situation awareness of soldiers. It features simultaneous voice, position/alert reporting and data services thanks to its high data rate capability.
|
| SOFTWARE DEFINED RADIO HANDHELD SOLUTION |

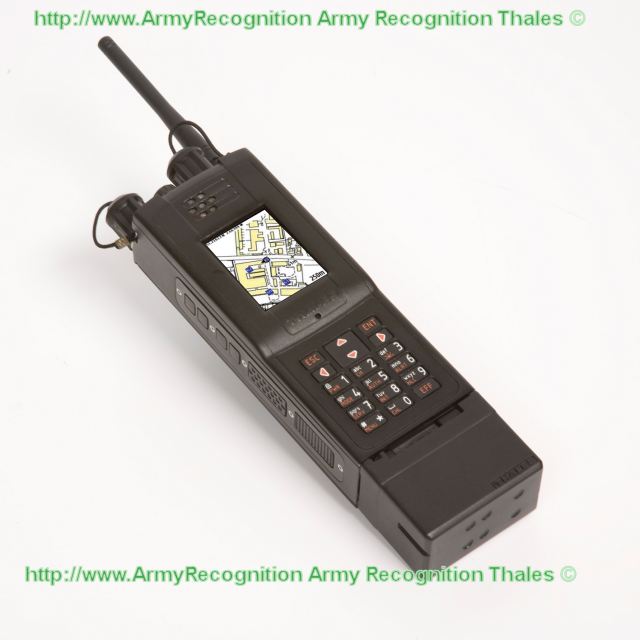

Based on an open and modular Software Defined Radio architecture, the F@stnet-Twin provides number of waveforms and waveform portability solutions. Through easy software upgrade it is open to future technology evolutions and new features.
|
| OPEN APPLICATIONS PROGRAMMING INTERFACES |
|
The F@stnet-Twin features a unique large color screen and its HMI software architecture is open to support customised embedded tactical BMS application.
|
| Specifications |
| |
|
Tyye of radio
|
|
Dual channels : - VHF module: 30-88 MHz, UHF module: 225-512 MHz
|
|
Audio interfaces
|
|
double output selectable : 3 positions + whisper mode.
|
|
Designer Company
|
|
Thales
|
|
Accessories
|
|
GPS, data RS232 - USB - Ethernet - Bluetooth - SNMP, Bluetooth wreless., remote control unit, single - dual - multiple 6 chargers. Applications and Remote Control PDA Terminal.
a
|
|
|
Dimensions
|
|
67x188x39 mm without battery
a
|
|
Weight
|
|
700 g without battery
a
|
|
RF Output Power
|
|
5W
|
|
Waveform Support
|
|
• PR4G F@stnet: CNR, iMux and SuperMux
• ST@R Mille
• Air-Ground NextWave interoperability
• Open to support high data rate networking and public safety waveforms
|
|
|
| |
