U.S. Marines Test MTVR Trucks on Japan Beaches for First Island Chain Resupply and Vehicle Recovery.

U.S. Marines tested Oshkosh Defense-built Medium Tactical Vehicle Replacement trucks on Okinawa’s Kin Blue Beach to determine whether the 6x6 vehicles could sustain logistics across soft shoreline terrain and unimproved routes. The images published show the exercise assessing a capability critical to keeping personnel, ammunition, and supplies moving during littoral operations.

The trucks also practiced recovering disabled vehicles without halting the convoy, demonstrating the mobility and self-recovery needed for dispersed operations around contested maritime terrain. This capability strengthens the 3rd Marine Division’s ability to support stand-in forces across the First Island Chain, where damaged roads and austere landing areas could quickly disrupt resupply.

Related topic: U.S. Navy Reveals Naval Modular Missile Architecture for Future Air Defense Interceptors.

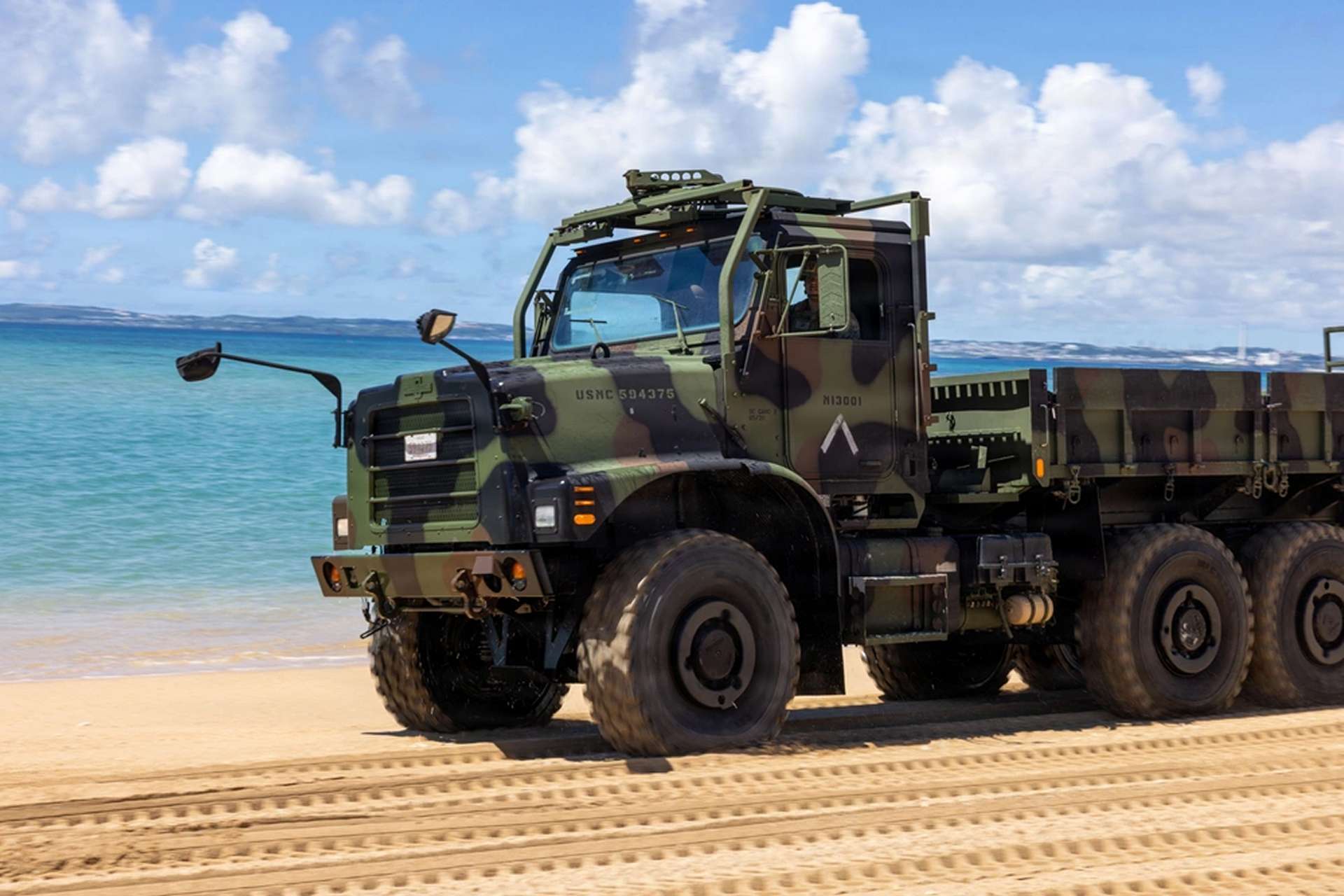

U.S. Marines operate MTVR 6x6 tactical trucks during littoral mobility training at Kin Blue Beach, Okinawa, testing movements across soft sand, unimproved routes and vehicle self-recovery in support of dispersed expeditionary operations (Picture source: U.S. DoW).

The photographed truck is an unarmored cargo-configured MTVR with no crew-served weapon installed. The Marine Corps rates the MTVR for a 7.1-ton payload off-road and 15 tons on improved roads, a distinction that matters because beach movement, repeated axle articulation, and low tire pressures impose substantially greater mechanical and traction limits than highway transport. The MTVR family includes cargo, extended-wheelbase cargo, dump, tractor, wrecker and resupply variants, with both armored and unarmored configurations. Production ran from 2000 to 2015, and the current programmed exit date is 2042, meaning the Marine Corps must continue training with the truck for at least another decade even as it develops a replacement.

Its mobility system explains why the MTVR remains suitable for this type of exercise. The truck uses a 425-horsepower Caterpillar C12 diesel engine, permanent all-wheel drive, Oshkosh TAK-4 independent suspension and an operator-controlled central tire inflation system. TAK-4 provides approximately 16 inches of vertical wheel travel and 16 inches of ground clearance, allowing each wheel to maintain contact as the vehicle crosses ruts, beach exits and irregular inland tracks. The tire inflation system provides selectable settings for highway, cross-country, mud, sand and snow. In sand mode, reduced inflation pressure enlarges the tire footprint and lowers ground pressure; the trade-off is greater tire flex, higher heat accumulation and reduced tolerance for abrupt steering or sustained high-speed travel.

The main training problem is not simply whether the truck can drive along a beach. Drivers must identify changes in sand density, avoid excessive wheel spin, select tire pressure before entering the softest ground, and preserve enough momentum to cross the transition between wet compacted sand and looser material above the tide line. They must also maintain vehicle spacing because each MTVR deepens existing ruts and reduces the bearing strength available to following trucks. A single mired vehicle can obstruct a narrow beach exit and halt an entire serial. Self-recovery drills therefore test recovery-point selection, rigging, towing, ground guiding, and coordination between drivers before a dedicated wrecker can reach the site. The operational result is measured in time: how quickly the route can be reopened and how much cargo movement is lost while recovery is underway.

Although the MTVR is a cargo truck rather than a fighting vehicle, Marine motor-transport units can fit it with an M2A1 12.7mm heavy machine gun, Mk 19 40mm grenade machine gun, or M240-series 7.62mm machine gun for convoy protection. Truck Company, 3rd Marine Division, has previously trained with the M2A1 and M240B because its vehicles move personnel and supplies close to forward units, while other Marine units have fired both the M2 and Mk 19 from seven-ton trucks.

The M2A1 weighs 86 pounds for the receiver and barrel assembly, measures 67.75 inches with its flash suppressor, fires at 450 to 600 rounds per minute and has an effective range of 1,830 meters. Its quick-change barrel and fixed headspace and timing reduce the procedures required after assembly or a barrel change, while the flash suppressor reduces visible muzzle flash by 95 percent. From an MTVR, the weapon is intended to suppress personnel and engage small boats or lightly protected vehicles along a convoy route; it does not provide the sensors, stabilization, or protection associated with a dedicated combat vehicle.

The Mk 19 produces a different effect. The 77.6-pound, belt-fed grenade machine gun has a point-target range of 1,500 meters and an area-target range of 2,212 meters. Its M430A1 high-explosive dual-purpose cartridge can penetrate approximately three inches of steel and is used against personnel, field positions, and lightly protected vehicles. The curved trajectory is useful for suppressing terrain folds and positions that cannot be engaged effectively by the flatter-firing M2A1. However, the photographed MTVR has neither weapon nor an armored turret, and fitting one would not remove the truck’s vulnerability to mines, anti-armor weapons, artillery, or unmanned aerial vehicles.

The reason for retaining this training focus is logistical rather than symbolic. Marine Corps Systems Command identifies the MTVR and its trailer as the principal resupply combination for both HIMARS and the Navy-Marine Expeditionary Ship Interdiction System. A 7.1-ton off-road load can carry missile reloads, fuel, water, generators, communications equipment, or engineering stores from an unloading point to a temporary firing position. If the truck cannot leave the beach, the launcher may still reach its firing position, but its ability to reload, refuel, and displace declines after the first mission cycle.

The exercise also exposes the limits shaping the future Medium Tactical Truck requirement. The Marine Corps is seeking 10-, 15- and 20-foot cargo configurations, hybrid-electric propulsion, 10 kilowatts of onboard generation, up to 30 kilowatts of exportable power, a 70-percent off-road operating profile and 60-inch water-fording capability. Until that replacement is fielded in sufficient numbers, the MTVR remains the division’s available medium-lift truck. Training at Kin Blue Beach is therefore intended to reduce a specific operational risk: the loss of ground distribution capacity between a littoral landing point and dispersed firing, air-defense, or command positions.
