Pakistan Air Force unveils Chinese HQ-17AE surface-to-air missile system acquisition in new video.

On September 6, 2026, the Pakistan Air Force revealed its acquisition of the Chinese HQ-17AE mobile short-range surface-to-air missile system in an official promotional video. Mounted on a 6×6 Dongfeng chassis, the export variant system combines search and guidance radars with eight vertical-launch missiles to track 24 targets and engage four simultaneously. Integrated alongside the Turkish Korkut 35 mm and Sahin 40 mm systems, the HQ-17AE forms the outer missile layer of a newly compressed 15 km point-defense shield.

The HQ-17AE short-range surface-to-air missile system provides multi-target engagement capabilities across maximum ranges of 15 km against non-stealth aircraft, 9 km against stealth platforms, and 8 km against air-to-surface missiles. Operating at combat speeds up to 25 km/h with vertical cold-launch missiles, a single four-vehicle battery delivers 32 ready-to-fire interceptors to complement inner gun-based counter-UAS systems.

Related topic: China conducts first public live-fire test of HQ-20 air defense missile system

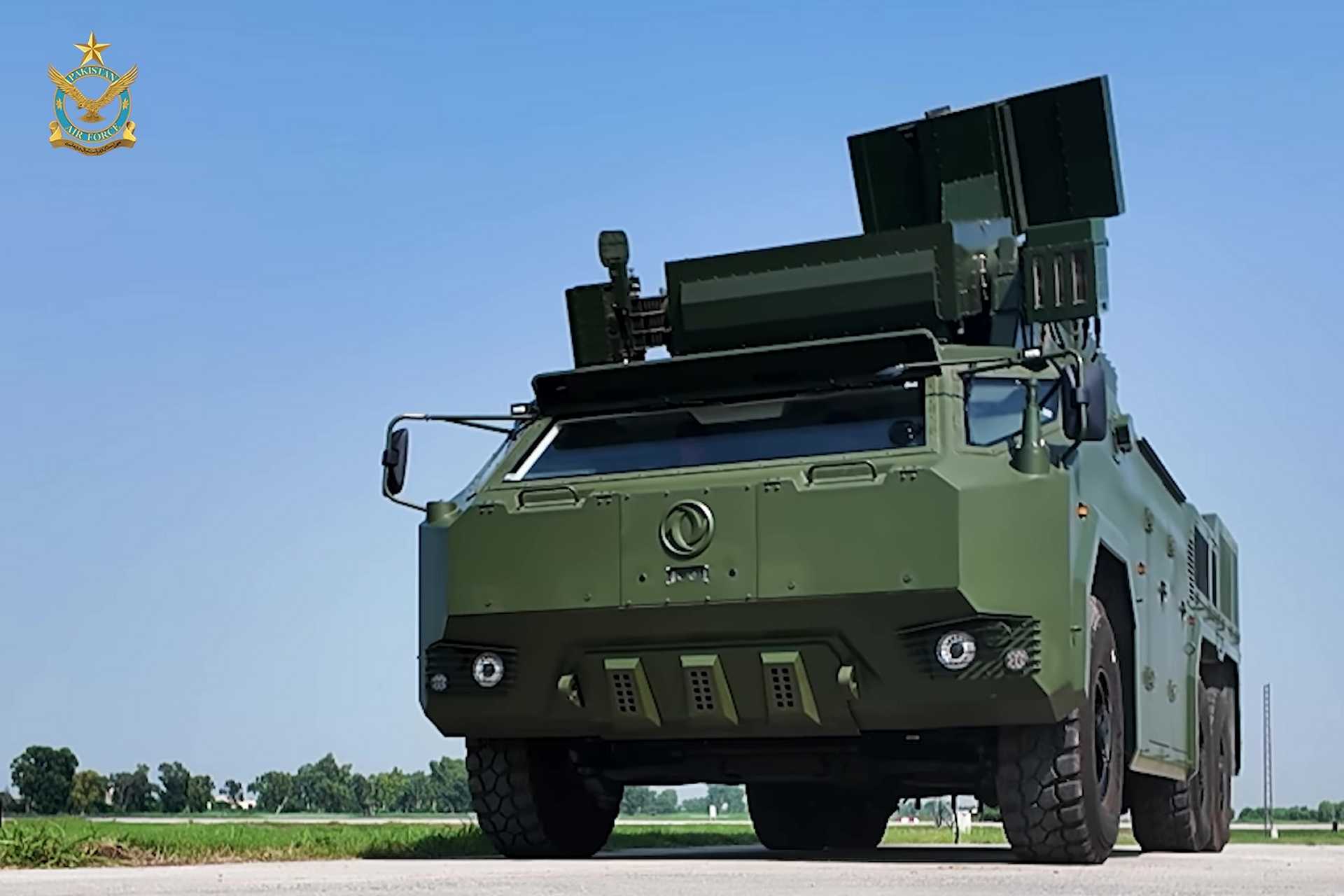

The HQ-17AE can engage non-stealth aircraft between 1.5 and 15 km, stealth aircraft between 1.5 and 9 km, and missiles between 1.5 and 8 km, while each vehicle can guide four missiles against four targets simultaneously at up to 25 km/h. (Picture source: Pakistan Air Force)

On September 6, 2026, the Pakistan Air Force (PAF) revealed their acquisition of the Chinese HQ-17AE mobile short-range surface-to-air missile system, which is able to engage four targets simultaneously while accompanying moving forces, in a new promotional video. The 6×6 vehicle, mounted on a Dongfeng chassis, carries a phased-array search radar, engagement radar, and two four-round vertical missile packs, matching CASIC's HQ-17AE export configuration, publicly unveiled in March 2021, two years after the domestic HQ-17A appeared at China's October 1, 2019 National Day parade. Pakistan has not disclosed the number of launchers, batteries, missiles, support vehicles, or operating units purchased.

Its impact is nevertheless measurable, as the HQ-17AE possesses an engagement range of 1.5 to 15 km against non-stealth aircraft, 1.5 to 9 km against stealth aircraft, and 1.5 to 8 km against missiles, with respective altitude ceilings of 0.01-8, 0.01-6, and 0.01-5 km. Combined with the new Turkish Korkut 35 mm and Sahin 40 mm air defense systems also shown by the PAF, the HQ-17AE establishes the new outer missile component of three increasingly compressed engagement zones inside the final 15 km that separate the aerial threat from its target. Like the Russian Pantsir-S1 and Tor-M1 systems, the Chinese HQ-17AE vehicle combines sensors, fire control, and eight ready interceptors on a single chassis, allowing independent engagements without needing a separate engagement radar. The missile used by the HQ-17AE measures 2.9 m long and 0.23 m in diameter and weighs 165 kg, giving a launcher 1,320 kg of ready interceptor mass before canisters are counted.

Cold launch uses a pyrotechnically powered mechanical catapult that ejects the missile vertically at 25 m/s, or 90 km/h, before rocket propulsion begins. Guidance is all-the-way radio command, with the vehicle tracking the target and missile and transmitting corrections until the radio proximity fuze initiates the fragmentation warhead. One vehicle can also guide four missiles against four separate targets simultaneously, so half of its eight-round magazine can be committed in one firing sequence. A battery of four combat vehicles consequently provides 32 ready-to-fire missiles, but battery-level simultaneous engagement capacity depends on target allocation and fire-control coordination rather than simply multiplying four channels by four launchers. The 15 km headline range applies only to non-stealth aircraft and considerably overstates coverage against harder targets.

A theoretical 15 km radius circle covers 706.9 km², while the 9 km stealth aircraft envelope covers 254.5 km² and the 8 km missile envelope 201.1 km², two reductions of 64% and 72%, respectively, even before terrain, altitude and radar horizon are considered. Vertical limits similarly decline from 8 km against non-stealth aircraft to 6 km against stealth aircraft and 5 km against missiles, while minimum altitude remains 10 m. Single-shot kill probability is specified by CPMIEC (China Precision Machinery Import-Export Corporation) as above 0.85 against aircraft and above 0.80 against missiles. The target set includes fixed-wing aircraft, helicopters, UAVs, subsonic and supersonic cruise missiles, tactical air-to-surface missiles, anti-radiation missiles, guided bombs and rockets. The 1.5 km minimum range creates a defined inner gap for another weapon, explaining the overlap with the Korkut rather than making the two systems redundant.

Based on available information, the HQ-17AE's radar capacity substantially exceeds its firing capacity, making engagement channels and missile stocks more restrictive than raw target detection. The HQ-17 family uses a PESA search radar and an AESA guidance radar, with the search radar credited with a 45-km detection range, surveillance of 48 targets, and simultaneous tracking of 24. Against an aircraft detected at 45 km, this leaves 30 km between initial detection and the 15-km weapon boundary; against a missile target, the difference reaches 37 km. The HQ-17AE's four simultaneous engagement channels produce a 6:1 ratio between 24 tracked targets and four targets under attack. A vehicle facing 12 simultaneous threats could therefore track all 12 but attack only four initially, then another four with its remaining missiles before exhausting its eight-round ready magazine.

Because its guidance remains radio-commanded until interception, the vehicle must also logically continue tracking and transmitting after launch, making radar survival and electronic protection relevant during the engagement itself rather than only before firing. Mobility is subsequently designed specifically to keep those four engagement channels with maneuvering formations. The HQ-17AE reaches 90 km/h in transit and can search, track, launch, and guide missiles while moving at up to 25 km/h on a flat road at constant speed. At combat speed, it moves 417 m per minute, 2.08 km in five minutes, and 12.5 km in 30 minutes without necessarily abandoning its air defense function. Vertical cold launch and rapid-turn controls also eliminate the need to rotate the complete SAM vehicle toward the threat before firing.

The earlier tracked HQ-17 provides a useful comparison: its 32-tonne chassis uses a 750 hp diesel engine, reaches 65 km/h and has a 600-km driving range, while the wheeled HQ-17A/AE has been associated with a roughly 30-tonne Dongfeng 6×6 chassis and an 800-km road range. This permits HQ-17AE launchers to disperse with maneuver units or relocate among airfields, radar sites and command facilities faster than the HQ-17, therefore better suited for permanent firing positions. Magazine depth is the principal numerical limitation once repeated engagements begin. An HQ-17AE battery, as envisioned by CPMIEC, contains one command vehicle, four combat vehicles and 16 missile modules, supported by four transport/loading vehicles plus one maintenance vehicle, one power-supply vehicle, one calibration vehicle, one testing vehicle and one missile-handling equipment vehicle. Four launchers then provide 32 ready missiles.

Another HQ-17 battery organization totals 14 vehicles and carries 32 ready missiles plus 48 reloads, or 80 missiles, although Pakistan's actual allocation is unknown. The 48 reloads equal 1.5 complete replacements of the battery's ready magazine. A Shaanxi SX2306 crane-equipped vehicle handles four missiles per loading cycle, half one launcher's capacity, so replenishing four empty eight-round launchers requires eight four-missile loading increments. One four-launcher unit therefore begins with 32 shots; three would provide 96 and four 128, making Pakistan's undisclosed battery count essential to any estimate of sustained defensive capacity. The Turkish Korkut, consequently, provides a higher-volume gun layer inside the HQ-17AE envelope.

A standard battery has one radar-equipped command-and-control vehicle and three self-propelled anti-aircraft guns (SPAAGs), each carrying tracking radar, electro-optical equipment and twin MKE 35×228 mm cannon. Each Korkut carries about 200 ready rounds and fires at a combined maximum cyclic rate of 1,100 rounds per minute, equivalent to 18.3 rounds per second or 10.9 seconds of theoretical continuous fire. Three vehicles therefore place roughly 600 ready 35 mm rounds in a battery. ATOM ammunition is programmed during muzzle passage to detonate at the calculated interception point and disperse tungsten fragments, while I-ABM uses more numerous smaller pellets against compact UAVs; the feed changes between two ammunition types in less than 15 seconds.

With the Korkut operating to roughly 4 km and the Sahin providing another 40 mm counter-drone fire at roughly 700 m, Pakistan can assign missiles to threats farther out and shift surviving targets to guns as they approach the defended asset. The HQ-17AE consequently occupies the 1.5 to 15 km tier of a PAF air defense inventory extending well beyond SHORAD. China's HQ-9BE provides the long-range layer, while the HQ-16FE reaches 160 km and covers altitudes from 15 m to 27 km; the PAF also retains 10 SPADA-2000 batteries and Crotale-2000, Crotale-3000 and Crotale-4000 systems. The Pakistan Army's LY-80/HQ-16 systems add another medium-range component, while J-10CE, JF-17 and F-16 fighters extend interception beyond ground-based coverage with PL-15, PL-12 and AIM-120 missiles.

The practical sequence therefore extends from fighters and long-range SAMs through medium-range systems to the HQ-17AE at 15 km, the Korkut at roughly 4 km, and the Sahin at roughly 700 m. Consequently, the HQ-17AE does not materially extend Pakistan's maximum defensive reach; it increases the number of engagement opportunities available after a target penetrates the longer-range layers. The remaining force-level variables are concrete ones: how many launcher units Pakistan operates, whether each has 32 ready missiles plus substantial reload stocks, where those batteries are concentrated, and how Chinese, Turkish, Italian, and French-origin sensors exchange tracks quickly enough to prevent multiple systems from spending ammunition against the same target.
