Testing of MS-110 Multispectral Pod on Taiwan’s F-16V Signals Major Leap in Long-Range Reconnaissance.

Taiwan has begun flight-testing the MS-110 multispectral reconnaissance pod on its F-16V fleet, with the system publicly observed at Chiashan Air Force Base on August 26, 2026, according to Taiwan’s Liberty Times. Its wider coverage and improved day-and-night sensing could give Taiwanese commanders faster and more detailed intelligence on Chinese force movements during a rapidly developing cross-Strait crisis.

The MS-110 offers a significant reconnaissance upgrade over Taiwan’s existing AN/VDS-5 LOROP-EO “Phoenix Eye” pod, expanding the F-16V’s ability to detect, identify, and monitor targets across larger areas. Integrating the sensor with frontline fighters strengthens Taiwan’s battlefield awareness and could improve targeting, threat warning, and force survivability in a contested air and maritime environment.

Related Topic: Shield AI Brings Collective Autonomy to Taiwan’s SeaShark Fleet to Reshape Cross-Strait Maritime Deterrence

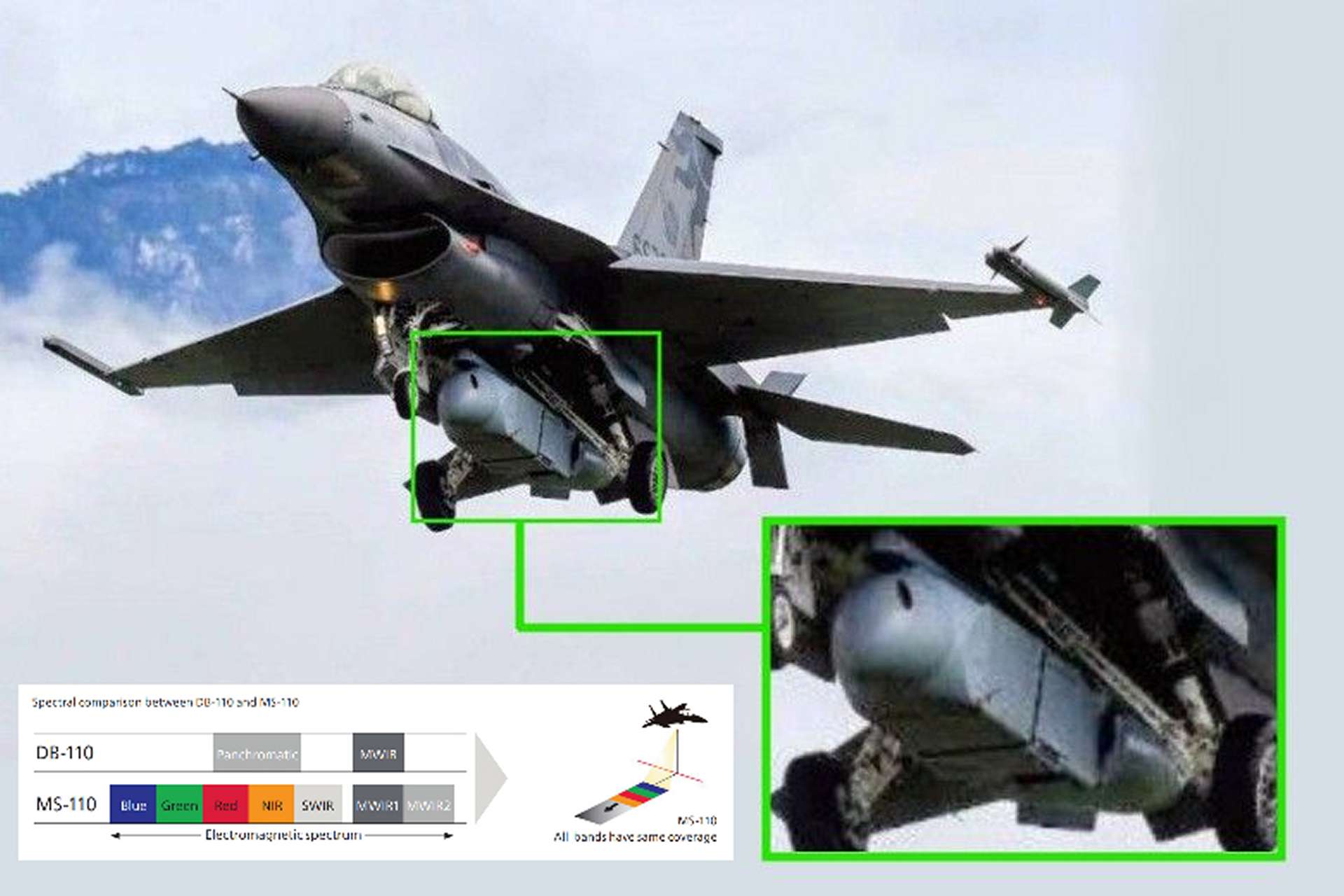

Taiwan’s F-16V has debuted the MS-110 multispectral reconnaissance pod, expanding the fighter jet’s long-range day-and-night surveillance and speeding battlefield intelligence collection (Picture Source: The Liberty Times / Raytheon / Edited By Army Recognition Group)

On August 26, 2026, a Taiwanese Air Force F-16V was publicly observed carrying the new MS-110 multispectral reconnaissance pod during a flight test from Chiashan Air Force Base in Hualien. The development marks an important step in Taiwan’s modernization of airborne intelligence, surveillance and reconnaissance capabilities following its acquisition of six MS-110 systems from the United States. According to an exclusive report by The Liberty Times’ defense channel, the new pod provides substantially greater coverage and enhanced day-and-night reconnaissance performance compared with Taiwan’s existing AN/VDS-5 LOROP-EO “Phoenix Eye” reconnaissance pod. The appearance is particularly significant because it demonstrates the transition of the MS-110 from acquisition and personnel training into practical integration with Taiwan’s frontline F-16V fleet.

MS-110 Brings a New Multispectral Capability to Taiwan’s F-16V

The Liberty Times reported that Taiwan purchased six MS-110 reconnaissance pods, which were delivered to the Air Force before undergoing testing and personnel training. During the newly disclosed flight, an F-16V carried the system from Chiashan for performance evaluation. According to officials cited by the newspaper, the MS-110 has an effective reconnaissance range exceeding 80 nautical miles, or approximately 148 kilometers, and can collect around 26,000 square kilometers of high-resolution imagery per hour, reportedly more than twice the efficiency of the existing “Phoenix Eye” pod. The 2020 U.S. Defense Security Cooperation Agency notification independently confirms that Taiwan requested six MS-110 pods as well as three transportable ground stations and one fixed ground station under the proposed Foreign Military Sale.

The principal technological advantage is its multispectral reconnaissance architecture. The Liberty Times describes the MS-110 as employing seven sensing bands and highlights its ability to operate at night and in challenging environments such as haze or smoke. RTX’s official technical report provides a more detailed description of those seven sensor channels: blue, green, red, near-infrared (NIR), short-wave infrared (SWIR), and two mid-wave infrared channels, MWIR1 and MWIR2. All seven channels image common ground coverage, allowing information from several portions of the electromagnetic spectrum to be compared or combined. RTX states that this simultaneous multiband collection can improve target discrimination and change detection and help analysts identify subtle characteristics that may not be apparent in conventional grayscale imagery. The official fast-jet data sheet additionally identifies spot, wide-area and persistent imaging modes, with a maximum field of regard of ±90 degrees in roll and ±20 degrees in pitch.

Faster Intelligence Flow from Aircraft to Ground Commanders

Another important feature is the MS-110’s ability to transmit reconnaissance imagery through a high-speed, near-real-time data link. Rather than relying exclusively on imagery analysis after an aircraft returns from its mission, this architecture allows collected information to become available much sooner to intelligence and operational staffs. RTX states that the MS-110 incorporates dedicated imagery-exploitation software designed to take advantage of its multispectral data and describes the system as capable of shortening the interval between sensor collection, analysis and operational action. The manufacturer also highlights improved image quality measured through the NATO Image Interpretability Rating Scale, or NIIRS, as well as improved area coverage at long stand-off ranges. For Taiwan, these characteristics could increase the speed and quality with which changing activity in surrounding air, maritime and ground environments is assessed.

The pod also provides Taiwan with valuable platform flexibility and growth potential. RTX confirms that the MS-110 is compatible not only with the F-16 but also with F-15 and F/A-18 fighters, Gripen aircraft, C-130s, maritime-patrol and special-mission aircraft, and medium-altitude long-endurance UAVs such as the MQ-9. It is also designed to integrate with the established DB-110 concept of operations and architecture while using common ground-support equipment, potentially simplifying the transition from earlier reconnaissance systems. This is particularly relevant for Taiwan because the Liberty Times specifically reported that the MS-110 could eventually be employed aboard Taiwan’s MQ-9B aircraft. Taiwan’s Ministry of National Defense confirmed in March 2026 that the first two of four MQ-9B SkyGuardian UAVs had been formally handed over, providing a potential future pathway toward complementary reconnaissance operations involving fast tactical aircraft and long-endurance unmanned platforms.

Strategic Implications for Taiwan’s Defensive Awareness

From a military and geostrategic perspective, the MS-110 strengthens Taiwan primarily by improving situational awareness, stand-off reconnaissance, intelligence quality and decision-making speed, rather than by introducing a new offensive weapon. RTX describes long-range stand-off coverage as contributing to aircraft survivability because useful imagery can be collected from greater distances, while its official data sheet identifies passive long-range target detection, maritime and littoral surveillance, and operation in medium- and high-threat environments among the system’s intended benefits. Multispectral collection also has particular value for recognizing changes between successive reconnaissance missions and differentiating objects from complex backgrounds. Combined with rapid data transmission, these characteristics could contribute to a more resilient intelligence picture across Taiwan’s surrounding maritime and air approaches. It is important technically to distinguish this enhanced day-and-night EO/IR capability from radar-based all-weather sensing: RTX itself presents synthetic-aperture radar as a complementary technology for reconnaissance under conditions in which optical sensors may be constrained.

The first disclosed F-16V flight with the MS-110 represents more than the introduction of another externally carried sensor. It demonstrates Taiwan’s continuing effort to connect advanced airborne collection, seven-channel multispectral imaging, long-range stand-off observation, imagery exploitation and rapid data distribution into a broader defensive ISR architecture. As integration and training mature, and particularly if the same reconnaissance family is eventually employed across both F-16V fighters and MQ-9B unmanned aircraft, the MS-110 could provide Taiwan with a more flexible and persistent ability to understand developments around its airspace and surrounding waters. For Taiwan’s Air Force, that improved awareness can be an important force multiplier, because timely, accurate and independently collected intelligence supports measured decision-making, effective force protection and a credible defensive posture.

Written by Teoman S. Nicanci – Defense Analyst, Army Recognition Group

Teoman S. Nicanci holds degrees in Political Science, Comparative and International Politics, and International Relations and Diplomacy from leading Belgian universities, with research focused on Russian strategic behavior, defense technology, and modern warfare. He is a defense analyst at Army Recognition, specializing in the global defense industry, military armament, and emerging defense technologies.
