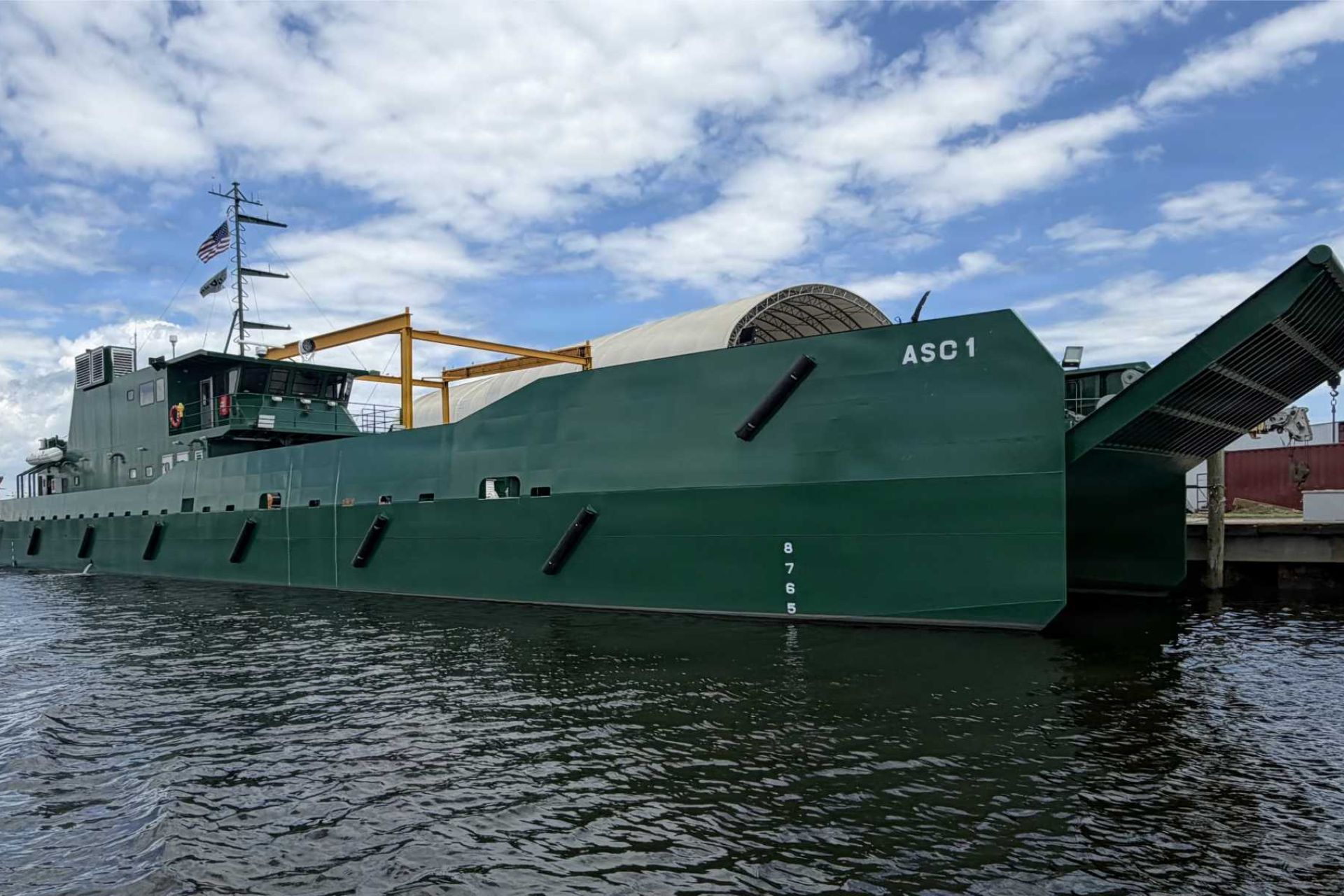

Ancillary Surface Craft ASC.

Technical Data

• Design

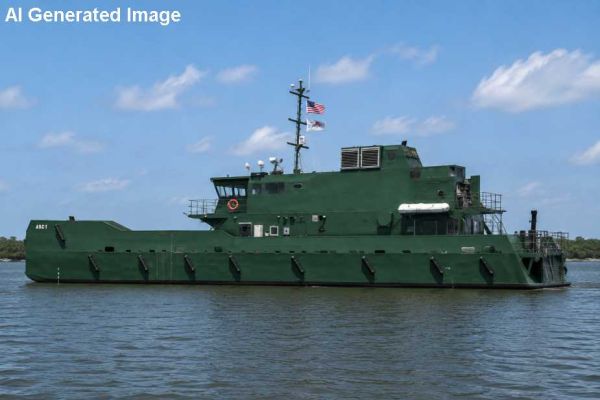

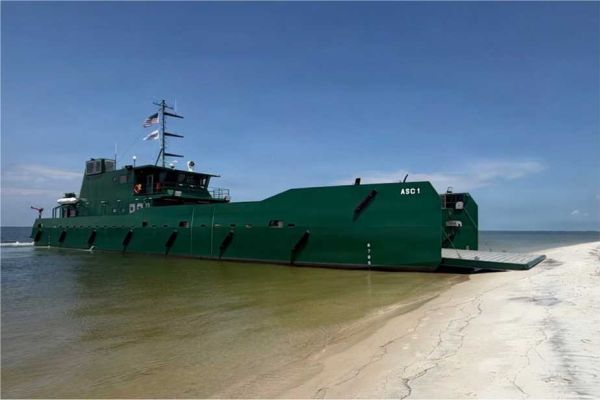

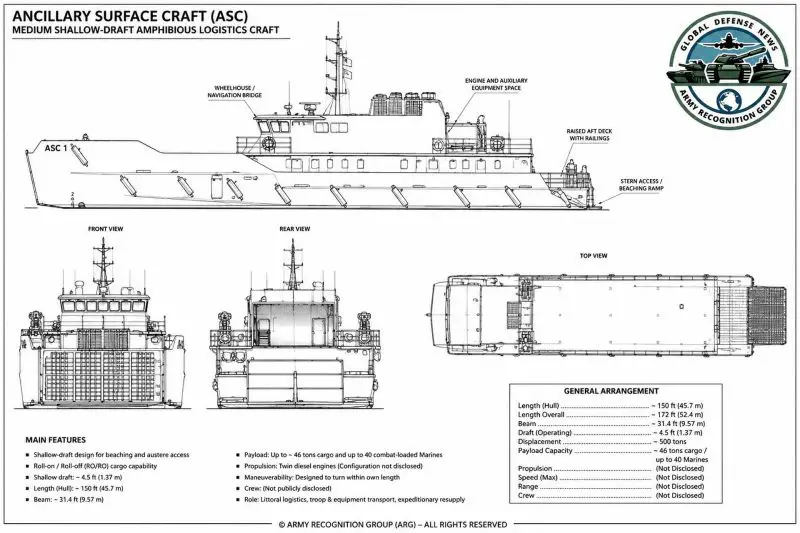

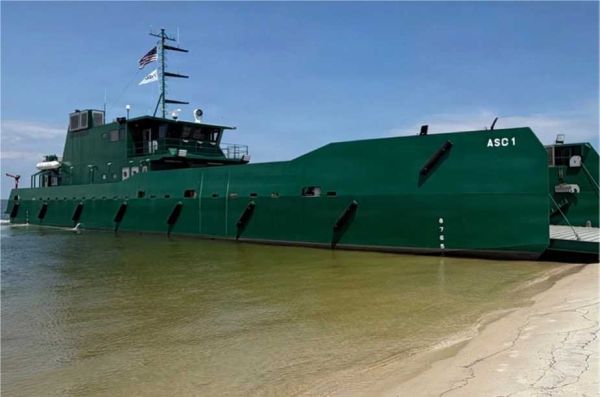

  The Ancillary Surface Craft ASC uses a shallow-draft landing-craft hull about 45.72 m (150 feet) long, with an operating draft of about 1.38 m (4.5 feet) and a broad roll-on/roll-off cargo arrangement for tactical vehicles, containers, mission equipment, and general logistics loads. The hull is designed for direct beaching and recovery while retaining sufficient structural strength and seakeeping for longer littoral movements. Navigation equipment includes advanced systems suitable for poorly surveyed waters, with forward-looking sonar intended to help the crew detect reefs, shoals, submerged hazards, and rapidly changing coastal bathymetry before entering restrictive approaches. Greater habitability and endurance than many traditional tactical landing craft allow the ASC to support longer independent deployments. Its principal technical feature is the combination of very shallow draft, direct beach access, roll-on/roll-off cargo handling, and extended maritime endurance in a single ocean-capable hull.

• Armament

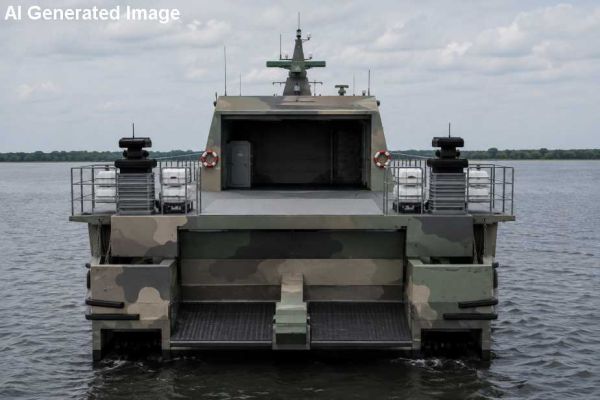

  The Ancillary Surface Craft ASC is principally a logistics and maneuver vessel rather than a dedicated surface combatant, but its design includes provisions for automatic weapon stations and crew-served defensive weapons to provide local protection during operations in contested littoral zones. The U.S. Marine Corps has not yet publicly standardized a definitive armament configuration, so specific calibers and weapon-station models should not be treated as confirmed production equipment. The craft is expected to rely on a layered survivability concept in which onboard weapons provide immediate self-defense, while Marine shore-based fires, aviation, reconnaissance assets, and supporting naval forces provide broader protection. Its main technical feature in this area is a modular defensive weapon arrangement that can be adapted to mission requirements, rather than relying on a permanently fixed heavy combat-system installation.

• Payload

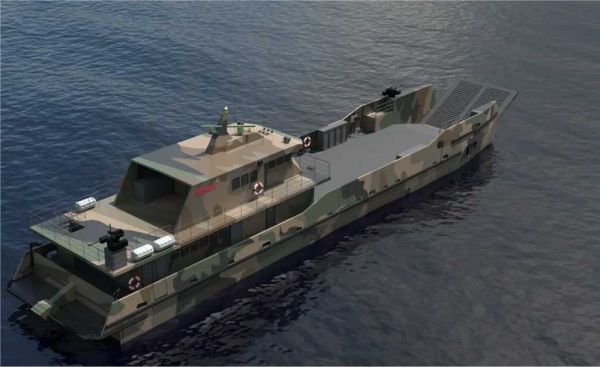

  The Ancillary Surface Craft ASC is optimized for flexible expeditionary cargo carriage, with Marine Corps prototype information indicating the ability to transport approximately 46 tons of cargo together with up to 40 combat-loaded Marines, while Birdon design information has cited maximum payload figures of approximately 54 to 55 tons depending on configuration. The roll-on/roll-off deck can carry combinations of tactical vehicles, palletized ammunition, fuel systems, engineering equipment, communications packages, containers, water, food, maintenance supplies, and other mission stores. Fuel may also be transported as a mission payload for distribution to forward units operating away from fixed logistics hubs. The principal technical feature is its configurable RO/RO payload deck, which allows personnel, vehicles, fuel, containerized systems, and general cargo to be mixed according to the tactical requirement rather than requiring specialized vessel variants.

• Engine

  Detailed information on the Ancillary Surface Craft ASC's propulsion machinery, including exact engine manufacturer, engine model, installed horsepower, reduction arrangement, and propulsor type, has not yet been officially released. The propulsion system is nevertheless designed to support both extended littoral movement and precise maneuvering close to shore, where conventional transport vessels are less effective. Birdon has emphasized the craft's ability to maneuver in confined waters and to turn within approximately its own length, an important characteristic when approaching beaches, reversing away from landing sites, navigating river mouths, or operating among reefs and narrow channels. The principal technical feature of the propulsion arrangement is therefore high low-speed maneuverability combined with the endurance required for independent inter-island and coastal movement.

• Combat Use

  In U.S. Marine Corps operations, the Ancillary Surface Craft ASC is intended to function as a distributed combat-logistics and tactical mobility platform supporting small formations operating across island chains and contested coastal regions. It can deliver ammunition to missile units, move tactical vehicles between islands, transport fuel to expeditionary refueling points, relocate communications and sensor detachments, and evacuate or reposition equipment before a temporary operating site becomes vulnerable. Its shallow draft and beaching capability enable direct access to austere landing locations that larger amphibious ships and logistics vessels cannot reach, while the craft's independent endurance reduces continuous dependence on a mothership. Its survivability concept is based primarily on dispersion, rapid movement, low infrastructure dependence, tactical unpredictability, and integration with wider Marine and Navy sensing and fires networks rather than on heavy armor. The main technical feature in operational use is its ability to sustain and reposition Marine Stand-in Forces through direct shore-to-shore movement in shallow, unimproved, or poorly surveyed littoral areas.
