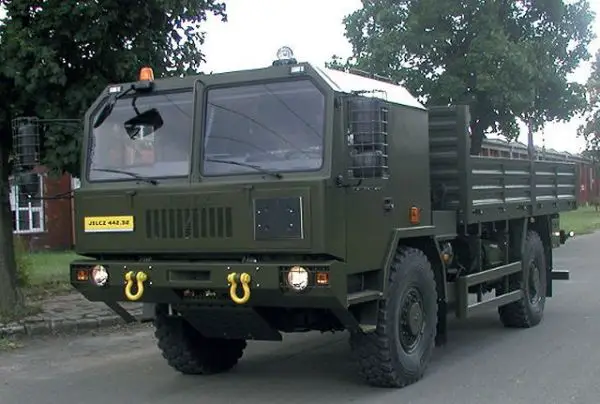

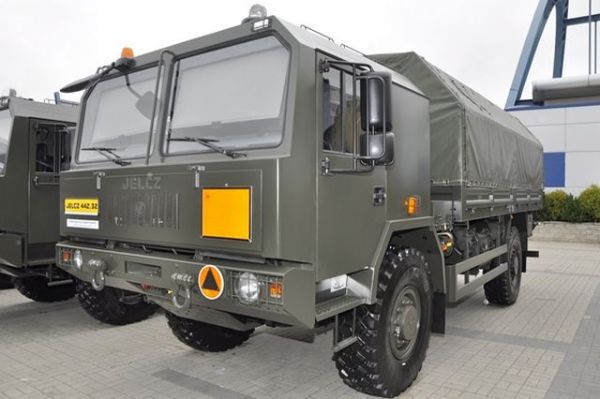

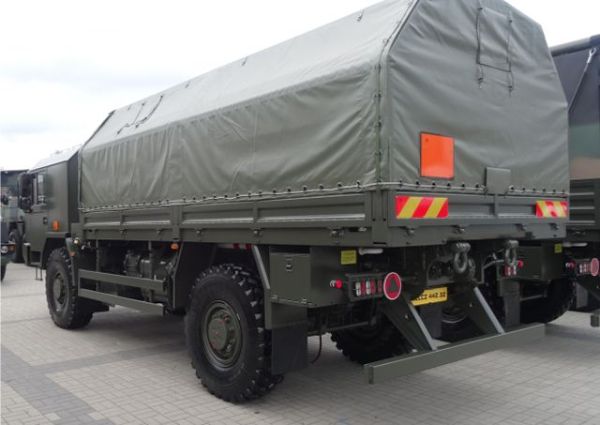

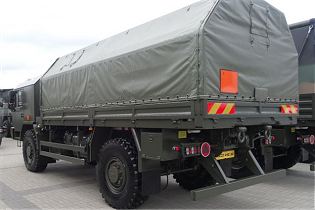

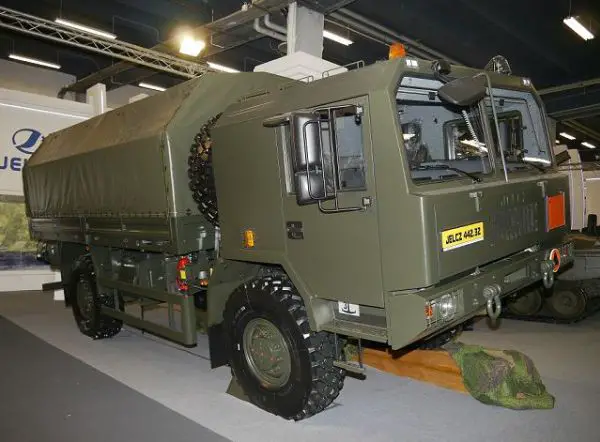

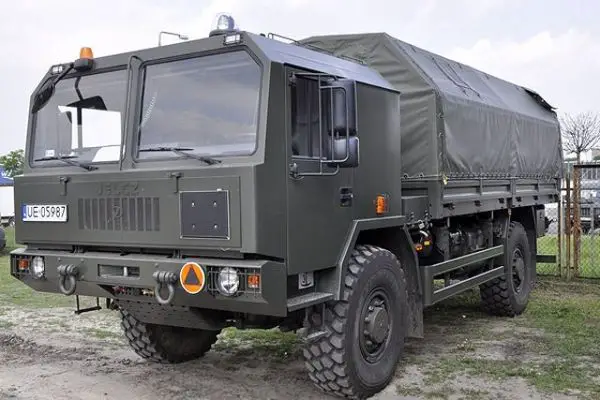

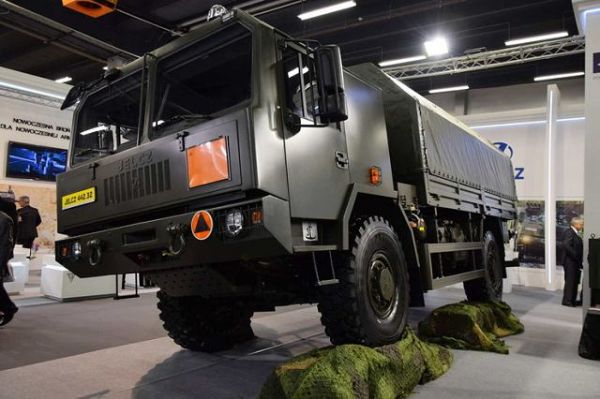

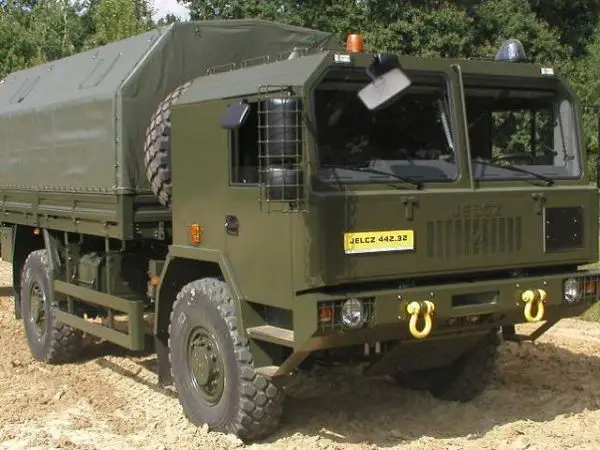

The Jelcz 442.32 is a military truck using a 4x4 chassis manufactured by the Polish Company Jelcz which is now a subdivision of PGZ (Polska Grupa Zbrojeniowa) a holding company established by the Polish government to unite Polish, state owned defence industry companies.
Country users: Poland
Technical Data
-
Design and protection

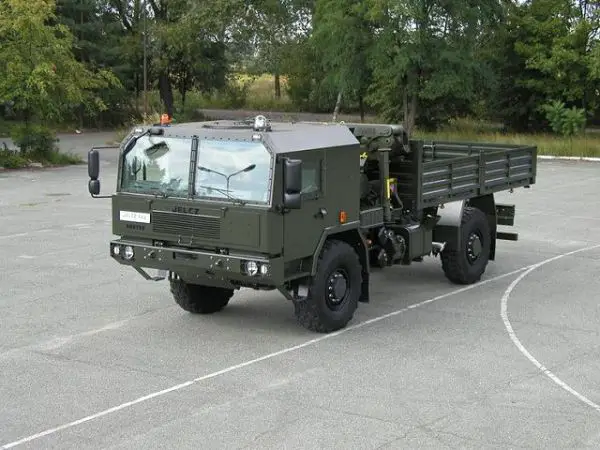

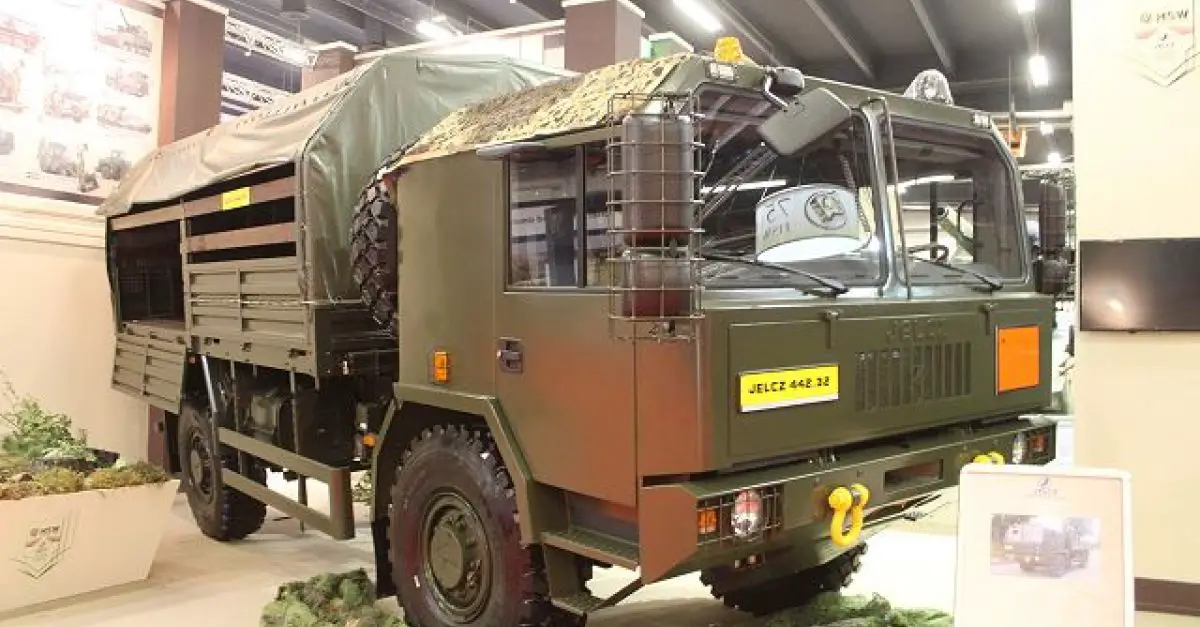

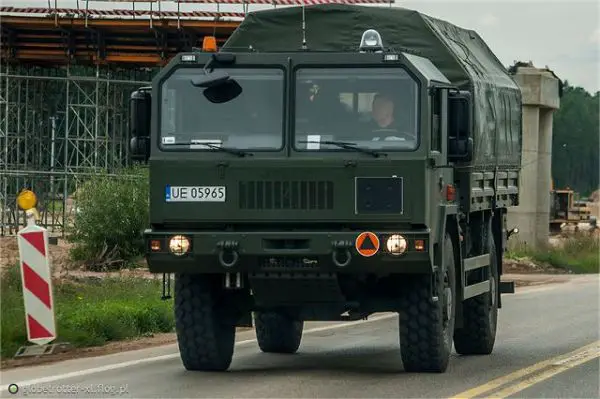

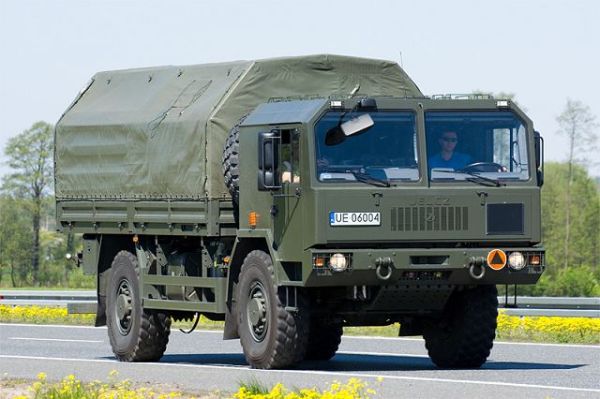

The layout of the Jelcz 442.32 is standard for a military truck with crew cab at the front and the cargo area at the rear of the chassis. The cab can accommodate 4 or 6 people with one single door on each side. There is two large windows at the front of the non-protected crew cabin. The roof of the cab is fitted with hatches for ventilation and evacuation. The Jelcz 442.32 has a curb weight of 9,750 kg nad a payload capacity of 6,000 kg.
-
Mobility
The Jelcz 442.32 is motorized with an MTU 6R106TD21 Euro III diesel engine developing 2.200 rpm. coupled to 9-speed manual gear box. The 4x4 chassis is adapted to be used in road and off-road conditions. The truck can run at a maximum speed of 85 km/h. The truck can be operated at temperature from -30° to +50°C. The Jelcz 442.32 can cross water depths of 1.20 m without preparation.
-
Combat Equipment
The cabin of the Jelcz 442.32 is equipped with 24V plug-in sockets for electrical devices powering and top lighting, illumination at foot-plates acting automatically after door opening, additional lighting on passenger knees. The truck is also equipped with a central tires inflation system and BEADLOCK system to protect drivers from having the bead of their tires separate from their rims while driving. Driver and co-driver seats are fitted with automatic safety belts and headrest.
