| Armament |
|
The vehicle includes a weapon frame and ring mount directly behind the driver/commander seats that permits the vehicle to carry a variety of weapons based on the mission profile. Some include a basic 12.7 mm machine gun up to and including a TOW launcher.
|
| Protection |
|

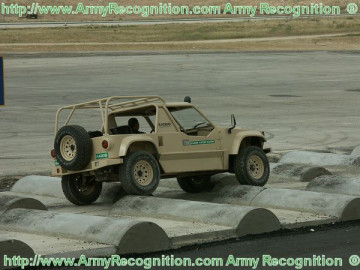

The Desert Iris is based on a space frame chassis with the engine located at the front under a bonnet. The driver and passenger are seated centrally under roll-bar protection while a weapon mounting is located to the rear over a limited capacity cargo area.
|
| Propulsion |
|
Built around Toyota automotive components and a 2.8 liter four-cylinder Toyota engine, the Desert Iris is a low profile fast attack platform capable of an operational range of 600 km on paved surfaces and 400 km off-road. The engine develops 100 Bhp/ 75 KW at 4200 rpm. The independent double wishbone with coil-over-shock suspension in the front and independent training arms in the rear give the Desert Iris tremendous stability and off-road mobility.
|
| Accessories |
|
Desert Iris is a low cost vehicle, with very easy to maintain mechanicals to provide low life cycle costs. The vehicle is small and compact and is air-transportable by a wide range of helicopters. The Desert Iris is a has outstanding off-road capability.
|
| |
| Specifications |
| |
|
Armament
|
|
The Desert Iris can be armed with 7.62 or 12.7 mm machine, MRLS launcher or TOW launcher.
|
|
Country users
|
|
Jordan
|
|
Designer Company
|
|
KADDB King Abdullah II Design and Development Bureau
|
|
Accessories
|
|
Weapons rings mount.
|
|
Crew
|
|
3 soldiers
|
|
|
Armor
|
|
No armor
a
|
|
Weight
|
|
1,650 kg
|
|
Speed
|
|
120 km/h maximum speed
a
|
|
Range
|
|
400 to 600 km
|
|
Dimensions
|
|
Lenght, 4,25 m; Width, 1,9 m; Height, 1,75 m
|
|
|
| |
