General information

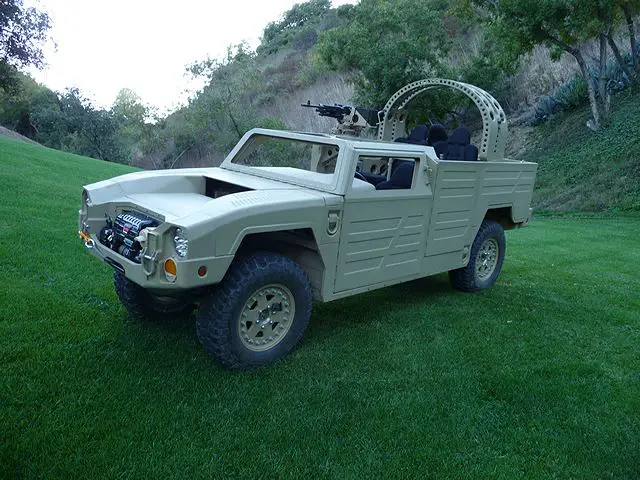

The TAC-V JAMMA V-22 ITV variant, the foundation cornerstone of the JAMMA family of vehicles, has been built to satisfy the requirements of special operations user groups. A visionary project dating back to 2005, the TAC-V Joint All-Terrain Modular Mobility Asset (JAMMA) family of vehicles has been developed to be a genuine technology leap over existing military armored all-terrain vehicles in performance, modular functionality and overall capabilities. Force Protection acquired the rights to produce the JAMMA from Tac-V, a Calif.-based company that developed it. The Jamma is presented for the first time to the public at the Association of the United States Army (AUSA) Institute of Land Warfare’s Winter Symposium in Ft. Lauderdale, Fla., February 24-26, 2010. The JAMMA Force Protection is the only armor-ready, four-occupant, hybrid, high-performance off-road vehicle that can be transported inside the V-22 Osprey helicopter. It is equipped to handle high speeds during extreme off-roading, on highways and through urban terrain. JAMMA is also capable of rapidly adapting to and being armored for specific mission profiles such as reconnaissance, rescue/recovery, med-evac and mobile security. In addition to a multitude of vehicle configurations available in the 60” wide V-22 ITV variant, an 80” wide, extreme off-road performance suspension is available on the same core vehicle, which maximizes the internal cargo space of the H-53 and H-47 aircraft.



Variants :
- 60" wide
- 80" wide



Technical data
 Back to top
Armament
The Jamma Force protection can be armed with 7.62 mm machine gun, mounted at the front of the roof. Another 12.7 mm machine can be mounted at the rear of the vehicle.
Protection
The Jamma Force Protection is optimized for rollover protection and features an attachment system with threat-specific armor that can be easily attached or removed in virtually any environment. The JAMMA family of vehicles include an armor attachment system that allows threat specific armor to be easily and readily attached to or removed from the vehicle in virtually any environment; stadium seating that allows the driver to be comprehensively armored while also preventing the driver from blocking the fire arcs of the other vehicle occupants; and, optimized occupant roll-over protection with full fields of fire on the move.
Propulsion
The V-22 ITV is powered by a 3.2L turbocharged diesel engine that produces 180 hp and 398 lb-ft of torque, giving the truck a payload capacity of 3,500 lbs. A hybrid electric drivetrain is also available and adds a 100-hp electric motor that assists the motor, cuts fuel consumption and can act as a generator to provide 22 kW of power at either 120VAC or 208VAC. The Jamma uses a 4 x 4 wheeled chassis. The TAC-V JAMMA V-22 ITV variant is also available with a diesel/JP8 engine, or, with a state of the art hybrid driveline that optimizes the vehicle's efficiency and generates 25kW continuous exportable power. A fully-independent suspension topped-off with run-flat, bead-locked tires allows the V-22 ITV to tackle 31-degree inclines head-on and traverse side slopes of 22-degrees or more. Its 12-inches of ground clearance and step approach and departure angles allow it to take on 15-in vertical steps and its tall ride allows it to ford 30 inches of water without any special preparation.
Accessories
The Jamma Force Protection includes stadium seating that protects the driver while allowing 360-degree return fire and features a state-of-the-art hybrid engine that optimizes vehicle efficiency and generates 22kw continuous exportable power. An electric winch with a 9,500-lb line, built-in air compressor and central tire inflation system ensure the V-22 ITV can get out of just about any situation.

Specifications

Armament
One 7.62 mm or 12.7 mm machine gun
Country users
-
Designer Company
Force Protection
Accessories
Armor attachment system
Crew
2 + 2 soldiers
Armor
Rollover protection
Weight
3.400 kg
Speed
145 km/h
Range
725 km
Dimensions
Lenght, ? m; Width, 1,52 m; Height, 1,52 m

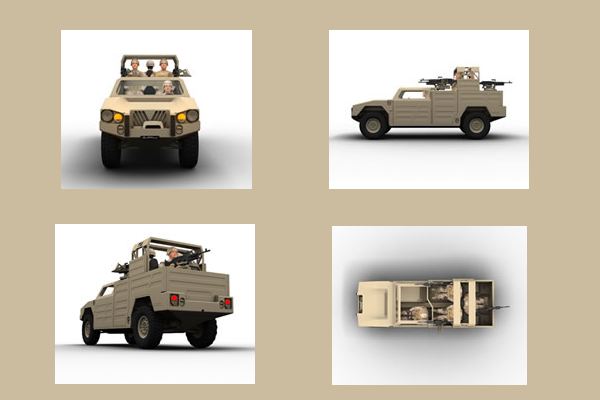

Details view
