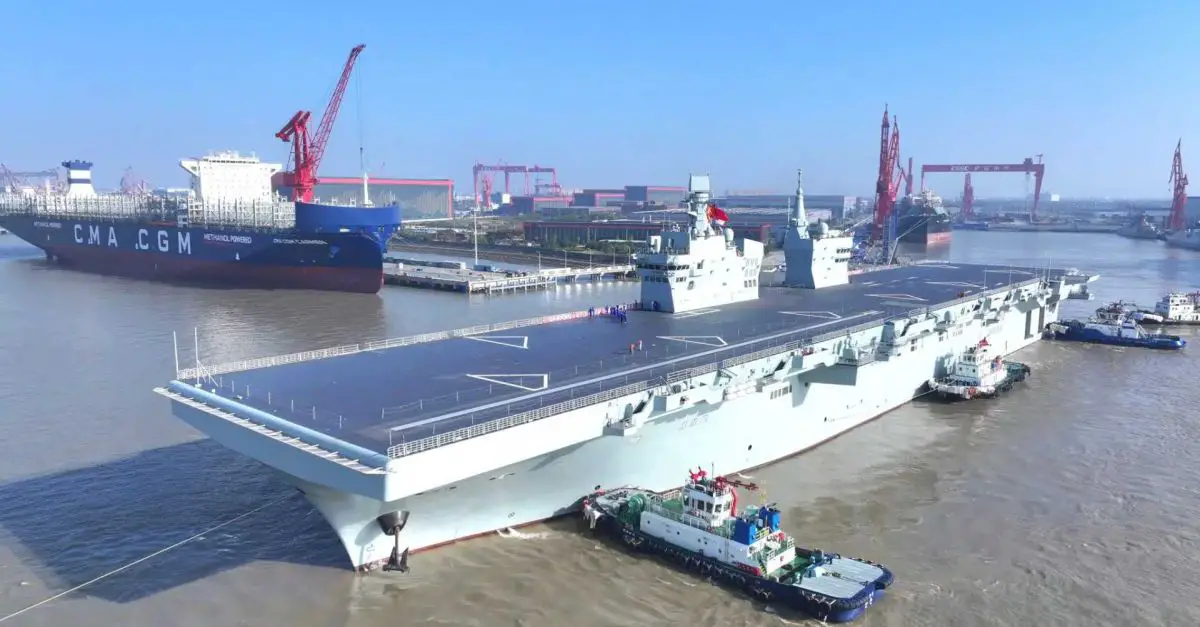

Type 076 amphibious assault ship.

Technical Data

• Armament

  Although the Type 076 is optimized primarily for expeditionary assault and aviation operations rather than fleet air defense, it carries one of the most comprehensive self-protection suites yet installed on a Chinese amphibious assault ship. Its defensive architecture closely follows the philosophy already adopted on China's latest aircraft carriers and major surface combatants by combining rapid-fire close-in weapons, short-range surface-to-air missiles, electronic warfare systems and soft-kill countermeasures into multiple defensive layers. This configuration is intended to protect the ship against anti-ship cruise missiles, loitering munitions, helicopters, fixed-wing aircraft, unmanned aerial systems and torpedoes while operating within a carrier strike group or as the centerpiece of an amphibious task force.

  The principal hard-kill defensive armament consists of three H/PJ-11 Type 1130 close-in weapon systems (CIWS). Each mounting incorporates eleven 30 mm barrels and provides an extremely high rate of fire of 10,000 to 11,000 rounds per minute for terminal interception of incoming anti-ship missiles, aircraft, and unmanned aerial vehicles reaching speeds of up to Mach 4. These gun systems are distributed around the ship to maximize firing coverage over the flight deck and surrounding sectors, for an effective firing range of approximately 3 to 4 kilometers. Medium-range defense is provided by three HHQ-10 short-range surface-to-air missile (SAM) launchers, each carrying twenty-four ready-to-fire missiles. The HHQ-10 uses passive infrared and anti-radiation homing to engage threats at ranges of up to 9 km, providing the ship with an additional interception layer beyond the gun systems.

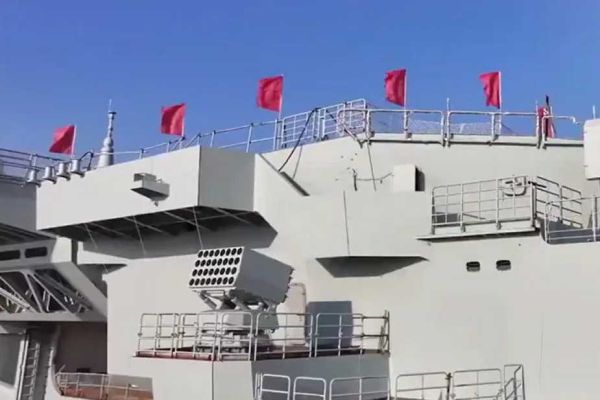

  The soft-kill protection system further increases the Type 076's survivability. Four Type 726 twenty-four-barrel countermeasure launchers are installed around the vessel and can deploy infrared flares, radar-reflecting chaff, anti-torpedo acoustic decoys and high-explosive mortar rounds depending on the nature of the threat. These launchers are integrated with the Type 726 electronic warfare suite, which includes radar intercept receivers, electronic support measures, direction-finding equipment and radar jamming systems designed to detect, identify and disrupt hostile sensors and missile seekers before interception becomes necessary. An NBC water wash-down system is also installed to maintain operational capability following chemical, biological or radiological contamination.

  Situational awareness is provided by integrated dual-face rotating radar arrays mounted on both superstructures. The forward mast houses the principal air-search radar together with the navigation bridge, while the aft island carries additional electronic support measures, communications equipment and aviation control systems. This distributed sensor arrangement complements the ship's twin-island configuration by separating ship navigation from aviation command while ensuring continuous radar coverage during simultaneous flight and amphibious operations.

• Design

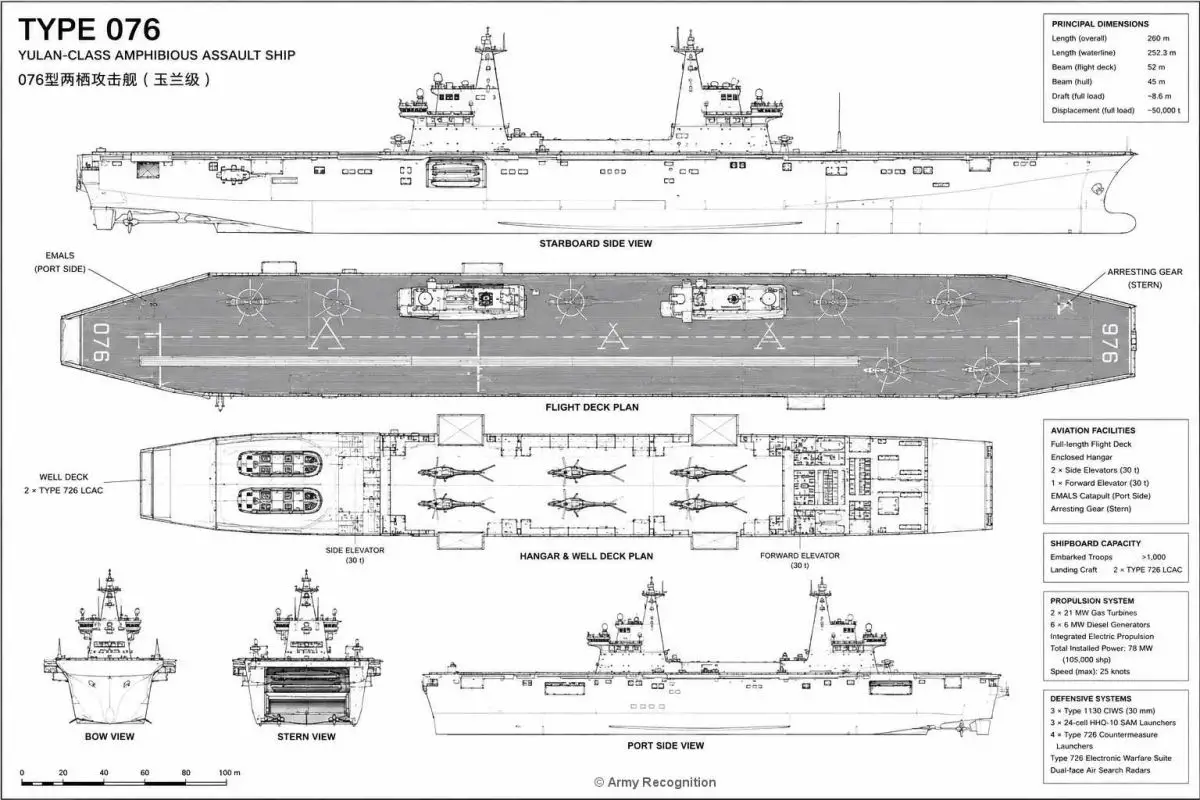

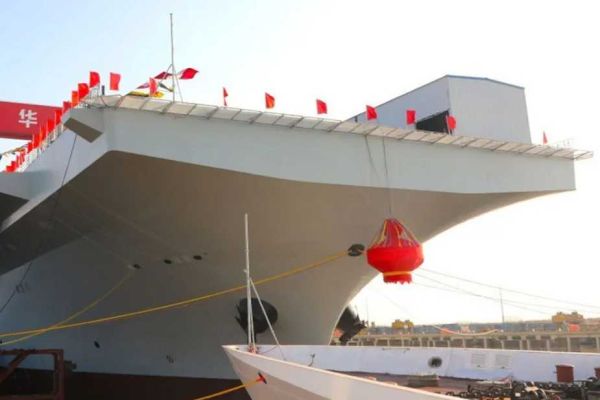

  The Type 076 represents the most significant redesign of a Chinese amphibious assault ship since the introduction of the Type 075. Rather than simply enlarging the previous design, Chinese engineers developed an entirely new hybrid amphibious assault carrier optimized around integrated electric propulsion, carrier-style aviation and unmanned aircraft operations. The Sichuan measures 252.3 meters in hull length, reaches nearly 260 meters overall and has a beam of 45 meters across the hull that expands to 52 meters at flight deck level. Full-load displacement is estimated at 50,000 tons, making the vessel between 14,000 and 15,000 tons heavier than the Type 075 and placing it among the largest amphibious assault ships currently in service or under construction worldwide.

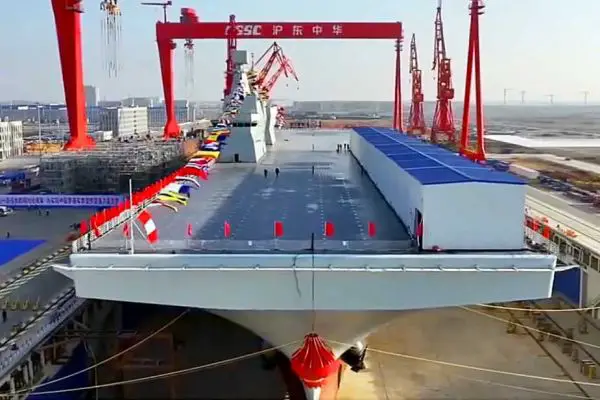

  The hull features a full-length flight deck extending from bow to stern above a large enclosed hangar served by two side-mounted aircraft elevators and an additional forward elevator. Unlike the Type 075, whose elevators are integrated into the flight deck, the side-mounted arrangement reduces interference with aircraft movement during sustained flight operations. Beneath the aviation spaces, the ship retains a floodable stern well deck capable of operating two Type 726 Yuyi-class air-cushion landing craft, while internal vehicle decks accommodate armored vehicles, amphibious assault vehicles and more than 1,000 embarked marines. This arrangement enables the vessel to conduct aviation and amphibious operations simultaneously.

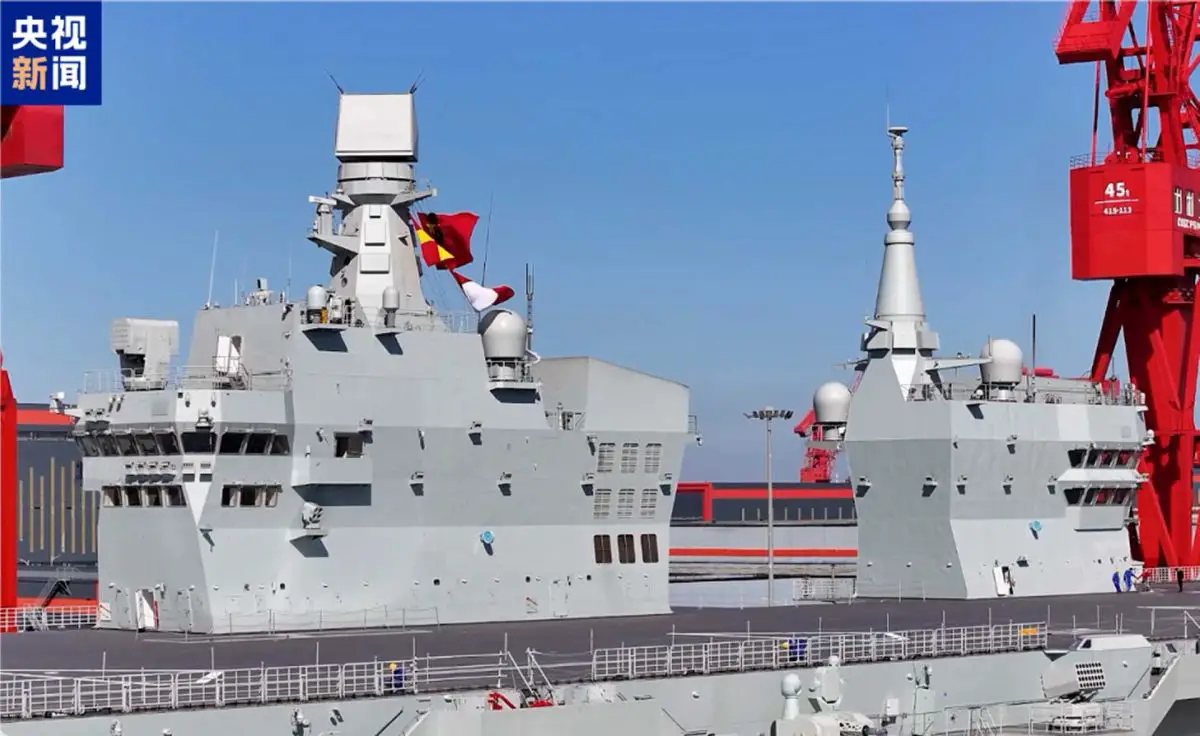

  Perhaps the most distinctive design feature is the twin-island superstructure, an arrangement rarely adopted on amphibious assault ships. The forward island contains the navigation bridge and primary sensor mast, while the aft island accommodates aviation command facilities, communications equipment and additional mission systems. Separating navigation from flight operations improves visibility across the flight deck, increases internal mission space and provides greater redundancy for command functions should one superstructure become unavailable during combat operations.

  Another defining characteristic is the adoption of a CATOBAR aviation configuration incorporating a single electromagnetic aircraft launch system and stern arresting gear. Combined with the expansive flight deck, enclosed hangar and integrated electric propulsion architecture, this design makes the Type 076 the first amphibious assault ship specifically engineered to conduct sustained catapult-assisted unmanned aviation operations while retaining its full amphibious assault capability.

• Propulsion

  The Type 076 is the first Chinese amphibious assault ship designed from the outset around an Integrated Electric Propulsion (IEP) architecture, replacing the conventional diesel propulsion arrangement of the Type 075 with a significantly more powerful electrical generation and distribution system capable of simultaneously supporting propulsion, shipboard systems and carrier-style aviation operations. The propulsion plant combines two 21 MW gas turbines with six 6 MW diesel generators, producing a total installed electrical output of 78 MW, equivalent to approximately 105,000 shp. This power architecture was selected not only to propel a 50,000-ton warship but also to meet the substantial electrical demand generated by the electromagnetic aircraft launch system, making the propulsion system a core element of the ship's overall operational concept rather than simply a means of propulsion.

  Compared with the diesel-powered Type 075, the adoption of gas turbines and integrated electric propulsion fundamentally changes both the internal arrangement and operating characteristics of the vessel. The gas turbines require separate exhaust trunks, resulting in the distinctive twin-island superstructure, while the integrated electrical network distributes power according to operational requirements instead of relying solely on mechanical transmission. This arrangement provides the flexibility needed to simultaneously sustain propulsion, radar operation, combat systems, aviation maintenance, aircraft elevators, arresting gear and electromagnetic catapult launches without compromising ship performance. The available electrical reserve also provides greater growth potential for future sensors, electronic warfare systems and directed-energy technologies should they be introduced during the ship's service life.

  Official performance data remain limited, but the Type 076 is reported to achieve a maximum speed of 25 knots (46.3 km/h), providing sufficient wind-over-deck for helicopter operations and catapult-assisted fixed-wing launches while allowing the ship to operate alongside modern PLAN carrier and amphibious task groups. No official operational range, cruising speed or endurance figures have been released in the source material. Nevertheless, the combination of a 50,000-ton displacement, integrated electric propulsion and gas-turbine power generation indicates that the ship was designed for sustained blue-water deployments and long-duration expeditionary operations rather than regional coastal missions.

  Perhaps the most important contribution of the propulsion system is its ability to support the ship's electromagnetic aircraft launch system (EMALS). Unlike steam catapults, which rely on pressurized steam generated by dedicated boilers, the Type 076 uses linear electromagnetic motors powered directly by the ship's integrated electrical network. This enables launch energy to be precisely adjusted according to aircraft weight, reducing structural stress on airframes while allowing aircraft to depart with larger fuel loads, heavier sensor suites or greater weapon payloads. The same technology also permits higher launch efficiency, shorter preparation times and improved sortie generation compared with traditional steam-powered launch systems. The integration of EMALS with a 78 MW propulsion architecture therefore transforms the Type 076 from a conventional helicopter assault ship into a hybrid amphibious assault carrier capable of supporting sustained CATOBAR operations by fixed-wing unmanned aircraft.

• Onboard equipment

  The Type 076 incorporates the most advanced aviation support infrastructure yet installed on a Chinese amphibious assault ship, reflecting its role as a hybrid between a landing helicopter dock and a CATOBAR aviation ship. The large enclosed hangar is connected to the flight deck by two side-mounted aircraft elevators and an additional forward elevator, allowing aircraft to be moved efficiently without disrupting ongoing launch and recovery operations. Aviation support spaces, maintenance workshops, ammunition handling systems and fuel storage facilities are integrated throughout the ship to sustain prolonged flight operations during expeditionary deployments.

  The aviation facilities are centered on the ship's electromagnetic launch and recovery infrastructure, enabling repeated CATOBAR flight operations by fixed-wing aircraft. Unlike previous Chinese amphibious assault ships designed exclusively for helicopters, this configuration allows the vessel to support sustained launch-and-recovery cycles by carrier-capable unmanned aircraft while maintaining continuous rotary-wing operations.

  The ship's sensor and command architecture supports both combat operations and complex aviation activities. Dual-face rotating air-search radar arrays installed on the forward and aft islands provide aerial surveillance, maritime situational awareness and aircraft control, while integrated communications and mission-management systems coordinate simultaneous flight and amphibious operations. Defensive sensors, electronic warfare equipment and soft-kill countermeasure systems complement this architecture by improving survivability in contested environments.

  Beyond its aviation facilities, the Type 076 retains the command, transport and logistical capabilities expected of a modern amphibious assault ship. Internal vehicle decks accommodate armored vehicles, amphibious assault vehicles and supporting equipment, while cargo handling systems, maintenance areas and mission support spaces enable prolonged expeditionary deployments. The combination of aviation, transport and command facilities allows the ship to function as the centerpiece of an expeditionary task group capable of coordinating amphibious assault, airborne reconnaissance, electronic warfare and precision-strike support from a single vessel.

• Flight capabilities

  The Type 076 was designed around an aviation concept that significantly expands the operational role of an amphibious assault ship beyond traditional helicopter-borne assaults. Its aviation facilities enable the simultaneous operation of helicopters, catapult-launched unmanned aircraft and amphibious forces from a single vessel, allowing aviation missions to continue alongside conventional landing operations. This configuration effectively combines the functions of a landing helicopter dock, helicopter carrier and unmanned aviation carrier within one expeditionary warship.

  The rotary-wing air group is expected to include virtually the entire inventory of PLAN naval helicopters. Aircraft identified for operation from the class include the Changhe Z-8 heavy transport helicopter, Z-10 attack helicopter, Z-18 family, Harbin Z-9, Z-20 medium utility helicopter and the future Z-21. Development imagery has also shown mock-ups of Ka-28 and Ka-31 helicopters, indicating that anti-submarine warfare, airborne early warning, troop transport, logistics, search-and-rescue and assault support missions are all intended to be conducted from the ship. The large hangar and flight deck allow multiple helicopter types to be embarked, maintained and operated simultaneously during expeditionary missions.

  The defining element of the Type 076's aviation capability is its ability to operate fixed-wing unmanned aircraft using carrier-style launch and recovery procedures. Current assessments identify the GJ-21 carrier-capable stealth unmanned combat aerial vehicle as the principal aircraft intended for the class, together with the GJ-11 flying-wing UCAV, WZ-7 high-altitude reconnaissance drone and future carrier-capable unmanned systems. During development, a navalized GJ-21 mock-up was observed aboard the lead ship during sea trials, while official computer-generated imagery has depicted multiple GJ-21 aircraft operating from the flight deck. These aircraft substantially expand the ship's ability to conduct long-endurance intelligence, surveillance, reconnaissance, electronic warfare and precision-strike missions far beyond the range achievable by rotary-wing aircraft.

  The available flight deck and launch-and-recovery infrastructure also provide sufficient capacity to support selected crewed fixed-wing aircraft. Aircraft identified as potential future users include the Shenyang J-35 stealth fighter and the Xian KJ-600 carrier-based airborne early warning aircraft, although neither has yet been demonstrated operating from the ship during the current test program. Available evidence indicates that the primary operational focus remains fixed-wing unmanned aviation rather than conventional fighter operations, with helicopters continuing to provide troop transport, vertical assault, anti-submarine warfare, logistics and search-and-rescue support.

On the Type 076, the forward island primarily supports navigation and ship control, while the aft island is dedicated to aviation management and flight operations.
