2S19 Msta-S 152mm self-propelled gun howitzer


a
2S19 Msta-S self-propelled howitzer gun technical data sheet specifications information description pictures photos images identification intelligence Russia Russian army tracked armoured vehicle artillery

Description

The 152 mm 2S19 MSTA-S self propelled howitzer is designed to defeat unsheltered and covered manpower, weapons and materiel to division level. The 2S19 was accepted for service with the former Soviet Army in 1989. Initial production was undertaken by the Uraltransmash facility before being transferred to the Sterlitamak Machine Construction Factory in Bashkiriya. First production systems were completed in 1989. This vehicle was developed under the codename MSTA-S from the 1980s at the Uraltransmash facility, as the replacement for the older 152 mm 2S3 and 152 mm 2S5 self-propelled artillery systems. In the Russian Army the 2S19 is normally deployed in batteries of six guns. Each regiment would normally have three batteries to give a total strength of 18 2S19 systems. The 2S19 is also called MSTA-S, with the S standing for Samokhodnyj, or self-propelled.



Variants
2S19M: with new computerised fire control
2S19M1: with a NATO standard 155mm gun.

Technical Data
 Back to top
Armament

The Main armament of 2S19 comprises a long-barreled 152 mm gun, the 2A64, fitted with a fume extractor and a muzzle brake. The 152 mm 2A64 main armament of the 2S19 is manufactured by the Barrikady State Production Association. The 152 mm 2A64 gun fires an HE-FRAG (high-explosive fragmentation) round designated OF-45 to a maximum range of 24.7 km. When the 2S19 is traveling the ordnance is held in position by a traveling lock mounted on the glacis plate. A NSVT machine gun 12,7 mm is mounted to the vehicle commander hatches, which can be remotely controlled, with a searchlight, which can be remotely controlled from under full armor protection.

Design and protection
The hull and turret is of all-welded steel armor construction which provides protection from small arms fire, shell splinters and mines. The chassis of the 2S19 is based on MBT assemblies, with the suspension and running gear from the T-80 MBT and the power pack from the T-72 MBT, but the 2S19 had a distinct exhaust outlet on the left side that is not on the T-80 which is powered by a gas-turbine engine.
Propulsion
The 2S19 is powered by a diesel engine with direct injection and mixed supercharge. It is a high-speed, four-cycle, multi-fuel, liquid-cooled engine. The suspension is of the torsion bar type with six road wheels, idler at the front, drive sprocket at the rear and track-return rollers with the upper part of the track being covered by armor plates.
Accessories
Standard equipment for the 2S19 includes the 1V116 intercom system, R-173 radio set and PPO three-way automatic fire extinguishing system, passive night vision equipment for the driver, NBC filter and ventilation systems and the ability to lay a smoke screen by injecting diesel fuel into the exhaust outlet on the left side of the hull.

Specifications
 Back to top
Armament
One 152 mm gun, one 12.7 mm machine gun
a
a
Producer country
Russia
Country users
Russia (550), Belarus (13), Ukraine (40), Ethiopia (10), Georgia (1), India (?)
Crew

5 soldiers

Accessories
Night vision, NBC protection system,
Armor
The hull and turret is of all-welded steel armour, protection from small arms fire, shell splinters and mines.
Weight

42,000 kg

Speed
60 km/h on road
a
Range
500 km
Dimensions
Length, 7,15 m; Width, 3,38 m; Height, 2,99 m

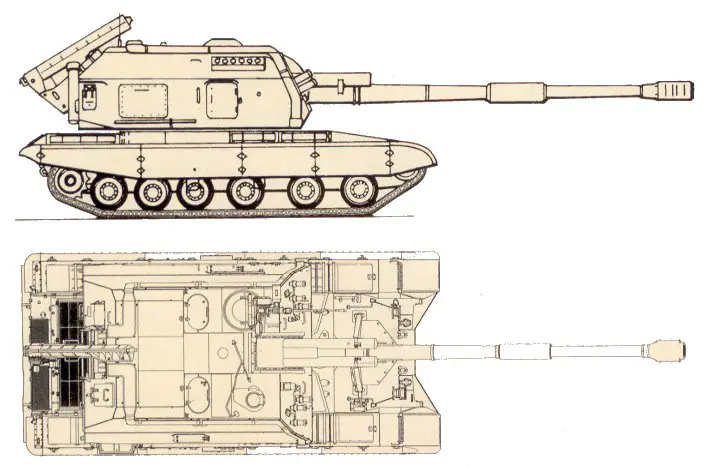

Details View
2S19 Msta-S self-propelled howitzer gun technical data sheet specifications information description pictures photos images identification intelligence Russia Russian army tracked armoured vehicle artillery

2S19 Msta-S self-propelled howitzer gun technical data sheet specifications information description pictures photos images identification intelligence Russia Russian army tracked armoured vehicle artillery
2S19 Msta-S self-propelled howitzer gun technical data sheet specifications information description pictures photos images identification intelligence Russia Russian army tracked armoured vehicle artillery

2S19 Msta-S self-propelled howitzer gun technical data sheet specifications information description pictures photos images identification intelligence Russia Russian army tracked armoured vehicle artillery
2S19 Msta-S self-propelled howitzer gun technical data sheet specifications information description pictures photos images identification intelligence Russia Russian army tracked armoured vehicle artillery

Pictures - Video
 Back to top
a

Video 2S19 MSTA-S 152mm self-propelled howitzer

2S19_msta-s_152mm_self-propelled_howitzer_gun_tracked_armoured_vehicle_Russia_Russian_army_014.jpg
2S19_msta-s_152mm_self-propelled_howitzer_gun_tracked_armoured_vehicle_Russia_Russian_army_015.jpg
2S19_msta-s_152mm_self-propelled_howitzer_gun_tracked_armoured_vehicle_Russia_Russian_army_016.jpg
2S19_msta-s_152mm_self-propelled_howitzer_gun_tracked_armoured_vehicle_Russia_Russian_army_017.jpg
