PCL-09 CS/SH1 122mm self-propelled howitzer


a
PCL-09 CS/SH1 122 wheeled self-propelled howitzer technical data sheet specifications pictures information description intelligence photos images video identification China Chinese army defense industry military technology Norinco

Description

The PCL-09 or CS/SH1 (export name) is a 122 wheeled self-propelled howitzer designed and manufactured by the Chinese Company Norinco. The vehicle was unveiled in the official military magazine of the Chinese army (PLA). The PCL-09 was used for the first the time in 2010 during a joint military exercise of the SCO (Shanghai Cooperation Organization). The PCL-09 is similar to the French Caesar 155 wheeled howitzer, and uses a wheeled truck chassis with a 122mm howitzer mounted at the rear part. This vehicle is already in service in the Chinese armed forces. This wheeled self-propelled howitzer can be ready to fire in less than 90 seconds.


Variants
- No variants.

Technical Data
 Back to top
Armament

A 122mm howitzer is mounted at the rear of 6x6 truck chassis. For its self-protection, a 12.7 mm machine can be mounted to the top crew cabin. Elevation and traverse is hydraulic with manual controls being provided as a back-up. For indirect usual firing elevation ranges from -3° to +70º with traverse being 30 º left and right. The PCL-09 or CS/SH1 can fire at a maximum range of 27 km with a rate of fire of 8rds/min. In firing position, one spade is lowered on each side of the truck chassis to provide a more stable firing platform. The vehicle can carry a total of 40 rounds of ammunition.

Design and protection
The PCL-09 or CS/SH1 is based on a modified 6x6 Chinese truck. A fully enclosed cab is mounted at the front of the vehicle and has individual seats for the crew of five. There is two doors on each side of the crew cabin and one hatch is available at the top right side.
Propulsion
The PCL-09 or CS/SH1 uses a 6x6 chassis with one axle at the front and two axles at the rear. The vehicle can run at a maximum road speed of 85 km/h with a maximum cruising range of 600 km.
Accessories
A spare wheel is fitted at the rear of the crew cabin. Two large individual containers are mounted at the rear of the cabin crew which can probably store ammunitions and accessories.

Specifications
 Back to top
Armament
One 122mm howiter and one 12.7mm machine gun
Country users
China
Designer Country
China
Accessories
Fire-control computer
Crew
5 soldiers
Armor
No armour.
Combat Weight
16,500 kg
Speed
85 km/h maximum road speed
Range
600 km
Dimensions
Length: ? m; Width: ? m; Height: ?m

Details View

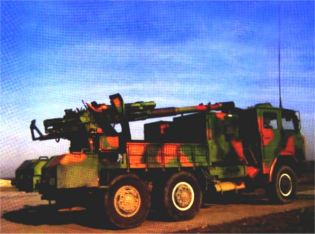

PCL-09 CS/SH1 122 wheeled self-propelled howitzer technical data sheet specifications pictures information description intelligence photos images video identification China Chinese army defense industry military technology Norinco

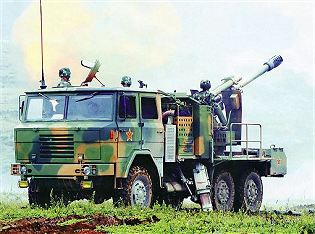

PCL-09 CS/SH1 122 wheeled self-propelled howitzer technical data sheet specifications pictures information description intelligence photos images video identification China Chinese army defense industry military technology Norinco

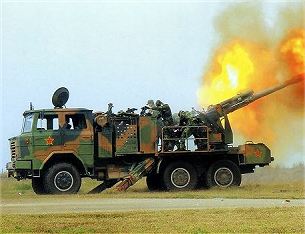

PCL-09 CS/SH1 122 wheeled self-propelled howitzer technical data sheet specifications pictures information description intelligence photos images video identification China Chinese army defense industry military technology Norinco

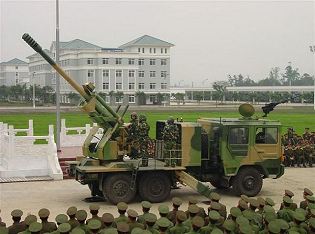

PCL-09 CS/SH1 122 wheeled self-propelled howitzer technical data sheet specifications pictures information description intelligence photos images video identification China Chinese army defense industry military technology Norinco

Pictures - Video
 Back to top


PCL-09_CS_SH1_122mm_wheeled_self-propelled_howitzer_Norinco_China_Chinese_army_defence_industry_001.jpg
PCL-09_CS_SH1_122mm_wheeled_self-propelled_howitzer_Norinco_China_Chinese_army_defence_industry_002.jpg
PCL-09_CS_SH1_122mm_wheeled_self-propelled_howitzer_Norinco_China_Chinese_army_defence_industry_003.jpg
PCL-09_CS_SH1_122mm_wheeled_self-propelled_howitzer_Norinco_China_Chinese_army_defence_industry_004.jpg
PCL-09_CS_SH1_122mm_wheeled_self-propelled_howitzer_Norinco_China_Chinese_army_defence_industry_005.jpg
PCL-09_CS_SH1_122mm_wheeled_self-propelled_howitzer_Norinco_China_Chinese_army_defence_industry_006.jpg
PCL-09_CS_SH1_122mm_wheeled_self-propelled_howitzer_Norinco_China_Chinese_army_defence_industry_007.jpg
PCL-09_CS_SH1_122mm_wheeled_self-propelled_howitzer_Norinco_China_Chinese_army_defence_industry_008.jpg
PCL-09_CS_SH1_122mm_wheeled_self-propelled_howitzer_Norinco_China_Chinese_army_defence_industry_009.jpg
PCL-09_CS_SH1_122mm_wheeled_self-propelled_howitzer_Norinco_China_Chinese_army_defence_industry_010.jpg
